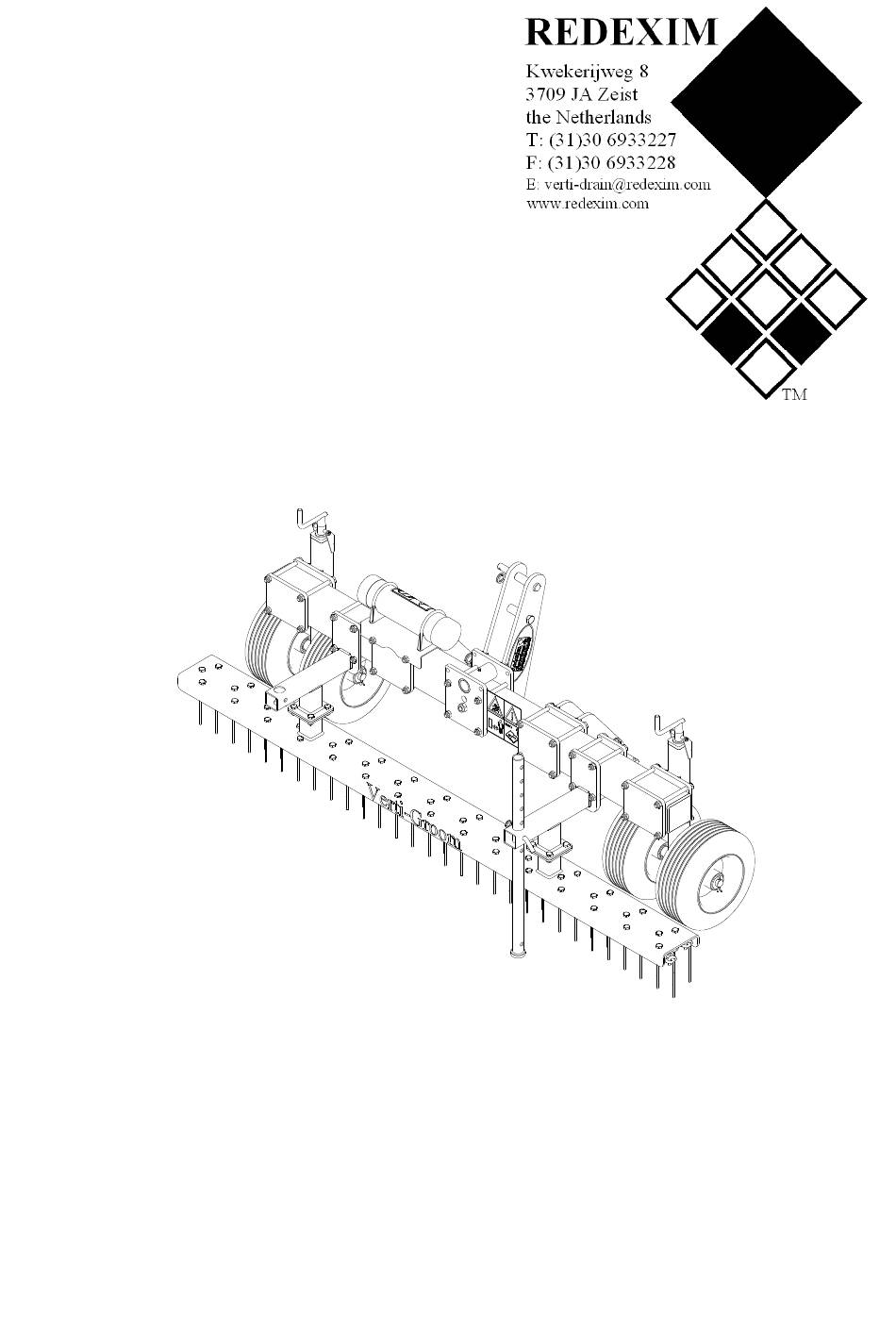

Redexim Verti-Groom 2000 User Manual And Parts Book

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual and parts
handbook
Verti-Groom 2000
Serial number:
Translation of the original operating
instructions
ATTENTION:
TO ENSURE SAFE USE OF THIS MACHINE AND TO BE ABLE TO ACHIEVE THE
BEST RESULTS, IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER
MANUAL THOROUGHLY BEFORE USING THE VERTI-GROOM.
0948 English 962.120.202

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verti-Groom 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Redexim Verti-Groom 2000

Summary of Contents for Redexim Verti-Groom 2000

  • Page 1 User manual and parts handbook Verti-Groom 2000 Serial number: Translation of the original operating instructions ATTENTION: TO ENSURE SAFE USE OF THIS MACHINE AND TO BE ABLE TO ACHIEVE THE BEST RESULTS, IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL THOROUGHLY BEFORE USING THE VERTI-GROOM.

  • Page 2: Guarantee Conditions

    FOREWORD Congratulations on your purchase of the Verti-Groom. To ensure the long and safe use of this Verti-Groom, it is of the utmost importance for all those who will be using it to read and understand this user manual. Operation of this machine is not safe without full knowledge of the contents of the manual. The Verti-Groom is not an independently operating machine.
  • Page 3 SAFETY INSTRUCTIONS The Verti-Groom is designed for safe use. However, this is only possible if the user fully observes the safety instructions given in this manual. Read and understand the manual before (Fig. 1) starting to use the Verti-Groom. If the machine is not used as described in the Fig.
  • Page 4 Before each use, inspect the Verti-Groom for loose bolts/nuts/parts. If present, inspect the hydraulic hoses regularly and replace them if they are damaged or show signs of wear. The replacement hoses must meet the manufacturer’s technical specifications. Always relieve the pressure from the hydraulic installation, if present, before carrying out any work on it.
  • Page 5 (Danger of injury!) Before driving off, make sure you have a clear view both nearby and far away. Safety stickers with the same meaning are present on both sides of the (Figs. 2, 3, 4) Verti-Groom . Ensure these safety stickers are always clearly visible and legible. (Fig.

  • Page 6: Eu Declaration

    EU DECLARATION Redexim BV Utrechtseweg 127 3702 AC Zeist, Holland declare – entirely on its own responsibility – that the product: VERTI-GROOM WITH MACHINE NUMBER AS INDICATED ON THE MACHINE AND IN THIS MANUAL, to which this declaration relates is according to the stipulation of the 2006/42/EC directive for machines.

  • Page 7: Table Of Contents

    CONTENTS GUARANTEE CONDITIONS ..................2 REGISTRATION CARD ..................... 2 EU DECLARATION ....................6 TECHNICAL DATA ..................8 GENERAL DESCRIPTION................8 FIRST INSTALLATION, REMOVING THE MACHINE FROM THE PALLET . 9 CONNECTING TO THE TRACTOR .............. 10 ADJUSTING THE WORKING DEPTH ............11 TRANSPORTATION OF THE VERTI-GROOM..........

  • Page 8: Technical Data

    TECHNICAL DATA Model 2000 Working width 2,045 m (76.7”) Working depth 0-35 mm (0”-1.38”) Driving speed Max. 12 km/h (7.5 mph) Weight 157 kg (346 lbs) Including a optional brush: 245 kg (540 lbs) Recommended tractor 18 HP with minimum lifting capacity of 200 kg (441 lbs) Including a optional brush: 18 HP with minimum lifting capacity of 300 kg...

  • Page 9: First Installation, Removing The Machine From The Pallet

    FIRST INSTALLATION, REMOVING THE MACHINE FROM THE PALLET Fig. 6 The machine is standing vertically on the pallet. To remove the pallet and lay the machine horizontally on the ground, proceed as follows (see Fig. 6) !! NEVER NOT CRAWL UNDER THE MACHINE !! 1.

  • Page 10: Connecting To The Tractor

    CONNECTING TO THE TRACTOR Inspection procedure before starting to connect the Verti-Groom. − Visually inspect the Verti-Groom for signs of damage and repair them if they endanger the safe operation of the machine. − Make sure that all nuts and bolts are properly tightened. −...

  • Page 11: Adjusting The Working Depth

    ADJUSTING THE WORKING DEPTH Adjust the working depth by turning the spindles 4 on the front of the machine, to adjust (Fig. 8) the running wheels. Set both sides of the machine to the same height so the field will be cleaned as evenly as possible.

  • Page 12: Starting/Stopping Procedure

    STARTING/STOPPING PROCEDURE The starting procedure is VERY important. If this procedure is not followed exactly as described below, serious damage may occur to the ground underneath the machine. The starting procedure is as follows: 1. Check the Verti-Groom thoroughly for loose parts and make sure all parts function properly. !! If parts are found that are loose or do not function properly, correct the situation before using the Verti-Groom!! 2.

  • Page 13: Disconnecting The Verti-Groom

    10.0 DISCONNECTING THE VERTI-GROOM Fig. 9 The machine can be disconnected from the tractor as follows (see Fig 9) 1. Drive the Verti-Groom to its storage place, which must have a stable and flat ground. !! Ensure that the tractor is well blocked and cannot start moving by itself !! !! Switch the tractor off before dismounting !! 2.

  • Page 14: Maintenance

    12.0 MAINTENANCE Time schedule Check point/lubricating Method point Before each use Check for loose bolts/nuts. Tighten the loose bolts/nuts to the correct torque. Presence and legibility of safety Replace if damaged or missing. stickers (Fig. 5). 13.0 OPTION: VERTI-GROOM LIGHT RAKE PIN SECTION If the pin section is too forceful for the treatment, you can mount a lighter pin section with 3mm pins.
