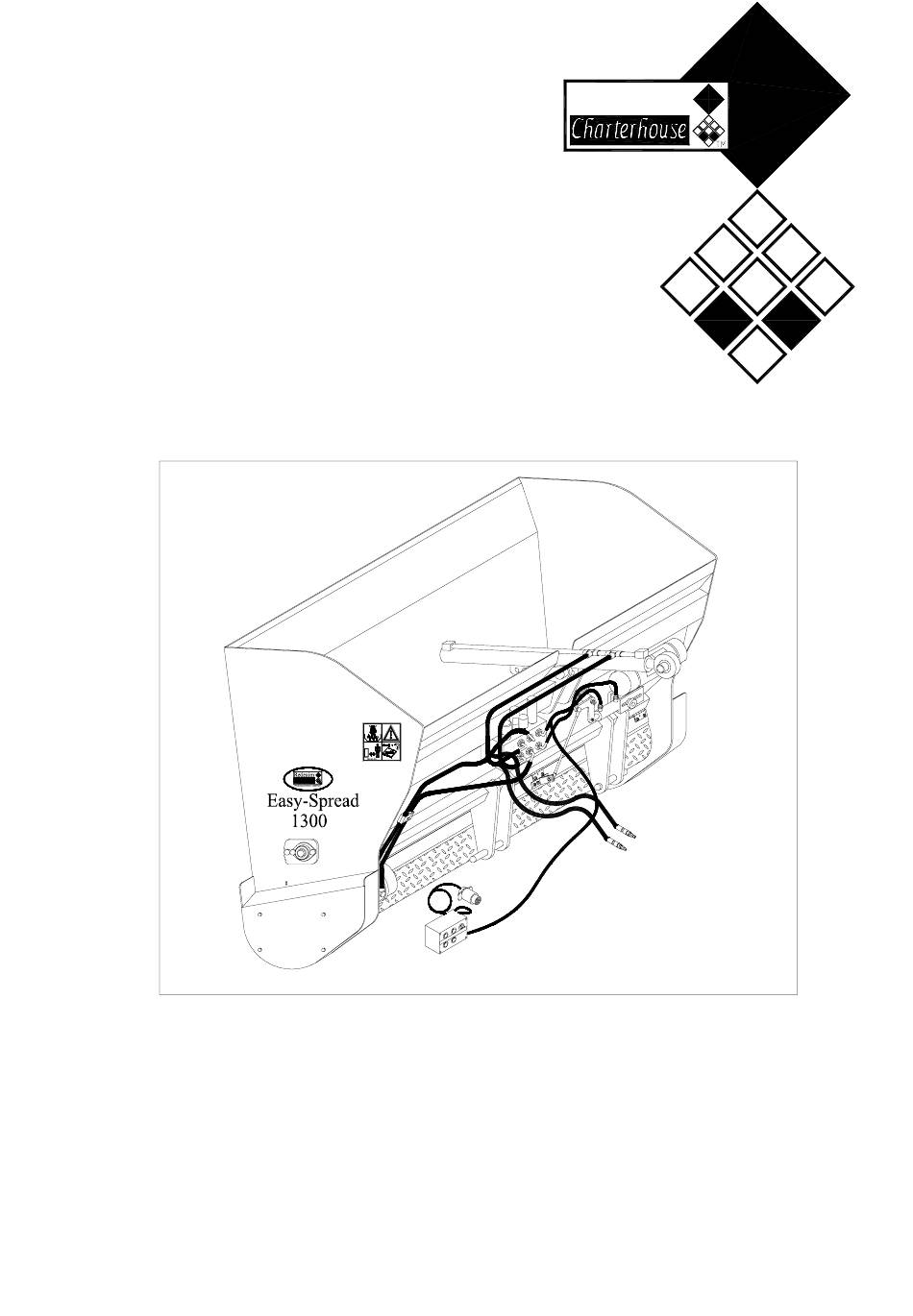

USER'S MANUAL
AND PARTS LIST
Easy Spread
Model 1300/1600
Serial number:
CAUTION!
FOR SAFE AND OPTIMUM USE CAREFULLY READ THIS USER'S
MANUAL BEFORE PUTTING THE MACHINE INTO OPERATION.
Manual code: 931.120.201, June 2004
Redexim
REDEXIM BV
INTERNATIONAL TRADING
KWEKERIJWEG 8
3709 JA ZEIST HOLLAND
TEL (31) 30 6933227
FAX (31) 30 6933228
VERTI-DRAIN@REDEXIM.COM
WWW.REDEXIM.COM
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Easy Spread 1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redexim Easy Spread 1300

Summary of Contents for Redexim Easy Spread 1300

  • Page 1 USER'S MANUAL Redexim AND PARTS LIST REDEXIM BV INTERNATIONAL TRADING KWEKERIJWEG 8 3709 JA ZEIST HOLLAND Easy Spread TEL (31) 30 6933227 FAX (31) 30 6933228 VERTI-DRAIN@REDEXIM.COM Model 1300/1600 WWW.REDEXIM.COM Serial number: CAUTION! FOR SAFE AND OPTIMUM USE CAREFULLY READ THIS USER'S MANUAL BEFORE PUTTING THE MACHINE INTO OPERATION.

  • Page 2: Foreword

    FOREWORD Congratulations with the purchase of your Easy Spread. For a safe and long-lasting operation of this Easy Spread it is required to (have) read and understand this user's manual. Without full knowledge of the content operation of this machine is not safe. The Easy Spread is not a stand-alone machine.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS The Easy Spread was designed for safe use. However, this is only possible if the user completely follows the safety instructions given in this manual. Read and understand the manual before (Fig. 1) starting to work with the Easy Spread. If the machine is not used as described in the manual, personal injury and/or damage to the Easy Spread Fig.
  • Page 4 Before carrying out maintenance, adjustment and repair activities, always switch off the tractor motor and remove the tractor key from the ignition (Fig. 2). Fig. 2 Lock the Easy Spread against sinking and against driving/shoving away. NEVER dismount from the tractor when the motor is still running. For maintenance or repairs only use original Easy Spread parts.
  • Page 5 During operation no persons must be in the danger area of the Easy Spread, because there is a risk of personal injury by rotating parts and objects flying about. Remain at least 4 metres away! (Fig. 4) Fig. 4 Be aware of the permitted coupling load of the tractor. Wear suitable clothing.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Contents Page Foreword ..................Warrantee conditions ..............Registration card ................. Safety instructions............... 1.0 Brief description ..............2.0 Technical data............... 3.0 First installation, removing the machine from the pallet... 4.0 Operation................4.1 To check before each use ........4.2 Connecting to the tractor .........

  • Page 7: Brief Description

    The spreading density and/or the spreading quantity can be regulated on the basis of the driving speed, the speed of the spreading drum and the position of the dosing valve. 2.0 TECHNICAL DATA Model Easy Spread 1300 Easy Spread 1600 Dimensions Length 0.78 m...

  • Page 8: First Installation, Removing The Machine From The Pallet

    FIRST INSTALLATION, REMOVING THE MACHINE FROM THE PALLET Fig. 6 Fig. 7 The machine is standing vertically on the pallet. To remove the machine from the pallet and place it horizontally on the ground, proceed as follows (see Fig. 6 and Fig. 7): 1.

  • Page 9: Operation

    4.0 OPERATION 4.1 TO CHECK BEFORE EACH USE Check the Easy Spread for visible damage and carry out necessary repairs for safety reasons. Check the bolts/nuts. Check the hydraulic components for leaks/damage. Check the electrical system for damage. 4.2 CONNECTING TO THE TRACTOR The Easy Spread can be connected to the tractor using the standard CAT 1/2 three-point attachment.
  • Page 10 Fig. 8 Fig. 9 Fig. 10...

  • Page 11: Loading The Easy Spread

    4.3 LOADING THE EASY SPREAD The procedure for loading the Easy Spread is as follows: 1. See to it that the Easy Spread is lying in a horizontal position: a. Activate the hydraulic output of the tractor. b. Press button 3 on the switch box (see Fig. 10) (the cylinder slides out). 2.

  • Page 12: Spreading

    4.5 SPREADING *!! Before using the Easy Spread, carefully check all parts for proper functioning, for hydraulic leaks, for damage of the electrical part and for the presence of all protective covers and safety provisions. Any problems should be resolved before using the Easy Spread !! Starting procedure 1.

  • Page 13: Unhooking The Tractor

    4.8 UNHOOKING THE TRACTOR Unhook the tractor as follows: 1. See to it that the Easy Spread is lying in a horizontal position: a. Activate the hydraulic output of the tractor. b. Press button 3 on the switch box (see Fig. 13) (the cylinder slides out). 2.

  • Page 14: Problem Analysis

    5.0 PROBLEM ANALYSIS Problem Possible cause Solution Valve does not close Object between valve. Remove object. when in operation Return pressure too high -Provide a pressure-free return. -Reduce the tractor speed to stationary while closing the valve. -Increase the closing pressure of the valve by screwing in the setting screw (see 5.1) Too little oil supply from...

  • Page 15: Increasing The Closing Pressure Of The Valve

    5.1 INCREASING THE CLOSING PRESSURE OF THE VALVE *!! CAUTION Only apply when all the other solutions for closing the valve are not successful!! *!! When applied incorrectly, this solution may cause the valve mechanism to get crooked!! A possible problem for the valve not to close can be caused by the return pressure built up by the hydraulic system of the tractor.

  • Page 16: Maintenance

    6.0 MAINTENANCE Commissioning -Check the bolts/nuts. -Check the hydraulic system for leaks/damage. -Check the electrical system for damage. -Take a close look at the machine to see if there is any othe After the first 20 hours of operation -Check the bolts/nuts. -Check the tension of the drive chain of the spreading (new or repaired) drum/mixing shaft.

  • Page 17: Ordering Replacement Parts

    - Machine model - Chassis and/or serial number Serial no. - Year of construction Year - Part number from the relevant parts list REDEXIM BV - Name International trading Weight Kgs Utrechtseweg 127 - Order number 3702 AC Zeist Holland Tel.: (31) 30-6920196 Fax: 6919042...

  • Page 18: Eu Declaration Of Conformity

    8.0 EU DECLARATION OF CONFORMITY We, Redexim, Utrechtseweg 127, 3702 AC Zeist, The Netherlands, declare entirely on our own responsibility that the product Easy Spread MODEL 1300/1600, WITH MACHINE NUMBER AS INDICATED ON THE MACHINE AND IN THIS MANUAL, to which this declaration applies is in conformity with the standards NEN-EN-ISO 12100-1, NEN-EN-ISO 12100-2 and NEN-EN 294 in accordance with the stipulations of the machine directive 98/37/CE.

This manual is also suitable for:

Easy spread 1600
