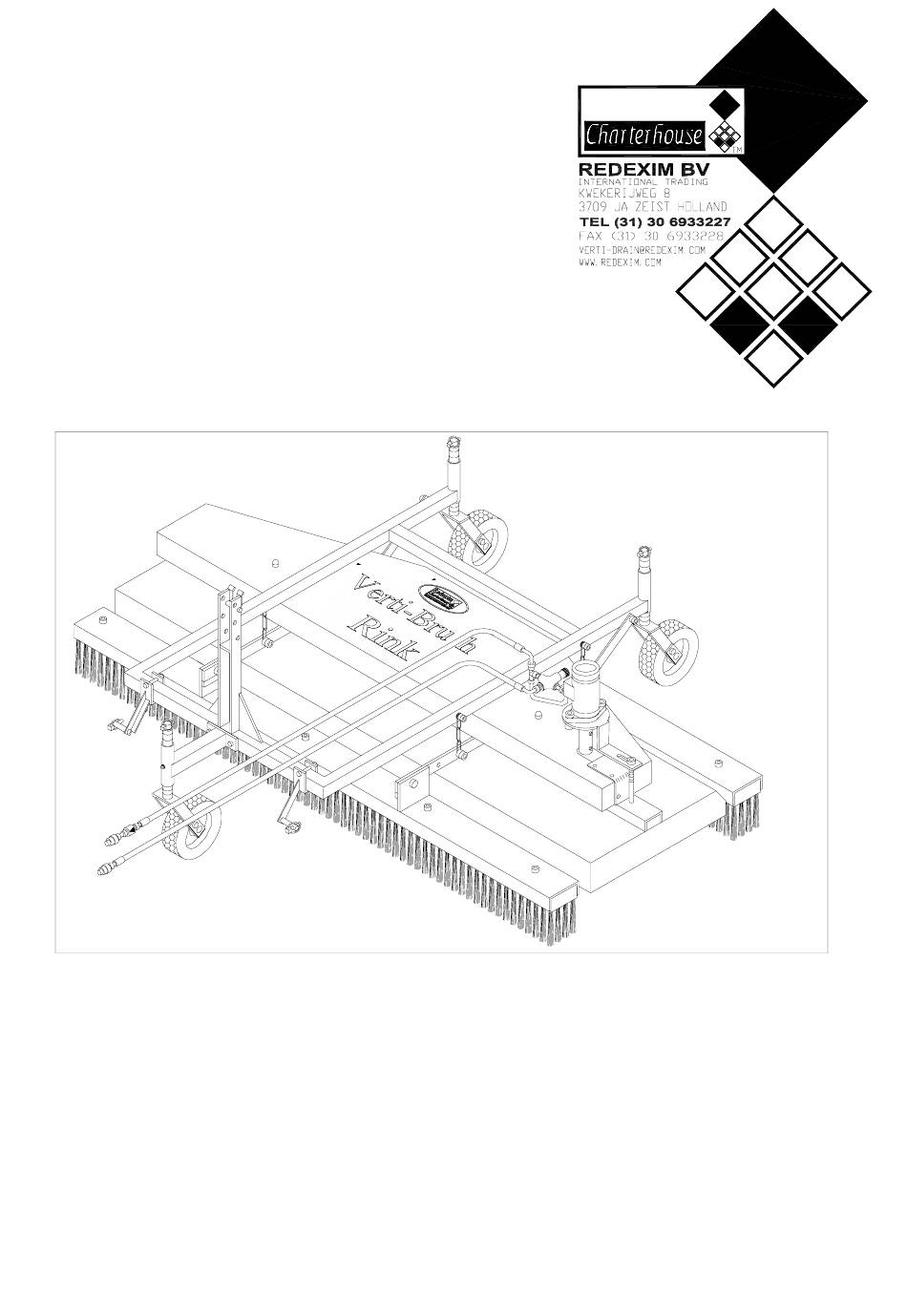

Operating Instructions
and Spare parts list

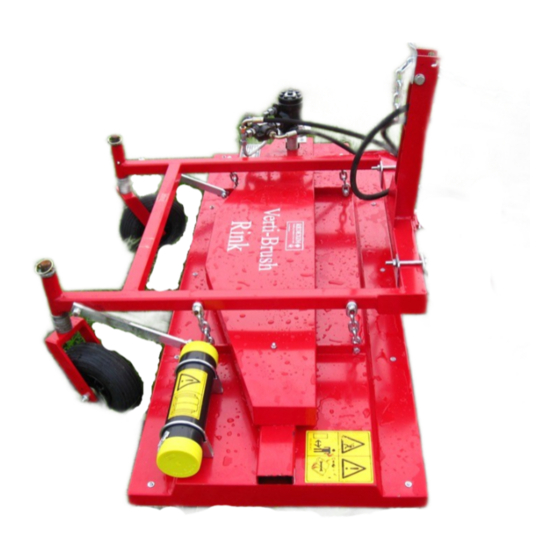

Verti-Brush
Model 1500
Serial number:
PLEASE NOTE:
TO ENSURE SAFE OPERATION OF THE MACHINE AND FOR
BEST RESULTS IT IS ESSENTIAL TO READ THESE
OPERATING INSTRUCTIONS CAREFULLY BEFORE USING
THE VERTI-BRUSH
Instruction code: 942.120.200, Oct. 2005
®
®
.
Redexim
EN
Advertisement
Table of Contents
Related Manuals for Redexim Verti-Brush 1500
Summary of Contents for Redexim Verti-Brush 1500
- Page 1 Operating Instructions Redexim and Spare parts list ® Verti-Brush Model 1500 Serial number: PLEASE NOTE: TO ENSURE SAFE OPERATION OF THE MACHINE AND FOR BEST RESULTS IT IS ESSENTIAL TO READ THESE OPERATING INSTRUCTIONS CAREFULLY BEFORE USING ® THE VERTI-BRUSH...
- Page 2 T A B L E OF C O N T E N T S Contents Page Safety regulations ............... Short description ................ Technical data ................Operation ..................*Attaching and detaching............. * Brushing ..................Care and Maintenance ................* Greasing machine (after every 50 hours of operation) ....
- Page 3 !!! SAFETY REGULATIONS !!! The Verti- Brush has been exclusively designed to brush in fine-grained, loose grit such as fine or coarse sand or similar materials. In addition there is the option of brushing up the sward without grit. Any other use than the ones listed above is regarded as not being its intended use. The manufacturer shall not be liable for any damage resulting hereof, the risk remains solely with the user.
- Page 4 SHORT DESCRIPTION The Verti- Brush has been designed to brush in fine-grained, loose grit such as fine or coarse sand, or similar. The rotating brush segments are driven by a hydraulic motor. The hydraulic motor speed for the brush segments is continually adjustable via a flow regulator.
- Page 5 OPRATION Attaching and detaching - Attach machine to towing vehicle. Position lower drag rod retainer (9) to fit towing vehicle. If required, fit castor wheel (10). Note attachment variations 1. Retainer at the bottom of the lower pull rod (9) of the towing vehicle Retainer at the top a) fixed by means of fixed upper drag rod (15) b) flexible by means of upper drag rod chain (16)
- Page 6 OPERATION Attaching and detaching - Make hydraulic connection (11,12): The return line (12) contains a non-return valve (13) to prevent incorrect connection. Oil circulation is required. The hydraulic system is filled with CG 46 bio-hydraulic fluid by the manufacturer. Run hydraulic hoses in such a way that they do not drag on the floor and/or chafe against the towing vehicle.
- Page 7 CARE AND MAINTENANCE Tension chain (after every 15 hours of operation) - Loosen set screw (18). - Push chain tensioner (19) in the direction of the arrow, until the chain is tightly tensioned. - Retighten set screw (18). See figure 1, page 5...
