Redexim Verti-Air Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

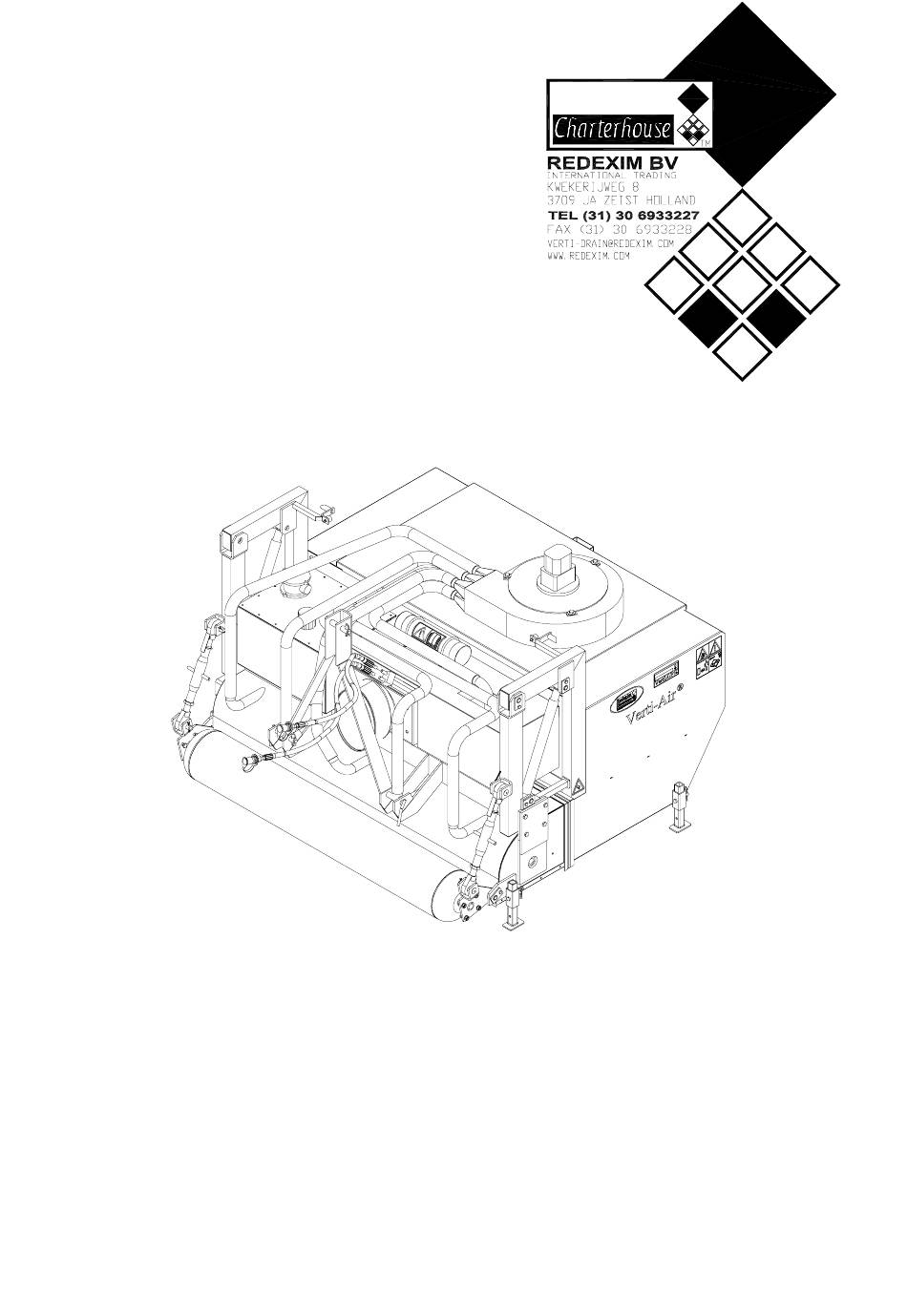

User manual and parts
handbook
Verti-Air
Serial number:
ATTENTION:
TO ENSURE SAFE USE OF THIS MACHINE AND TO BE ABLE TO ACHIEVE THE
BEST RESULTS, IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER
MANUAL THOROUGHLY BEFORE USING THE VERTI-AIR.
Manual code: 945,120,202, June 2005
Redexim
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verti-Air and is the answer not in the manual?

Questions and answers

Related Manuals for Redexim Verti-Air

Summary of Contents for Redexim Verti-Air

  • Page 1 Serial number: ATTENTION: TO ENSURE SAFE USE OF THIS MACHINE AND TO BE ABLE TO ACHIEVE THE BEST RESULTS, IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL THOROUGHLY BEFORE USING THE VERTI-AIR. Manual code: 945,120,202, June 2005 English...

  • Page 2: Foreword

    FOREWORD Congratulations on your purchase of the Verti-Air. To ensure the long and safe use of this Verti-Air, it is of the utmost importance for all those who will be using it to read and understand this user manual. Operation of this machine is not safe without full knowledge of the content of the manual.

  • Page 3: Safety Instructions

    In addition, user’s instructions must be prepared. Before using the Verti-Air, the user is obliged to inspect it for visible damage and defects. Any changes in the Verti-Air (including its functioning) that may affect its safety must be corrected immediately.
  • Page 4 If any modifications have been made to the Verti-Air, the present CE certificate becomes null and void and the person who made the modifications should himself make sure a new CE certificate is granted. Before each use, inspect the Verti-Air for loose bolts/nuts/parts.
  • Page 5 For use on public roads the relevant traffic rules also apply. Transporting persons is not permitted! Do not use the Verti-Air when it is dark, during heavy rain/ storms, or on slopes with a gradient greater than 20 degrees. Before starting to work, all persons who will operate the Verti-Air must be familiar with all its functions and controls.
  • Page 6 Be aware of the maximum lifting capacity of the towing vehicle. Wear suitable clothing. Wear sturdy shoes with a steel tip, wear long trousers, do up long hair and wear no loose clothing. Fig. 7 (7) Location of safety stickers (Fig.

  • Page 7: Table Of Contents

    Length of the PTO Operation of the PTO PTO information and maintenance Connecting to the tractor Adjusting the working depth Set up the shaking sieve frequence Transportation of the Verti-Air Driving speed 10.0 Operation of the Verti-Air 11.0 Start/stop procedure 12.0...

  • Page 8: Technical Data

    TECHNICAL DATA Model Verti-Air Working width 1.60 m (63”) 0 mm - 26 mm (0”-1.02”) Working depth (with new brush) Driving speed Max. 12 km/h (7.5 mph) Weight 550 kg (1212 lbs) Recommended tractor 35HP with minimum lifting capacity of 700 kg...

  • Page 9: First Installation, Remove The Machine Of The Pallet

    *Use the right tractor; look at specifications 3. * !! Switch off the tractor and make sure the tractor is properly blocked and cannot start moving by itself !! 4. Adapt the PTO-length to the Verti-Air/tractor combination. (see section 4.0)

  • Page 10: General Parts List

    GENERAL PARTS LIST Figure 9 shows some important parts: Fig. 9 Safety sticker 900.280.402: read user manual before use/toolbox. Safety sticker 933.280.402: keep a distance of at least 4 metres from the machine. Stop the engine before carrying out repairs or adjustments. Be careful of flying debris.

  • Page 11: The Pto

    2. * !! Switch off the tractor and make sure the tractor is properly blocked and cannot start moving by itself !! 3. Lower the Verti-Air to the ground until the front and rear rollers just touch the ground. 4. Measure the distance between the PTO connection of the tractor and that of the Verti-Air, from one furrow to the next.

  • Page 12: Operation Of The Pto

    OPERATION OF THE PTO To ensure correct operation of the PTO, check the following items: 1. During operation of the Verti-Air, the angle between the points of rotation may not exceed 30 degrees. 2. The rotating points should be aligned.

  • Page 13: Connecting To The Tractor

    CONNECTING TO THE TRACTOR Inspection procedure before connection of the Verti-Air: − Visually inspect the Verti-Air for signs of damage and repair these if they endanger a safe operation of the machine. − Make sure that all nuts and bolts are properly tightened.

  • Page 14: Adjusting The Working Depth

    The user is responsible for the transport of the Verti-Air behind the tractor when travelling on public roads. Check the national traffic rules. In view of the weight of the Verti-Air, a maximum speed of 20 km/h (12.4 mph) should be observed while driving in open fields with the machine raised.

  • Page 15: Driving Speed

    10.0 OPERATION OF THE VERTI-AIR Before the Verti-Air is used in the field, the following should be checked: Are there any loose objects in the field? Remove these first. Are there any slopes? The maximum slope this machine can work on is 20 degrees.

  • Page 16: Start/Stop Procedure

    The start procedure is as follows: 1. Check the Verti-Air thoroughly for lose parts and make sure all parts function properly. *!! If parts are found that are loose or do not function properly, correct the situation before using the Verti-Air!! 2.

  • Page 17: Emptying The Waste Container

    This is done as follows (see Fig. 13) 1. Drive the Verti-Air to the dumping location for collected waste. *!! Ensure that the tractor is well blocked and cannot start moving by itself !! 2. Open by the hydraulic of the tractor the debris container, the material will fall out now 3.

  • Page 18: Operation Of The Verti-Air

    The machine can be disconnected from the tractor as follows (See Fig 14) 1. Drive the Verti-Air up to its storage place, which must have a stable and flat ground. *!! Ensure that the tractor is well blocked and cannot start moving by itself !! *!! Switch off the tractor before getting off !! 2.

  • Page 19: Troubleshooting

    Wash out with plenty water Eventually replace infill material. 16.0 EU CERTIFICATE We, Redexim BV, Utrechtseweg 127, 3702 AC Zeist, The Netherlands, declare entirely on our own responsibility that the product VERTI-AIR WITH MACHINE NUMBER AS INDICATED ON THE MACHINE AND IN THIS MANUAL,...

  • Page 20: Maintenance

    17.0 MAINTENANCE Time schedule Check point/lubricating Method point Before each use Check for loose bolts/nuts. Tighten the loose bolts/nuts with the correct torque. Presence and legibility of safety Replace if damaged or missing. stickers (Fig. 5) Check oil leak Repair when needed Check filters on pollution Clean Filters when needed After first 20 operating hours...

  • Page 21: Most Important Parts

    18.0 MOST IMPORTANT PARTS PART # DISCRIPTION REMARKS 486.340.916 Brush 535.401.600 3-way Flow-regulating valve 488.210.916 Front Roller 741.250.390 Bearing front roller 458.907.916 Sieve 446.219.916 Rubber for sieve 532.911.400 Hydraulic motor brush 532.601.500 Hydraulic motor sieve 532.901.300 Hydraulic motor fan 10 545.389.170 Air tube 11 458.409.110 Complete filter set vacuum unit...
