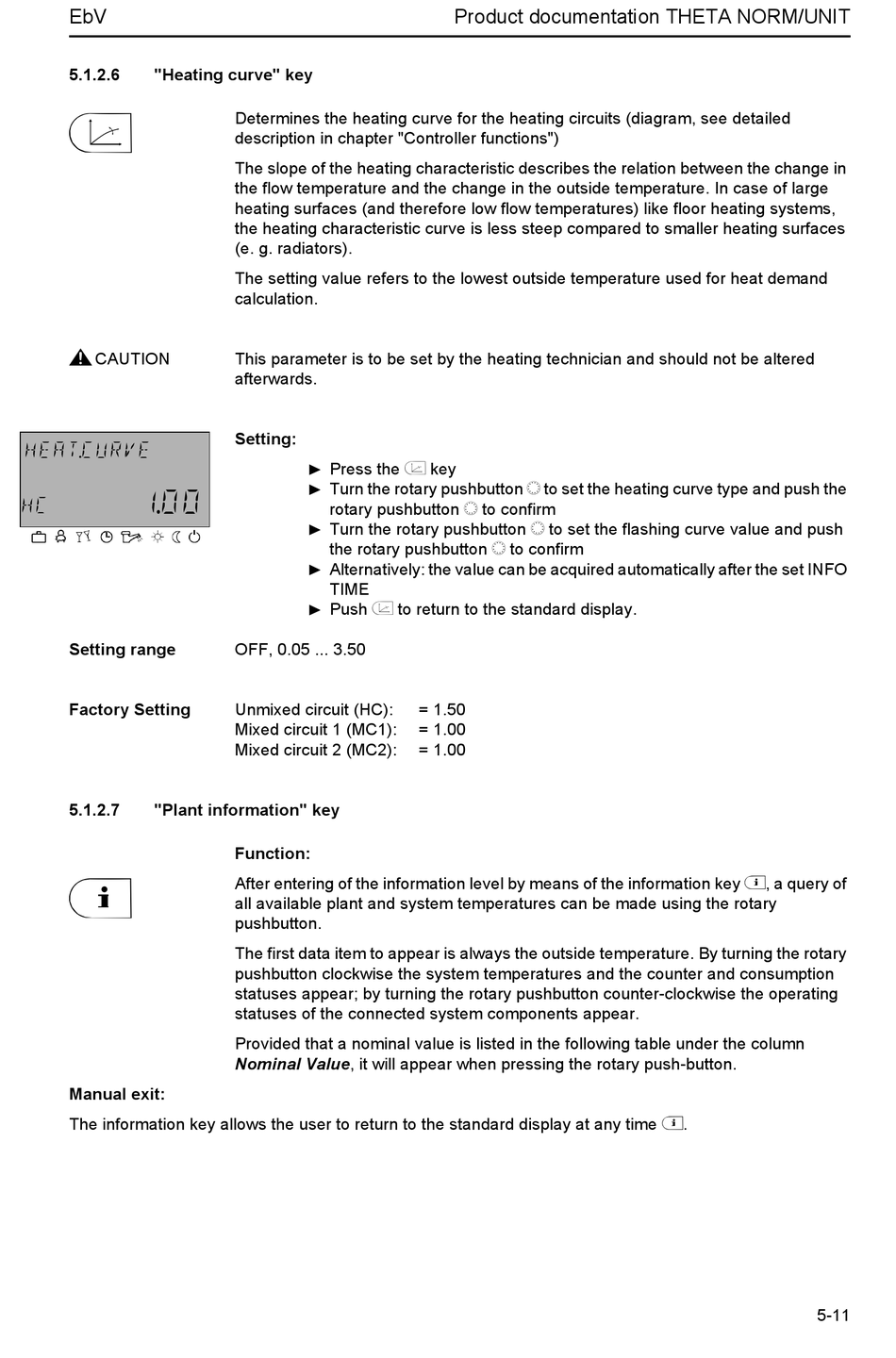

EbV
5.1.2.6

"Heating curve" key

£
CAUTION
HEAT. C URVE
1. 0 0
HC
Setting range
Factory Setting
5.1.2.7

"Plant information" key

¤
Manual exit:
The information key allows the user to return to the standard display at any time ¤.
Determines the heating curve for the heating circuits (diagram, see detailed
description in chapter "Controller functions")
The slope of the heating characteristic describes the relation between the change in
the flow temperature and the change in the outside temperature. In case of large
heating surfaces (and therefore low flow temperatures) like floor heating systems,
the heating characteristic curve is less steep compared to smaller heating surfaces
(e. g. radiators).
The setting value refers to the lowest outside temperature used for heat demand
calculation.
This parameter is to be set by the heating technician and should not be altered
afterwards.
Setting:
Press the £ key
Turn the rotary pushbutton î to set the heating curve type and push the
rotary pushbutton î to confirm
Turn the rotary pushbutton î to set the flashing curve value and push
the rotary pushbutton î to confirm
Alternatively: the value can be acquired automatically after the set INFO
TIME
Push £ to return to the standard display.
OFF, 0.05 ... 3.50
Unmixed circuit (HC):
Mixed circuit 1 (MC1):
Mixed circuit 2 (MC2):
Function:
After entering of the information level by means of the information key ¤, a query of
all available plant and system temperatures can be made using the rotary
pushbutton.
The first data item to appear is always the outside temperature. By turning the rotary
pushbutton clockwise the system temperatures and the counter and consumption
statuses appear; by turning the rotary pushbutton counter-clockwise the operating
statuses of the connected system components appear.
Provided that a nominal value is listed in the following table under the column
Nominal Value, it will appear when pressing the rotary push-button.
Product documentation THETA NORM/UNIT
= 1.50
= 1.00
= 1.00
5-11
