EbV
12.3

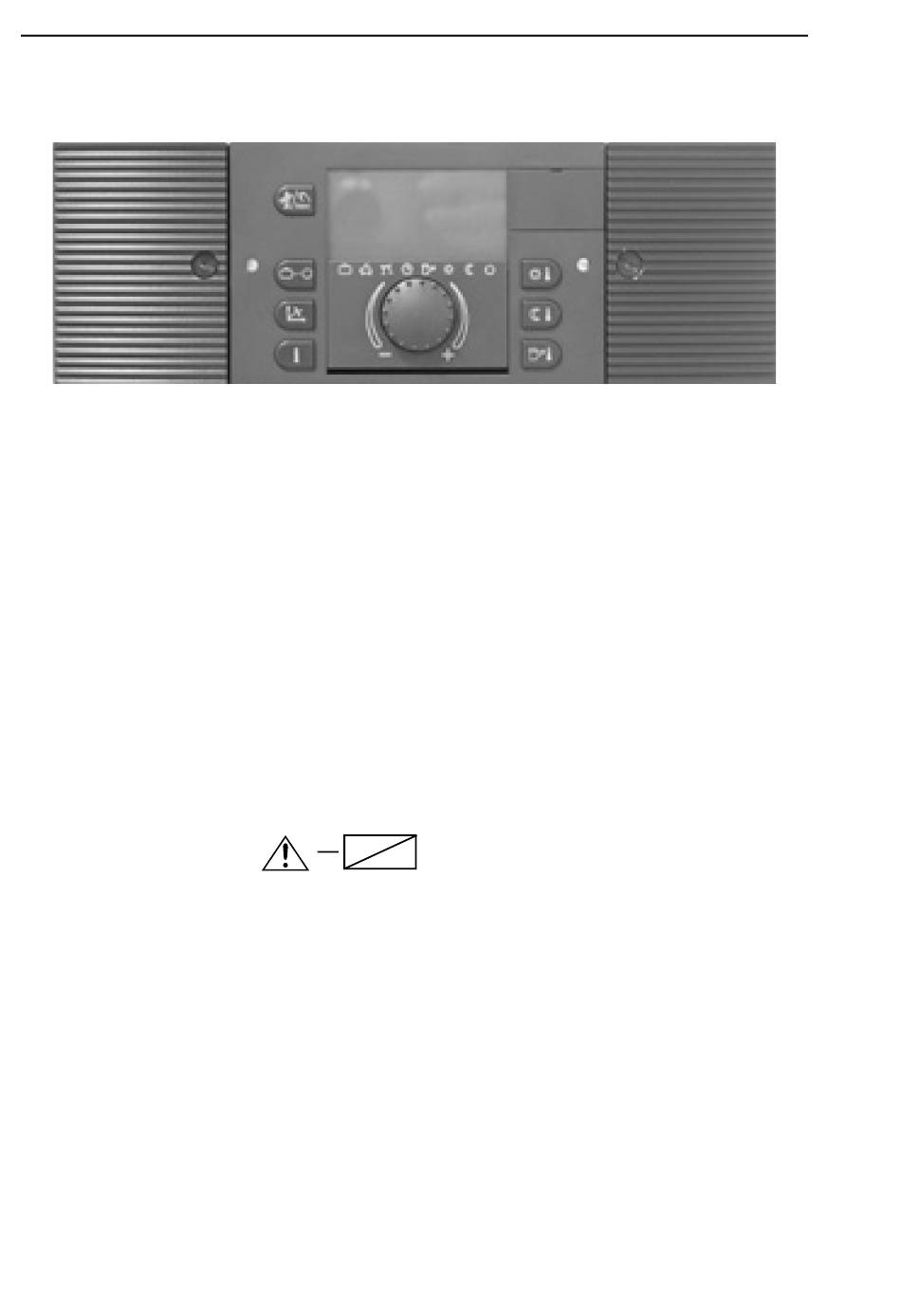

Mounting instructions for mounting with wall socket MS-K
Application:
The wall socket MS-K is used for wall mounting application of all types of standard
units.
Application:
The wall-mounted connection base is intended for the sole purpose of housing the
standard unit. After plugging the standard unit into the wall socket and after finishing
the electrical wiring ready for start up.
12.3.1
Electrical installation
12-6
1-
Break out the impressed cable inlets due to the required number and seize
on top side or lower side of the wall socket according to the position of the
cable channel.
Note:
Cable strain relief is prescribed if no cable duct is used.
2-
Turn locking screws (1) horizontally and pull off terminal covers to the side.
3-
Fix wall socket on a flat background using enclosed screws and plugs. Use
the enclosed drill pattern
4-
Electrical installation has to be carried out according to plant and
connectivity as shown on next page.
230 V~
The connecting terminals of terminal blocks X5 and X6 at the left side work
with safety low voltage and must not get into contact with the mains
voltage. At non-observance the instrument will definitely be destroyed and
the warranty is no longer valid!
The connecting terminals of terminal blocks X7 to X10 may work with
mains voltage according to the device type and current operation
conditions.
The wall socket is equipped completely with screwless terminals. Press
lever before inserting stripped wire into terminal.
5-
Attach and clamp the side terminal-covers.
Product documentation THETA NORM/UNIT
