EbV
DHW
c
o
50. 0
DAY
Single DHW Charging Function
1 TIME DHW
0. 0
min
5.1.2.5

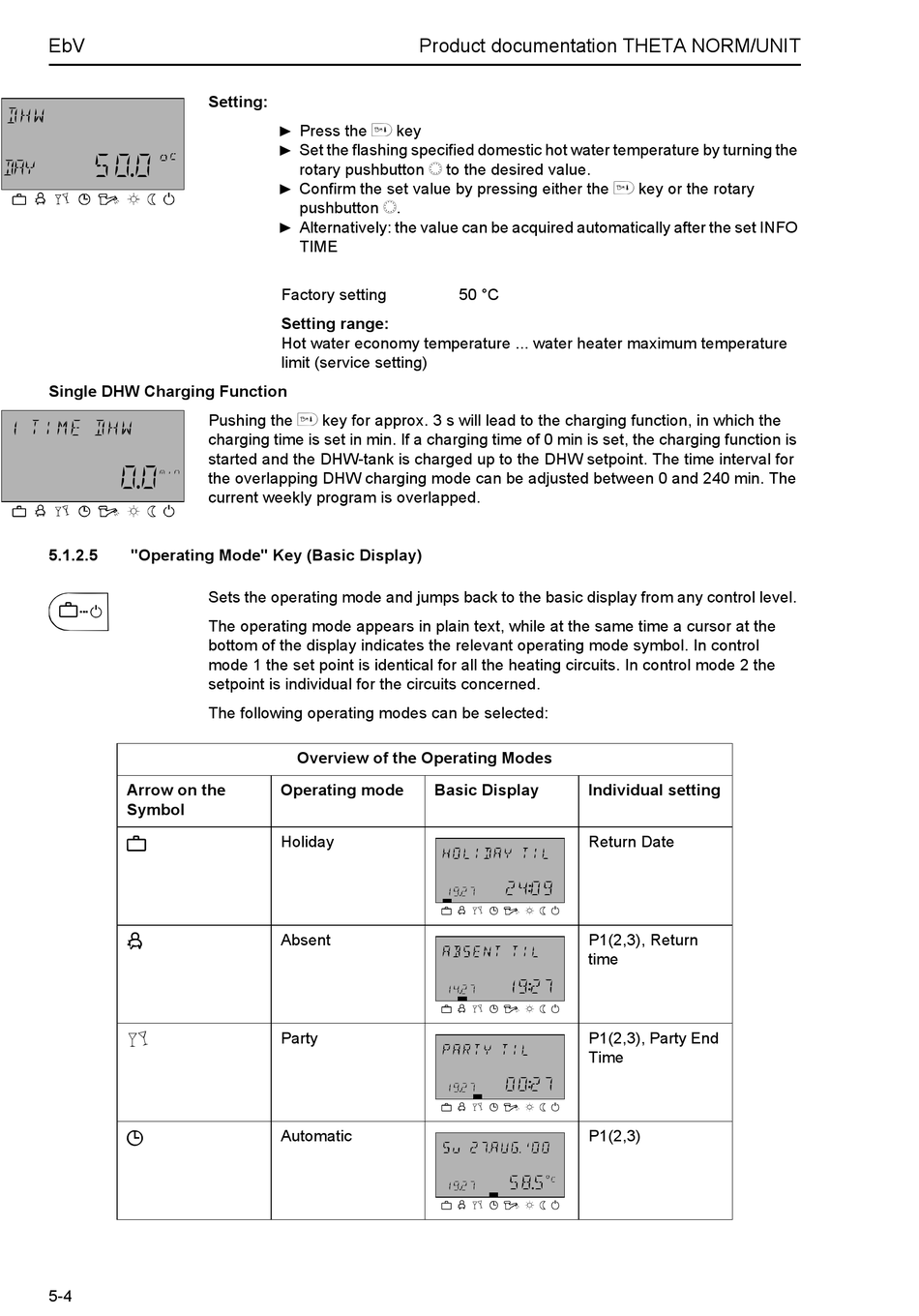

"Operating Mode" Key (Basic Display)

¢
Arrow on the
Symbol
æ
ç
è
é
5-4
Setting:
Press the § key
Set the flashing specified domestic hot water temperature by turning the
rotary pushbutton î to the desired value.
Confirm the set value by pressing either the § key or the rotary
pushbutton î.
Alternatively: the value can be acquired automatically after the set INFO
TIME
Factory setting
Setting range:
Hot water economy temperature ... water heater maximum temperature
limit (service setting)
Pushing the § key for approx. 3 s will lead to the charging function, in which the
charging time is set in min. If a charging time of 0 min is set, the charging function is
started and the DHW-tank is charged up to the DHW setpoint. The time interval for
the overlapping DHW charging mode can be adjusted between 0 and 240 min. The
current weekly program is overlapped.
Sets the operating mode and jumps back to the basic display from any control level.
The operating mode appears in plain text, while at the same time a cursor at the
bottom of the display indicates the relevant operating mode symbol. In control
mode 1 the set point is identical for all the heating circuits. In control mode 2 the
setpoint is individual for the circuits concerned.
The following operating modes can be selected:
Overview of the Operating Modes
Operating mode
Holiday
Absent
Party
Automatic
Product documentation THETA NORM/UNIT
50 °C
Basic Display Individual setting
Return Date
HOLIDAY TIL
24: 0 9
19. 2 7
P1(2,3), Return
ABSENT TIL
time
19: 2 7
14. 2 7
P1(2,3), Party End
PARTY TIL
Time
00: 2 7
19. 2 7
P1(2,3)
Su 27. A UG. " 00
o c
58. 5
19. 2 7
