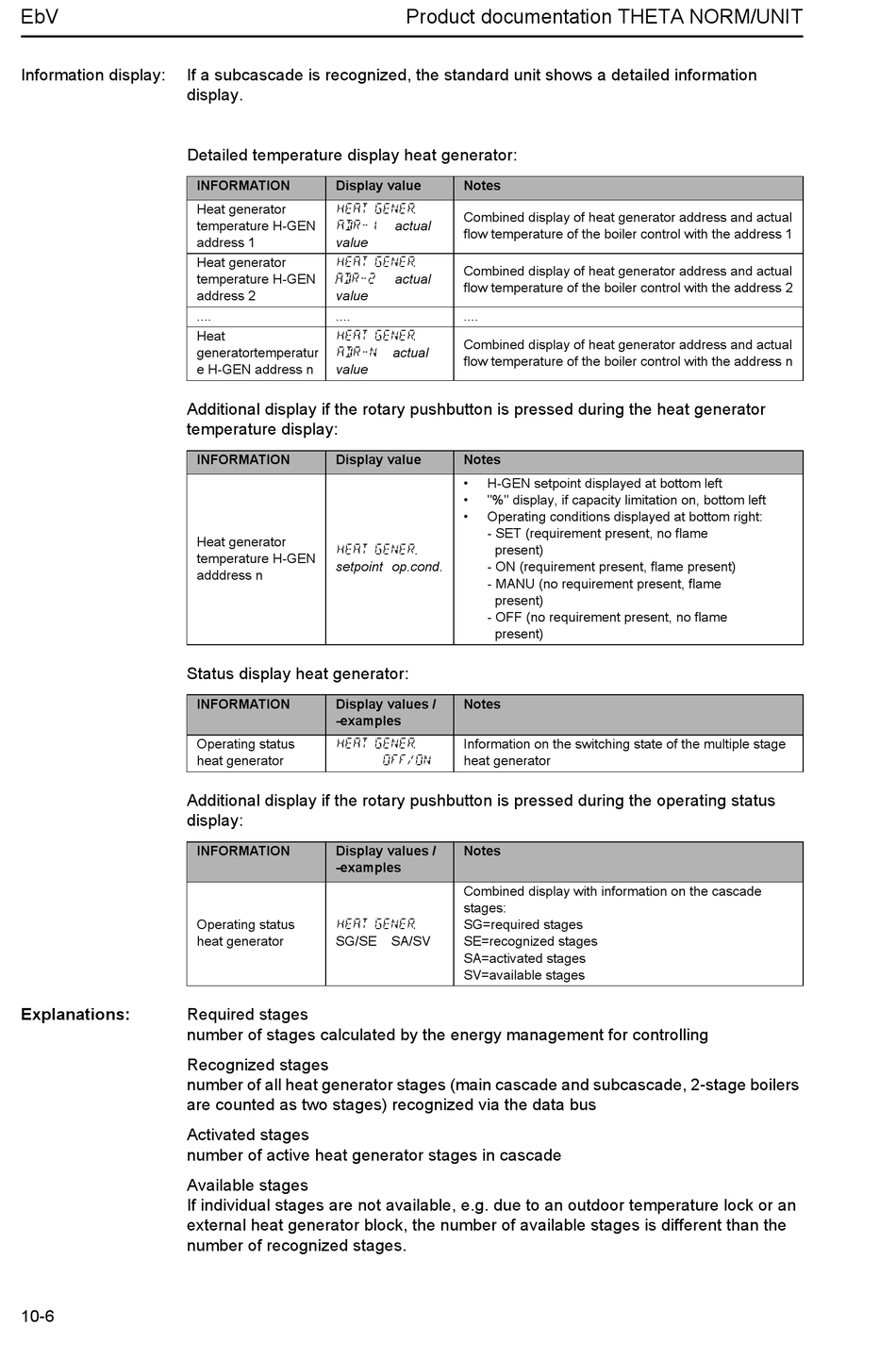

Information display: If a subcascade is recognized, the standard unit shows a detailed information
display.
Detailed temperature display heat generator:
Additional display if the rotary pushbutton is pressed during the heat generator
temperature display:
Status display heat generator:
Additional display if the rotary pushbutton is pressed during the operating status
display:
Explanations: Required stages
number of stages calculated by the energy management for controlling
Recognized stages
number of all heat generator stages (main cascade and subcascade, 2-stage boilers
are counted as two stages) recognized via the data bus
Activated stages
number of active heat generator stages in cascade
Available stages
If individual stages are not available, e.g. due to an outdoor temperature lock or an
external heat generator block, the number of available stages is different than the
number of recognized stages.
10-6
INFORMATION Display value
Heat generator
HEAT GENER.
temperature H-GEN
ADR-1
address 1 value
Heat generator
HEAT GENER.
temperature H-GEN
. A DR-2
address 2 value
.... ....
Heat
HEAT GENER.
generatortemperatur
ADR-N
e H-GEN address n value
INFORMATION Display value
Heat generator
HEAT GENER.
temperature H-GEN
setpoint op.cond.
adddress n
INFORMATION Display values /
-examples
Operating status
HEAT GENER.
heat generator
INFORMATION Display values /
-examples
Operating status
HEAT GENER.
heat generator SG/SE
Product documentation THETA NORM/UNIT
Notes
Combined display of heat generator address and actual
actual
flow temperature of the boiler control with the address 1
Combined display of heat generator address and actual
actual
flow temperature of the boiler control with the address 2
....
Combined display of heat generator address and actual
actual
flow temperature of the boiler control with the address n
Notes
• H-GEN setpoint displayed at bottom left
• "%" display, if capacity limitation on, bottom left
• Operating conditions displayed at bottom right:
- SET (requirement present, no flame
present)
- ON (requirement present, flame present)
- MANU (no requirement present, flame
present)
- OFF (no requirement present, no flame
present)
Notes
Information on the switching state of the multiple stage
heat generator
OFF/ON
Notes
Combined display with information on the cascade
stages:
SG=required stages
SA/SV SE=recognized stages
SA=activated stages
SV=available stages
