6.3.3 Neutralizing the micropump
delivery
The micropump lubricant outflow can be
neutralized at any time.
For the micropump with adjustment of the
flow rate with thumb wheel: fully turn the
thumb wheel to the left.
For the micropump with adjustment of the
flow rate with metering rings: replace the
current metering ring (when there is one) by
the '0' metering ring.
The '0' metering ring is very im-
!
portant in order to neutralize the
micropump lubricant outflow. Do not
lose it.
6.4 Pneumatic pulse
generator
The pulse generator adjusts the working fre-
quency of all micropumps. The frequency is
indicated on the pulse generator in pulses
(piston stroke) per second. The values on the
generator are indicative and may vary ac-
cording to the air inlet pressure.
• Use a slotted screwdriver to adjust the

pneumatic pulse generator.

6.5 Carrier air pressure
regulator
Every outlet port has a carrier air pressure
regulator. According to the needs of the noz-
zle corresponding to this outlet, it is possible
to increase or reduce this carrier air
pressure.
• Turn the regulator to the left (front view of
the module as in page 9) to build up the
pressure and to the right to reduce it.
• Loosen the counter nut to block the flow
regulator in order to prevent any acciden-
tal modification of the pressure.
When the pressure regulator is
!
completely turned to the right,
there is no more carrier air flow.

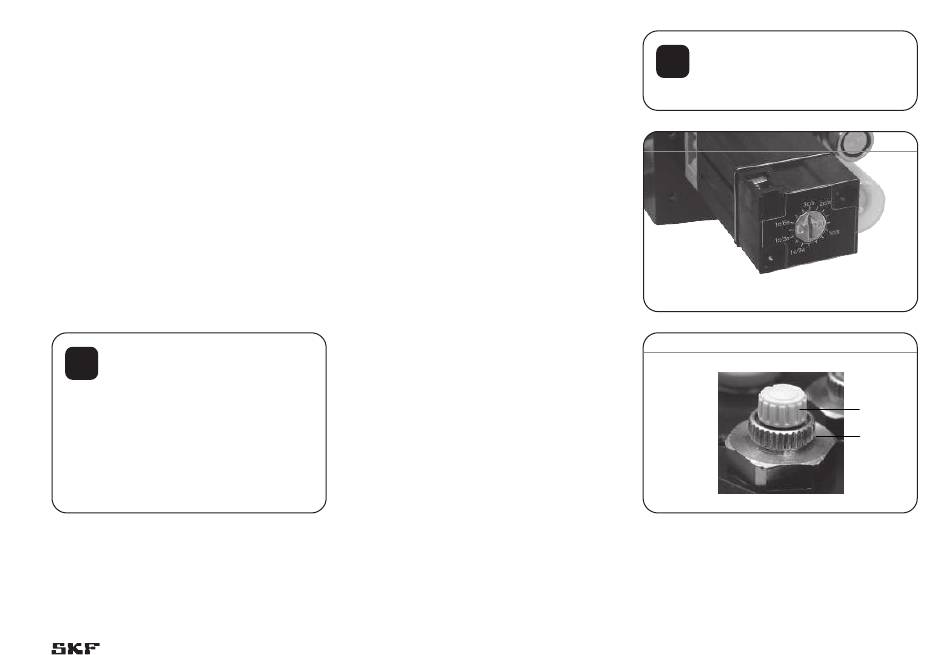

Pulse generator setting scale
Pressure regulator

1 Carrier air pressure regulator

2 Locking counter nut
Fig. 11
Fig. 12
1
2
