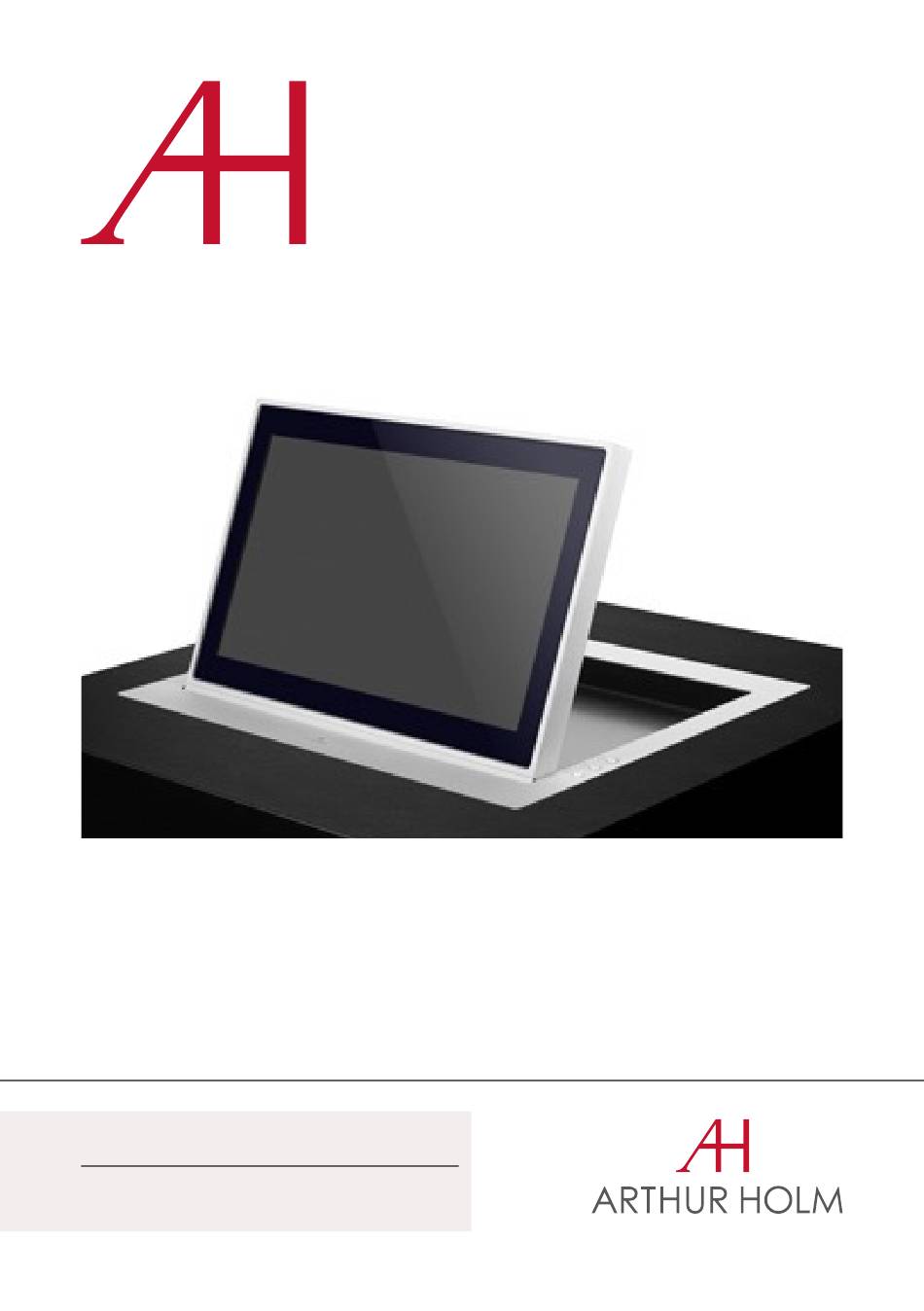

- Page 1 User Guide AH12D1HGA AH15D1HGA AH17D1HGA AH22D1HGA HDCP compliant motorised monitors for furniture integration Technology Serving Desing Danish craftmanship Mediterranean soul...
-
Page 2: Table Of Contents
TABLE OF CONTENTS EC REGULATIONS AND SECURITY SAFETY INSTRUCTIONS SYSTEM DESCRIPTION CONTROLS INPUT CONNECTORS OSD MENU AHNET PROTOCOL INPUT SIGNALS INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS... - Page 3 Thank you for purchasing an ARTHUR HOLM product. Our product range has been designed for a seamless integration and for Arthur Holm has its origins in the Danish furniture designer Jorgen Alex a maximum reliability. Jensen, who was active during the sixties and the seventies. His design...
-
Page 4: Ec Regulations And Security
EC REGULATIONS AND SECURITY SAFETY INSTRUCTIONS ATTENTION: Do not disassemble or modify the device in any way. Wiring connected to hazardous voltage requires installation by This symbol warns of the presence of dangerous un-insulated qualified personnel or the use of ready-made flexible cables. voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. -
Page 5: System Description
SYSTEM DESCRIPTION Applications Box Contents The AH12D1HGA, AH15D1HGA, AH17D1HGA, AH22D1HGA systems are Before the installation of your motorised monitor, please check the professional TFT displays with an elegant housing equipped with electro contents of the shipping box, it must contain the following items: mechanical automation, for installation into an horizontal furniture •... -
Page 6: Controls
CONTROLS CONTROLS Remote control IR sensor POWER Switch ON/OFF the monitor The IR sensor is located on the lower right side of the screen. MENU Activates the OSD menu on screen Monitor movement controls Cursor control up on the OSD menu On the upper cover plate, there are three buttons to control the UP and DOWN Cursor control down on the OSD menu... -
Page 7: Input Connectors
INPUT CONNECTORS INPUT CONNECTORS Termination: Activate (ON) the termination ONLY, on the last unit of the RS422 bus. AHnet: RJ45 CAT5 connector for addressable RS422 control. There is a loop through connector to use as signal RS422 output. Up to 30 monitors can be connected on the same RS422 bus. -
Page 8: Osd Menu
OSD MENU OSD MENU Accessing the menu system Picture Noise Reduction: Adjusts the image noise filter • With the OSD off, push the MENU button to activate the main OSD menu. ∙ Off ∙ Low • Press the UP and DOWN buttons to move from one function to another. Please refer to the following sections below to view a complete list of ∙... -
Page 9: Ahnet Protocol
OSD MENU AHNET PROTOCOL Setup Communications protocol Language: OSD language selection COMMUNICATION RS422 CONNECTION RJ45 WIRING CAT-5 Restore Factory Default: Adjusts the parameters to the initial factory parameters Speed and configuration Blending: OSD window transparency BAUD RATE 38400 ∙ Low DATA BITS ∙... - Page 10 AHNET PROTOCOL AHNET PROTOCOL AHnet protocol Using 5 bytes communication: BITE MONITOR HORIZONTAL POSITION BYTE 0 START BYTE MONITOR VERTICAL POSITION BYTE 1 ADDRESS BYTE MONITOR MEMORISED POSITION BYTE 2 COMMAND BYTE SCREEN ON BYTE 3 VALUE 1 SCREEN OFF BYTE 4 VALUE 2 DVI 1-A...
-
Page 11: Input Signals
AHNET PROTOCOL INPUT SIGNALS Picture Commands RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive COMMAND DESCRIPTION RESPONSE 800x600@72Hz 48.077 72.188 Progressive FA XX 15 00 00 ASK FOR BACKLIGHT LEVEL FB XX 15 00 ZZ 800x600@75Hz 46.875 75.000... -
Page 12: Information On Disposal
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & WARRANTY TERMS AND CONDITIONS ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of two (2) years from the documents means that used electrical and electronic products should not be mixed with general household date of purchase, subject to the conditions below. - Page 13 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Dec. 2019. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm, Pixtron Broadcast...
- Page 14 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
