- Page 1 User Guide RISE HDCP compliant monitors for on-wall information Technology Serving Design Danish craftmanship Mediterranean soul...
-
Page 2: Table Of Contents
TABLE OF CONTENTS REGULATIONS AND SECURITY SAFETY INSTRUCTIONS SYSTEM DESCRIPTION INSTALLATION INSTRUCTIONS INPUT CONNECTORS CONTROLS OSD MENU VIDEO SIGNALS INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS... - Page 3 WELCOME Thank you very much for purchasing an Arthur Holm product. Please, read these installation and operating instructions carefully and keep them in a safe place for future consultations. We remain at your entire disposal if you have any suggestions.
- Page 4 ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, who is the design force behind Arthur Holm product range. The...
-
Page 5: Regulations And Security
EC REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 6 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
-
Page 7: System Description

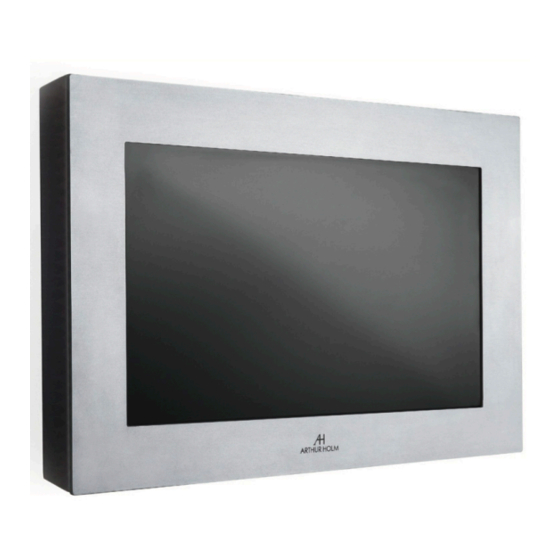

SYSTEM DESCRIPTION General Rise monitors are ideal to offer relevant meetings information when placed outside a conference or purpose- built room, where they will undoubtedly catch the eye of the public. They can show details about the session taking place inside, being extremely helpful and engaging for attendees to know schedules, programmes or other general information of interest. - Page 8 SYSTEM DESCRIPTION Available Models MODEL DESCRIPTION HDCP compliant 12.1" widescreen monitor finished with AH12RI/ AH12RA/ a stainless steel (I), aluminium (A) or Glass (G) front frame AH12RG for on-wall integration, DVI-I and DVI-D inputs. HDCP compliant 15.6" widescreen monitor finished with...
- Page 9 SYSTEM DESCRIPTION Box Contents Before the installation of your retractable monitor, please check the contents of the shipping box, it must contain the following items: • Monitor • Galvanised in-wall mounting box • Power cord • Power supply 100-240Vac, 50-60Hz. Output 12V •...
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS Rise installation guide 1.- The first step is to mark the 4 points required to fix the x4 screws. Please note that an alternative fastening x may be required depending on the wall’s material. Drill the holes and place the screws according to the hole diameter as described in the General Dimensions document. -
Page 11: Input Connectors
INPUT CONNECTORS 12V D.C.: Power supply input connector. DVI 1/ DVI A: DVI-I input signal. Connect a DVI (digital) input signal and select DVI 1 on the OSD monitor menu. Use a DVI to VGA adaptor to connect an ARGB (analogue) input signal and select DVI-A on the OSD monitor menu. DVI 2: DVI-D input signal. -
Page 12: Controls
CONTROLS OSD monitor control The OSD buttons, to control or configure the monitor, are located at the lower body housing of the system POWER Monitor power on/off Indicates operation status SOURCE Signal input selection RIGHT Moves the cursor right in the OSD menu LEFT Moves the cursor left in the OSD menu Moves the cursor up in the OSD menu... - Page 13 CONTROLS Remote control POWER Switch ON/OFF the monitor MENU Activates the OSD menu on screen Control up on the OSD menu DOWN Control down on the OSD menu LEFT Control left on the OSD menu RIGHT Control right on the OSD menu Selects the function on the OSD menu.
-
Page 14: Osd Menu
OSD MENU Accessing the menu system • With the OSD off, push the MENU button to activate the main OSD menu. • Press the UP and DOWN buttons to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor. - Page 15 OSD MENU Noise Reduction: Adjusts the image noise filter ∙ Off ∙ Low ∙ Medium ∙ High ∙ Default Screen: (Only for analogue signals) ∙ Auto Adjust ∙ Horizontal Position ∙ Vertical Position ∙ Size ∙ Phase Backlight: Adjusts the backlight screen's level Colour Range: Adjusts the colour range ∙...
- Page 16 OSD MENU Option Language: OSD language selection Restore Factory Default: Adjusts the parameters to the initial factory parameters Blending: OSD window transparency ∙ Low ∙ Medium ∙ High ∙ Off OSD Duration: Adjusts the time that the OSD menu window remains on the screen Software Update (USB): Port to use for firmware's upgrade.
-
Page 17: Video Signals
VIDEO SIGNALS AH12 RA Wide/AH12 RI Wide/AH12 RG Wide RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1360x768@60Hz... - Page 18 VIDEO SIGNALS AH17 RA Wide FHD/AH17 RI Wide FHD/AH17 RG Wide FHD RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023...
- Page 19 VIDEO SIGNALS AH22 RA/AH22 RI/AH22 RG RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.697 59.915 Progressive...
-
Page 20: Information On Disposal
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis. -
Page 21: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of two (2) years from the date of purchase, subject to the conditions below. LCD panel, inverter, controller, electrical, electronic boards, engine, mechanical parts, accessories and power supply are warranted against manufacturing defects and workmanship for a period of two (2) years from the date of purchase. - Page 22 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Nov. 2020. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm...
- Page 23 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
