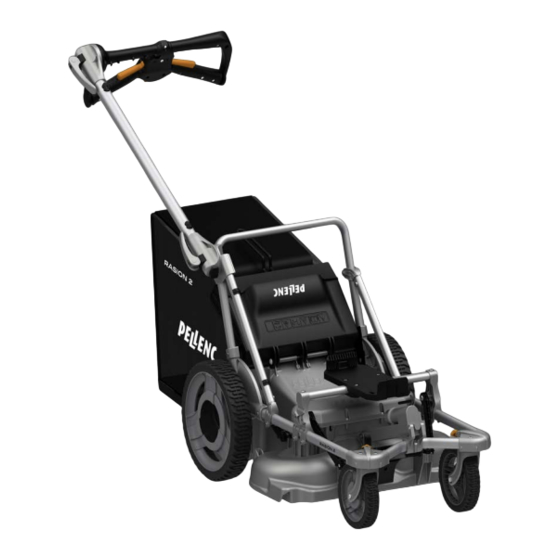

- Page 1 Translation of the original user guide LAWN MOWER RASION 2 SMART 59_143879-B Operating instructions 09/2020 READ THE USER GUIDE CAREFULLY BEFORE USE...
-
Page 3: Table Of Contents
LAWN MOWER RASION 2 SMART 59_143879-B TABLE OF CONTENTS 1. INTRODUCTION ........................5 2. SAFETY ........................... 6 2.1. GENERAL SAFETY WARNINGS ....................2.1.1. TRAINING ............................2.1.2. PREPARATION ..........................2.1.3. OPERATION ............................2.1.4. MAINTENANCE AND STORAGE ....................... 2.2. SAFETY MEASURES ASSOCIATED WITH CHARGER AND BATTERY USE ...... - Page 4 LAWN MOWER RASION 2 SMART 59_143879-B 5.5.3. SLOPES ............................5.5.4. DAMP GROUND ..........................5.5.5. MOWING WITH GRASS COLLECTION .................... 5.5.6. MOWING WITHOUT GRASS COLLECTION ..................5.5.7. MOWING WASTE ..........................6. MAINTENANCE ........................30 6.1. MAINTENANCE FREQUENCY ...................... 6.2. USEFUL ADVICE FOR RISK FREE MAINTENANCE ..............
-
Page 5: Introduction
59_143879-B 1. INTRODUCTION Dear Customer, Thank you for purchasing your Lawn mower Rasion 2 Smart . Correctly used and maintained, this tool will give a satisfactory performance for many years. Warning Your device contains numerous recoverable or recyclable materials. Return it to your dealer or, failing this, to an approved servicing centre to be treated. -
Page 6: Safety
• Your Lawn mower Rasion 2 Smart is a professional tool whose use is reserved exclusively for cleaning of green spaces (grass, dense grasses, woody weeds and brambles). -
Page 7: Maintenance And Storage
Replace worn or damaged parts so that the machine remains safe. Only use certified spare parts and acces- sories. 2.2. SAFETY MEASURES ASSOCIATED WITH CHARGER AND BATTERY USE Important Please refer to the tool battery instructions.PELLENC 2.3. PERSONAL PROTECTION EQUIPMENT Equipment Wear... -
Page 8: Safety Signage
LAWN MOWER RASION 2 SMART 59_143879-B Protective gloves Recommended Safety footwear Mandatory Ear protection Recommended Protective goggles Mandatory Jacket or over-sleeves Recommended Work trousers Recommended 2.4. SAFETY SIGNAGE Use the lawn mower with caution. Pictograms on the ejection flap of the machine indicate the main precautions to be respected to avoid injury: Read the user manual Read the instructions carefully and follow the safety precautions. -
Page 9: Description And Features
LAWN MOWER RASION 2 SMART 59_143879-B 3. DESCRIPTION AND FEATURES Handle 22. '-' button Control unit 23. Lawn mower direction button Handle adjusting lever 24. '+' button Handlebar 25. Right reverse button Handlebar adjusting lever 26. Right trigger Ejection flap 27. -
Page 10: Noise Levels
LAWN MOWER RASION 2 SMART 59_143879-B Model Rasion 2 Smart Dimensions when folded (l x w x h) 887 x 620 x 613 mm Dimensions when unfolded (l x w x h) 1650 x 620 x 884 mm Unladen weight (without battery or collecting bin) -
Page 11: Commissioning
LAWN MOWER RASION 2 SMART 59_143879-B 4. COMMISSIONING In the packing box, the mower is in the transport position. The handlebar (4) is folded forwards and locked in place by the adjusting lever (5). To start using the mower, the mower must be unfolded and in the working position. - Page 12 LAWN MOWER RASION 2 SMART 59_143879-B Adjust the tightness using the thumb wheel. Push back the handlebar adjustment lever (5). Unlock the handle adjustment lever (3). Adjust the angle of the handle (1).
-
Page 13: Collecting Bin Capacity
LAWN MOWER RASION 2 SMART 59_143879-B Adjust the tightening by completely tilting the handle ad- justment lever (3) and screwing or unscrewing its central screw. Lock the handle adjustment lever (3) to lock the handle. 4.2. COLLECTING BIN CAPACITY Note The mower works like a vacuum cleaner that throws the cut grass into the collecting bin. -
Page 14: 750 / 1200 / 1500 Battery: Installation And Connection
LAWN MOWER RASION 2 SMART 59_143879-B Remove the 4 fixing screws of the pre-fitted battery tray. Note The Alpha 260/520 battery holder is sold with the harness. Remove the battery holder from the harness before installing it on the mower. -
Page 15: Alpha 260 / 520 Battery: Installation And Connection
LAWN MOWER RASION 2 SMART 59_143879-B Before electrically connecting the battery to the mower, check that the battery power indicator is off. The power indicator (represented by a flash) should not be visible on the battery display. 59N_18_041 Connect the power cable (7) of the mower to the battery... - Page 16 LAWN MOWER RASION 2 SMART 59_143879-B Move the battery along the guide until the locking clip holds the battery in place. Check that the battery is completely locked on the tray with the battery safety lock. Then connect the end of the mower cable to the battery (23) taking care to align the polarizers.
-
Page 17: Use
LAWN MOWER RASION 2 SMART 59_143879-B 5. USE The mower is now ready for use but before starting to mow, the battery must be turned on. Proceed as indicated below: 5.1. TURN THE BATTERY ON / OFF 750 / 1200 / 1500 battery: Turn on the battery by press- ing the upper or lower push button (battery power icon present). -
Page 18: Control Unit
LAWN MOWER RASION 2 SMART 59_143879-B 5.2.1. CONTROL UNIT The following settings are adjusted from the control unit (2): • the forward speed of the lawn mower (A) • the turning speed of the cutting blades (C) • the cutting height (H) - Page 19 LAWN MOWER RASION 2 SMART 59_143879-B 5.2.3.1. AUTOMATIC BLADE SPEED: The density sensor (11) at the front of the lawn mower can be used to automatically adjust the turning speed of the cutting blades that varies between 3000 and 5000 rpm depending on the density of the grass.
-
Page 20: Adjusting The Cutting Height
LAWN MOWER RASION 2 SMART 59_143879-B Note The blades continue to rotate as long as the right trigger (26), used to make the mower move forwards, remains pressed. This means that you can release the left trigger (30) whilst mowing. When the right trigger (26) is released, the blades stop rotating at the same time as the mower stops moving. -
Page 21: Controls
LAWN MOWER RASION 2 SMART 59_143879-B 5.3. CONTROLS 5.3.1. STEERING CONTROLS Control 1: Forward movement • Press on the right trigger (26) and hold it down to move the lawn mower forwards. Control 2: Reverse movement • Press on the 'right reverse' button (25) and hold it down to move the lawn mower backwards. -
Page 22: Mowing Controls
LAWN MOWER RASION 2 SMART 59_143879-B Only when the blades and wheels are stationary, press twice quickly on the right trigger (26) and hold it after the second press to activate the Boost function. The mower then accelerates to its max speed of 5 km/ hr, as long as the forward trigger is held pressed. -
Page 23: Combination Of Controls
LAWN MOWER RASION 2 SMART 59_143879-B Release and pull the left trigger (30) rapidly to activate the Boost function. Note The Boost function can be activated at any time in both automatic or manual mode. It is useful when mowing irregularities are encountered (tall, dense grasses, etc.) and avoids having to change the initial settings of... -
Page 24: Lock / Unlock The Front Wheels Direction
LAWN MOWER RASION 2 SMART 59_143879-B 5.3.6. LOCK / UNLOCK THE FRONT WHEELS DIRECTION To lock the rotation of the front wheels, turn the 2 pins in front of each wheel to the horizontal. In this position, the front wheels stay straight and the mower moves only in a straight line. -
Page 25: Immobilizer System
LAWN MOWER RASION 2 SMART 59_143879-B Note if the set cutting height is h25, a short single press on "-" (22) or "+" (24) can be used to respectively activate or deactivate the parking/transport brake. Note When the brake is activated, the blades and the wheels are deactivated. -
Page 26: Inclinometer
LAWN MOWER RASION 2 SMART 59_143879-B 5.4.2. INCLINOMETER Note This lawn mower is equipped with an inclinometer that prevents engine start up when the mower is steeply inclined or turned over. For your safety, it is impossible to start the blades when the mower is in a vertical position: •... -
Page 27: Mowing Method
LAWN MOWER RASION 2 SMART 59_143879-B directions. However, you should take greater care when mowing on sloping ground to avoid tipping the lawn mower. After mowing, the cut grass must be collected if it has not been mulched. Otherwise, residue can choke the lawn and prevent it from keeping its green color. -
Page 28: Slopes
LAWN MOWER RASION 2 SMART 59_143879-B 5.5.3. SLOPES Although they are increasingly safe, lawn mowers are still dangerous machines, this is why it is better to mow across sloping ground rather than up and down to avoid any risk of tipping. -
Page 29: Mowing Without Grass Collection
LAWN MOWER RASION 2 SMART 59_143879-B Note Mowing with collection allows you to obtain a neat and clean lawn. The risk of lawn diseases is reduced as the waste does not decompose directly on the ground. 5.5.6. MOWING WITHOUT GRASS COLLECTION This type of mowing is suited for meadows or high and uneven grass. -
Page 30: Maintenance
LAWN MOWER RASION 2 SMART 59_143879-B 5.5.7.3. USE CUTTINGS AS MULCH Grass cuttings can also be used as mulch. For this, spread them at a thickness of 2 to 3 cm around your vegetable patches (tomatoes, aubergines, beans, etc.), on bare ground around your plants, or at the foot of trees and shrubs. -
Page 31: Useful Advice For Risk Free Maintenance
LAWN MOWER RASION 2 SMART 59_143879-B Frequency Elements Operations Difficulty Notes Prior to After Every 50 When nec- concerned each use each use hours essary Check the Fasten- tightening ings for of the nut the blades that holds each blade... -
Page 32: Cutter Housing
LAWN MOWER RASION 2 SMART 59_143879-B Important For your safety, the blades and retaining pins must be checked immediately after an impact. Tip the lawn mower upright. If the cutting blades are not perpendicular to each other, it may be because the re- taining pins are broken. -
Page 33: Wheels
LAWN MOWER RASION 2 SMART 59_143879-B Caution Always wear gloves to protect your hands and wrists when working near the cutting blades on the lawn mower! Danger of accidental cuts. Warning Never use soap or solvents, (such as trichloroethylene, white spirit or petrol, etc.) to clean the mower. -
Page 34: Incidents And Troubleshooting
LAWN MOWER RASION 2 SMART 59_143879-B Warning Always clean the optical sensor with water and a wet cloth then turn the battery back on. Never use solvents! 7. INCIDENTS AND TROUBLESHOOTING Problem Check Probable cause Possible action The lawn mower does... - Page 35 LAWN MOWER RASION 2 SMART 59_143879-B Problem Check Probable cause Possible action lawn mower Grass is too high Increase the cutting is not cutting grass height properly Cutter deck housing • Turn the battery off clogged • Clean the inside of the housing •...
-
Page 36: Storage And Transport
LAWN MOWER RASION 2 SMART 59_143879-B Problem Check Probable cause Possible action Contact your proved distributor Key alarm Security key missing, put the key back in the slot 8. STORAGE AND TRANSPORT 8.1. FOLD THE MOWER INTO THE TRANSPORT POSITION Remove and safely store the security key. -
Page 37: Storage
LAWN MOWER RASION 2 SMART 59_143879-B Lock the handlebar adjustment lever (5) by pulling it forwards. Lock the transport brake. Warning Always make sure the battery is turned off before folding back the handlebar (4). 8.2. STORAGE • Store the lawn mower in a dry, sheltered place. -
Page 38: Off-Season Storage
LAWN MOWER RASION 2 SMART 59_143879-B 8.3. OFF-SEASON STORAGE Before stowing the lawn mower for the winter, remember to have it serviced by an Approved Specialist. • Check that the battery is off, battery power icon off (750/1200/1500 battery). • Disconnect the battery from the mower. -
Page 39: General Warranties
LAWN MOWER RASION 2 SMART 59_143879-B Name reference 750/1200/1500 battery holder kit 135161 750 Ultra Lithium Battery 57191 Name reference Battery holder included in the comfort harness 57194 PELLENC ALPHA 260 battery 57192 PELLENC ALPHA 520 battery 57193 10. GENERAL WARRANTIES 10.1. -
Page 40: Commercial Warrantypellenc
PELLENC Products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products. -
Page 41: Implementation Of The Commercial Warranty
The DISTRIBUTOR undertakes to complete the computer commissioning declaration form, no later than eight days after the delivery of the property to the user customer, in order to activate the latter on the www.pellenc.com website under "warranties and training" in the "extranet" menu, using the identifier previously provided to them by PELLENC. -
Page 42: Compliance Statements
