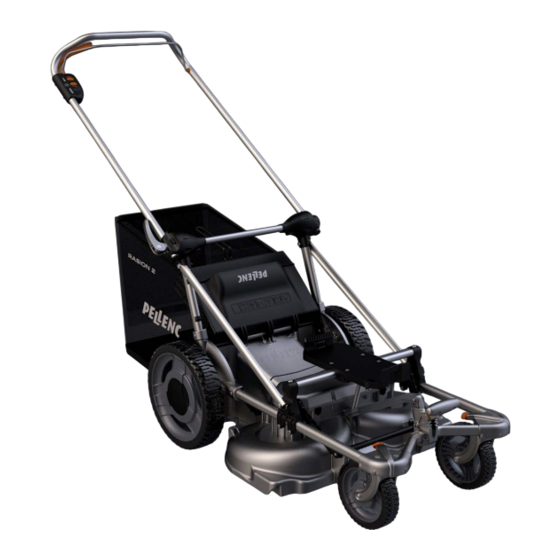

pellenc RASION 2 EASY Operating Instructions Manual

Hide thumbs Also See for RASION 2 EASY:
Table of Contents

Advertisement

Quick Links

Download this manual
ENG
.
Translated from the original
operating instructions
LAWN MOWER
RASION 2 EASY
59_141654-E
Operating instructions
05/2024
READ THE USER OPERATING GUIDE CAREFULLY BEFORE USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RASION 2 EASY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for pellenc RASION 2 EASY

Summary of Contents for pellenc RASION 2 EASY

  • Page 1 Translated from the original operating instructions LAWN MOWER RASION 2 EASY 59_141654-E Operating instructions 05/2024 READ THE USER OPERATING GUIDE CAREFULLY BEFORE USE...

  • Page 3: Table Of Contents

    LAWN MOWER RASION 2 EASY 59_141654-E TABLE OF CONTENTS 1. INTRODUCTION ........................5 2. SAFETY ........................... 6 2.1. GENERAL SAFETY INSTRUCTIONS FOR THE TOOL ..............2.1.1. WORK AREA SAFETY ........................2.1.2. ELECTRICAL SAFETY ........................2.1.3. PERSONAL SAFETY ......................... 2.1.4. POWER TOOL USE AND CARE ......................
  • Page 4 LAWN MOWER RASION 2 EASY 59_141654-E 5.4.1. SAFETY KEY ........................... 5.4.2. INCLINOMETER ..........................5.5. OPERATING TIPS .......................... 5.5.1. MOWING METHOD ......................... 5.5.2. CUTTING HEIGHT ........................... 5.5.3. SLOPES ............................5.5.4. DAMP GROUND ..........................5.5.5. MOWING WITH COLLECTION ......................5.5.6. MOWING WITHOUT GRASS COLLECTION ..................

  • Page 5: Introduction

    59_141654-E 1. INTRODUCTION Dear Customer, Thank you for purchasing your Lawn mower Rasion 2 Easy. Properly used and maintained, this equipment will give you years of satisfaction. Warning In accordance with product liability laws, we are not responsible for damage caused by our product if the product includes an accessory that is not from the manufacturer or is not approved by the manufacturer.

  • Page 6: Safety

    • Your Lawn mower Rasion 2 Easy is a professional tool whose use is reserved exclusively for cleaning of green spaces (grass, dense grasses, woody weeds and brambles).

  • Page 7: Personal Safety

    LAWN MOWER RASION 2 EASY 59_141654-E 2.1.3. PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating the power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention when using a power tool can result in serious personal injury.

  • Page 8: Maintenance And Service

    2.1.7. TOOL’S END OF LIFE MANAGEMENT When the tool reaches the end of its life, PELLENC keeps the end of life sheet of the equipment at disposal. The end-of-life sheet provides instructions for safely removing components.

  • Page 9: Safety Measures Associated With Charger And Battery Use

    LAWN MOWER RASION 2 EASY 59_141654-E 2.3. SAFETY MEASURES ASSOCIATED WITH CHARGER AND BATTERY USE Important Please refer to the tool battery instructionsPELLENC. 2.4. PERSONAL PROTECTION EQUIPMENT Equipment Wear Safety helmet Protective visor Hard-wearing gloves Recommended Safety footwear Mandatory Ear protection...
  • Page 10 Keep your hands and feet away from the blades. Keep your feet and hands away from the blade and the cutting area. Only use original PELLENC batteries with this tool. This tool meets the safety requirements for CPSC blades. Tool compliant with British standards Tool compliant with EC standards.

  • Page 11: Description And Technical Characteristics

    LAWN MOWER RASION 2 EASY 59_141654-E 3. DESCRIPTION AND TECHNICAL CHARACTERISTICS Blade speed indicator LEDs Blade speed selector knob Forward speed indicator LEDs Speed selector knob Drive trigger Blade On/Off safety shut-off bar Handlebar Collection bin handle Collecting box 10. Safety key 11.

  • Page 12: Technical Features

    LAWN MOWER RASION 2 EASY 59_141654-E 3.1. TECHNICAL FEATURES Model Rasion 2 Easy Dimensions when folded (l x w x h) 887 x 620 x 613 mm Dimensions when unfolded (l x w x h) 1650 x 620 x 884 mm Empty weight (with ULIB 1500 battery and without grass 35.5 kg...

  • Page 13: Noise Levels

    LAWN MOWER RASION 2 EASY 59_141654-E 3.2. NOISE LEVELS The noise generated by the mower and the battery life both depend directly on the turning speed of the cutting blades: The faster the blades are turning, the greater the noise and the lower the battery life.
  • Page 14 LAWN MOWER RASION 2 EASY 59_141654-E With one hand, hold the cutting height adjustment handle (15) whilst simultaneously pressing on the two buttons to release its position. Hold the buttons down and pull the handle backwards. With your other hand, release the handlebar (7) and reposition the handle in the notch in which it was engaged.

  • Page 15: Fitting The Collecting Bin

    LAWN MOWER RASION 2 EASY 59_141654-E 4.2. FITTING THE COLLECTING BIN Caution Before mowing, check that the collecting bin is correctly attached to the mower. • Lift the ejection flap (18) and slide the collecting bin (9) into the notches located at the rear of the mower.

  • Page 16: 750 / 1200 / 1500 Battery: Installation And Connection

    LAWN MOWER RASION 2 EASY 59_141654-E 4.4. 750 / 1200 / 1500 BATTERY: INSTALLATION AND CONNECTION Check battery life before use. If necessary, recharge the battery using the charger supplied with the battery (see the battery's operating instructions). Slide the battery from the rear into the upper hook of the battery tray (16).

  • Page 17: Alpha 520 Battery: Installation And Connection

    LAWN MOWER RASION 2 EASY 59_141654-E Connect the power cable (17) of the mower to the 59N_18_042 battery connector of the battery. Screw tight and check that the cable is properly connected. Important To prolong the life of the connector, it is advisable to protect it when unplugged. Therefore, avoid leaving the connector in contact with abrasive or dirty surfaces, or subjecting it to major impacts (falls).

  • Page 18: Use

    LAWN MOWER RASION 2 EASY 59_141654-E Then connect the end of the mower cord to the battery, taking care to align the alignment markers together. Screw tight and check that the cable is properly connected. Important To prolong the life of the connector, it is advisable to protect it when unplugged. Therefore, avoid leaving the connector in contact with abrasive or dirty surfaces, or subjecting it to major impacts (falls).

  • Page 19: Settings

    LAWN MOWER RASION 2 EASY 59_141654-E 5.2. SETTINGS 5.2.1. ADJUSTING THE TRAVEL SPEED This is a self-propelled mower. By activating the forward trigger (5), the motors drive the rear wheels and the mower moves forward on its own, leaving you to guide it. The revolutionary self-propelling motor provides significant help for effortless mowing of garden slopes or embankments.
  • Page 20 LAWN MOWER RASION 2 EASY 59_141654-E 5.2.2.2. AUTOMATIC ROTATION SPEED (OPTIONAL) The density sensor (14) located at the front of the mower regulates the blade rotational speed, which will vary automatically between 3000 and 5000 rpm depending on the density and height of the grass.

  • Page 21: Adjust The Cutting Height

    LAWN MOWER RASION 2 EASY 59_141654-E 5.2.3. ADJUST THE CUTTING HEIGHT The cutting height can be adjusted using the cutting height adjustment handle (15) which allows you to select from 6 different cutting heights, from 75 mm at the highest to 25 mm at the lowest.

  • Page 22: Driving In Reverse

    LAWN MOWER RASION 2 EASY 59_141654-E 5.3.2. DRIVING IN REVERSE With one hand, press and hold down the forward speed selection knob (4). With the other hand, press the forward speed trigger (5) and hold it down. Release the forward speed selection knob (4). The mower reverses.

  • Page 23: Activate The Rotation Of The Cutting Blades

    LAWN MOWER RASION 2 EASY 59_141654-E 5.3.5. ACTIVATE THE ROTATION OF THE CUTTING BLADES Caution To avoid accidents, always keep all four wheels of the mower on the ground. Do not run when you are pushing the lawn mower. Be even more careful when mowing on bumpy and uneven ground and when the collecting bin is full.

  • Page 24: Using The Boost Function

    LAWN MOWER RASION 2 EASY 59_141654-E 5.3.7. USING THE BOOST FUNCTION The Boost function allows the cutting blades to accelerate to their maximum speed of 5000 rpm for 2.5 seconds and then return to their programmed speed. • Release and pull on the blade rotation On / Off bar (6) rapidly to activate the Boost function.

  • Page 25: Parking Brake/Transport

    LAWN MOWER RASION 2 EASY 59_141654-E 5.3.9. PARKING BRAKE/TRANSPORT When the mower is stationary and the blades are not rotating, tilt the cutting height adjustment handle (15) into “parking /transport brake” mode, to secure the mower on sloping ground or on embankments. In this position the cutter deck safety casing comes into contact with the rear wheels which are then blocked.

  • Page 26: Inclinometer

    LAWN MOWER RASION 2 EASY 59_141654-E Note If the security key is not inserted, the following flashing error code appears. Note If the key is pulled out or not detected, the lawn mower will stop immediately. To restart the mower, turn off the battery, insert the safety key in its socket and turn the battery back on.

  • Page 27: Operating Tips

    LAWN MOWER RASION 2 EASY 59_141654-E Bright flashing error code for safety shutdown: Caution If the cutting blades are already operating, turning the mower to a vertical position or turning it over will not stop them. 5.5. OPERATING TIPS To get the best results when mowing a lawn and save time you should follow a certain method. Mow from the edge to the center.

  • Page 28: Cutting Height

    LAWN MOWER RASION 2 EASY 59_141654-E 5.5.2. CUTTING HEIGHT The cutting height depends both on the type of lawn that has been sown and the aesthetic appearance you wish to obtain: For a recreational lawn, (family garden), mow to a height of 35 to 75 mm.

  • Page 29: Mowing With Collection

    LAWN MOWER RASION 2 EASY 59_141654-E 5.5.5. MOWING WITH COLLECTION Using the collecting bin allows you to have a clean lawn more quickly, without having to go over it a second time with a rake to collect the cut grass.

  • Page 30: Mowing Waste

    LAWN MOWER RASION 2 EASY 59_141654-E 5.5.7. MOWING WASTE 5.5.7.1. LEFT IN PLACE For a recreational lawn, you can leave the cuttings in place if you mow regularly as the cutting height will be lower and the grass finely cut.

  • Page 31: Maintenance

    LAWN MOWER RASION 2 EASY 59_141654-E 6. MAINTENANCE 6.1. MAINTENANCE FREQUENCY Frequency Elements concerned Operations Notes Visual check General appearance Cleaning Handles / Triggers Operation Fastenings (other Clamping than blades) Check that no debris is clogging the cutter deck Cleaning...

  • Page 32: Cutting Blades

    LAWN MOWER RASION 2 EASY 59_141654-E 6.2.1. CUTTING BLADES The cutting blades ensure the grass is cut cleanly. A high quality mow cuts the grass cleanly without ripping or shredding. Any bent, worn or perforated blades must be changed. Caution Always disconnect the lawn mower from the battery before working on the cutting blades.

  • Page 33: Cleaning The Casing Deck

    LAWN MOWER RASION 2 EASY 59_141654-E Replacing the blades In case of excessive vibration, replace the blades. Unscrew and remove in order the 19mm nut, the Belleville washer and the cutting blade. Note The direction of loosening is always the opposite of the arrows engraved on the cutting blade.

  • Page 34: Cleaning The Wheels

    LAWN MOWER RASION 2 EASY 59_141654-E 6.2.3. CLEANING THE WHEELS The lawn mower's wheels are particularly susceptible to clogging. Grass stalks, dust and mowing residues stick to the outer tires of the wheels and reduce the adhesion of the machine.

  • Page 35: Replacement Of Worn Parts

    LAWN MOWER RASION 2 EASY 59_141654-E 6.3. REPLACEMENT OF WORN PARTS 6.3.1. REPLACING A FRONT WHEEL Description of the part Reference FRONT WHEEL KIT RASION 2 ONLY 159658 Loosen the front wheel retaining screw using a 25 mm Torx screwdriver and a 10 mm spanner.

  • Page 36: Incidents And Troubleshooting

    LAWN MOWER RASION 2 EASY 59_141654-E 7. INCIDENTS AND TROUBLESHOOTING...
  • Page 37 LAWN MOWER RASION 2 EASY 59_141654-E...
  • Page 38 LAWN MOWER RASION 2 EASY 59_141654-E...

  • Page 39: Storage And Transport

    LAWN MOWER RASION 2 EASY 59_141654-E 8. STORAGE AND TRANSPORT 8.1. FOLD THE MOWER INTO THE TRANSPORT POSITION Warning Always make sure the battery is turned off before folding the handlebar (7). Remove and safely store the safety key. Check that the battery is off, battery power icon off (750 / 1200/ 1500 battery).

  • Page 40: Storage

    LAWN MOWER RASION 2 EASY 59_141654-E Lock the handlebar adjustment lever (19) by pulling it forwards. Locking the transport brake. Attach the mower securely to prevent it from tipping over or moving during transport. Important Be careful not to use straps that deform the handlebar and chassis tubes.

  • Page 41: Off-Season Storage

    LAWN MOWER RASION 2 EASY 59_141654-E 8.3. OFF-SEASON STORAGE Before storing the mower for the winter, remember to have it serviced annually by an authorised dealer. Check that the battery is off, battery power icon off (750 / 1200/ 1500 battery).

  • Page 42: General Warranties

    LAWN MOWER RASION 2 EASY 59_141654-E Name Part number 750/1200/1500 battery holder kit 135161 750 Ultra Lithium battery 57191 Name Part number Alpha plate Kit 57278 PELLENC ALPHA 520 battery 57193 10. GENERAL WARRANTIES 10.1. STATUTORY WARRANTY 10.1.1. LATENT DEFECTS WARRANTY Apart from the commercial warranty provided for under Article II, Article 1641 of the French Civil Code states that "the seller is bound to a warranty on account of latent defects of the object sold which render it unfit for the use for...

  • Page 43: Pellenc Commercial Warranty

    PELLENC products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products.

  • Page 44: Implementation Of The Commercial Warranty

    Paid after-sales service also covers PELLENC original spare parts, excluding labour and outside the legal and commercial warranty period. In case of replacement of original PELLENC spare parts in the context of after-sales service, said latter are covered by a warranty of one year as from the installation date.

  • Page 45: Statement Of Compliance

    LAWN MOWER RASION 2 EASY 59_141654-E 11. STATEMENT OF COMPLIANCE 11.1. STATEMENT OF COMPLIANCE: RASION 2 MANUFACTURER / PERSON AUTHORISED TO COMPILE PELLENC THE TECHNICAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) GENERIC DENOMINATION Lawn mower FUNCTION Battery-powered self-propelled mower intended for the maintenance of...

  • Page 46: Declaration Of Conformity

    LAWN MOWER RASION 2 EASY 59_141654-E 11.2. UK DECLARATION OF CONFORMITY : RASION 2 MANUFACTURER / PERSON AUTHORISED TO COMPILE PELLENC THE TECHNICAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) GENERIC DENOMINATION Lawnmower FUNCTION Battery-powered self-propelled mower intended for the maintenance of...
  • Page 48 PELLENC Quartier Notre Dame - 84120 Pertuis (France)
