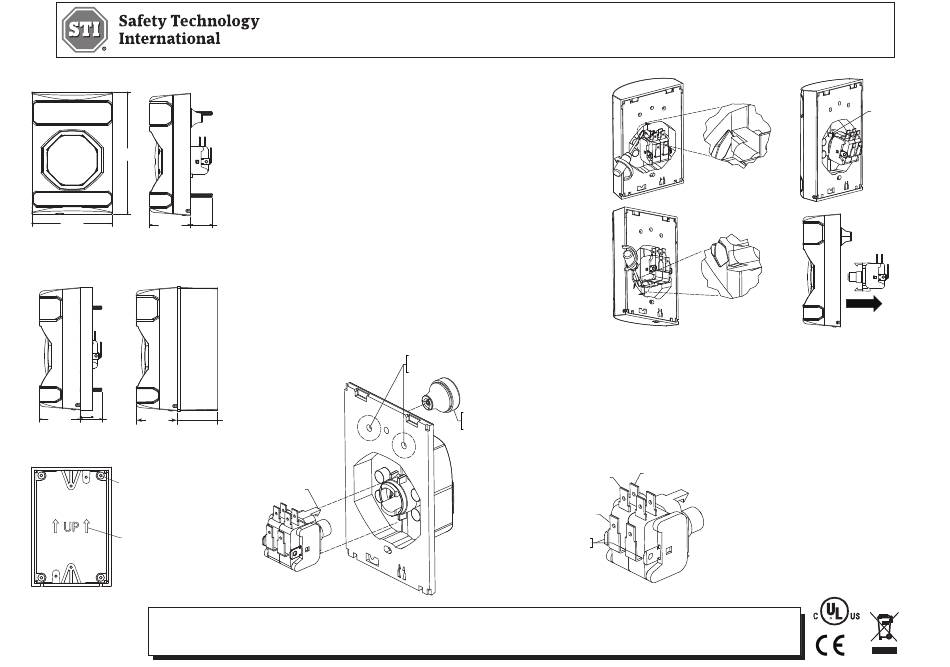

STI SS2 6 Series Quick Start Manual

DIMENSIONS
124mm
(4.9 in.)
124mm 41.3mm
(4.9 in.) (1.63 in.)
MOUNTING DIMENSIONS
SS2xx6 - suitable for flush or surface installation
SS2xx7 - suitable for surface installations ONLY
41.3mm 22.23mm 41.3mm
(1.63 in.) (.88 in.)
(1.63in.)
12mm
(.47 in.)
FLUSH SURFACE
Drill out the (4) mounting
holes, one in each corner
using 5/32in.
drill bit
Back box must be
mounted with arrows
pointing up
All specifications and information shown were current as of publication, and are subject to change without notice All specifications and information shown were current as of publication, and are subject to change without notice
European Office
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com
Install or Remove Contact Block
INSTALL
To attach, align tabs (as shown) and gently snap top
then bottom. Be sure to hear BOTH tabs snap into
place. (Can be reversed if wiring comes from the
bottom of the box.)
REMOVE
Repeat STEP A from the top and bottom tab before
pulling on contact block.
22.23mm
Step A: Position small flat screwdriver blade under
(.88 in.)
tab and gently rotate until tab disengages. The
contact block will rotate a little. DO NOT PULL YET.
Step B: Repeat for opposite tab.
Step C: When both tabs are disengaged, pull the
contact block straight off.
40mm
(1.5in.)
TOP TAB
INSTALLATION OF SS-2000 SERIES STOPPER
INSTALLATION OF SS2xx6 & SS2xx7 SERIES STOPPER
USA - Headquarters
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
E-mail: info@sti-usa.com • Web: www.sti-usa.com
DRILL POINTS FOR IP CABLE GLANDS IF
REQUIRED (FOR SS2xx7 MODELS ONLY)
IP67 CABLE GLAND SUGGESTED
(LTG-39897 SHOWN) DRILL BIT
SIZE 5/8 in. (16mm) - (FOR
SS2xx7 MODELS ONLY)
COM
LED
TERMINALS
A
Step A
B
Step B
2 momentary independent Form "C" contacts, DPDT
Rated at: 10A. 125/250VAC; 1/2 HP
Temperature SS2xx6 models: 0
Temperature SS2xx7 models: -35
NC
NO
LED connection is polarity sensitive. If
LED does not light, switch positive and
negative wiring or remove LED and
. 24 volt is included and will
o
rotate 180
operate on 12 volts; however not as
bright. 12 volt LED's are also available.
STATION
STATION
® ®
1027IS JAN2017
STEP A COMPLETED
Step C
SWITCH RATING
6A, 30 VDC
100, operations
o o o o
C to 49 C (32 F to 120 F)
o o o o
C to 66 C (-31 F to 150 F)
NOTE
ID_SS2xx6_07_Rev0320
