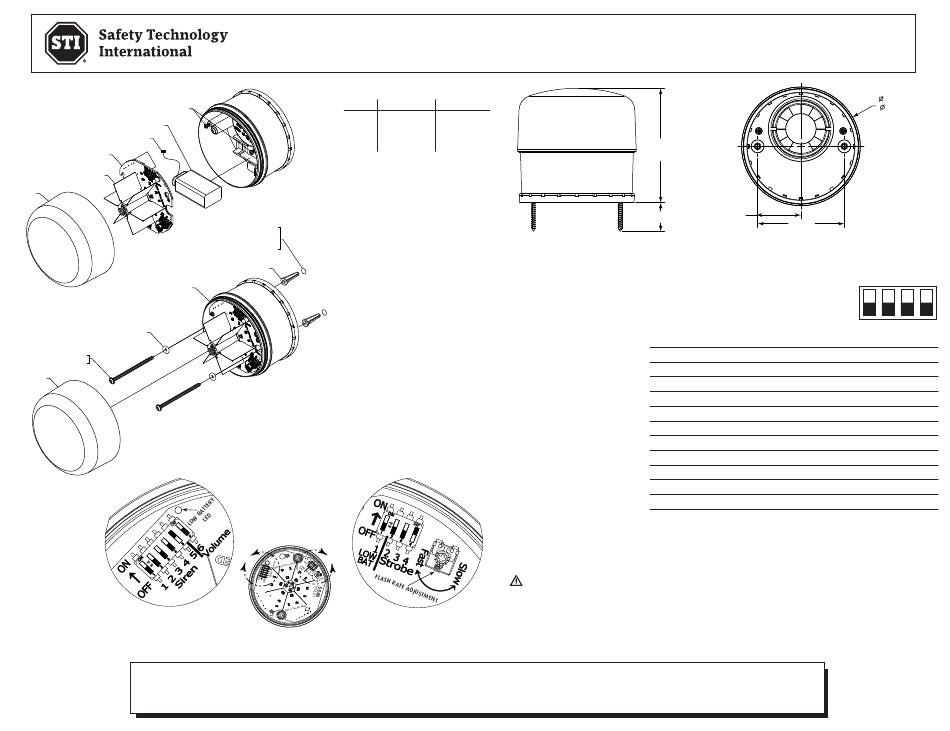

STI -SA5500 Quick Start Manual

PCB SCREWS
9 VDC BATTERY (NOT INCLUDED)
9 VDC BATTERY CONNECTOR
CIRCUIT BOARD
REFLECTORS
LENS
1 1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES 1 1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#8-10 WALL ANCHOR (2) PROVIDED
ELECTRONIC BASE
O-RING (2) PROVIDED
#6 x 2 1/2 in. SCREW
(2) PROVIDED
LENS
DETAIL S1
See pg. 2
All specifications and information shown were current as of publication and are subject to change without notice.
SPECIFICATION
Input Standby
9VDC < 14µA
12VDC < 180µA
24VDC < 170µA
Operating Temperature
-4°F to 140°F (-20°C to 60°C)
BATTERY INSTALLATION/REPLACEMENT
1. Unscrew lens to remove.
DRILL 3/16 DIA. HOLES
2. Loosen PCB screws (do not remove).
3. Gently rotate PCB without touching LED's and
without damaging the reflectors.
4. Connect battery and slide under retainer.
5. Re-install PCB and tighten screws.
NOTES
1. Internal battery will provide backup power if loss of external power.
2. If no internal battery is used, remove all power and move S2-1 to
"OFF" position (see detail S2).
LOW BATTERY OPERATON
Replace battery when low battery condition occurs,
2020_V1.6
Low battery LED flashes 1x per 1 minute and sounder
beeps 1x per 3 minutes
FAST
FLASH RATE
ADJUSTMENT
SLOW
VOL SIREN
ON
ON
ON DIP ON DIP
FAST
SLOW
1 2 3 4 1 2 3 4 5 6
OFF
VOL SIREN OFF
1 ON ON
2 3 4 1 2 3 4 5 6
OFF OFF
LOW 1 1 2 3 4 5 6
LOW 2 3 4
BAT STROBE
BAT STROBE S1 S2
LOW BATTERY LED
DETAILS S1 DETAILS S2
S1
S2

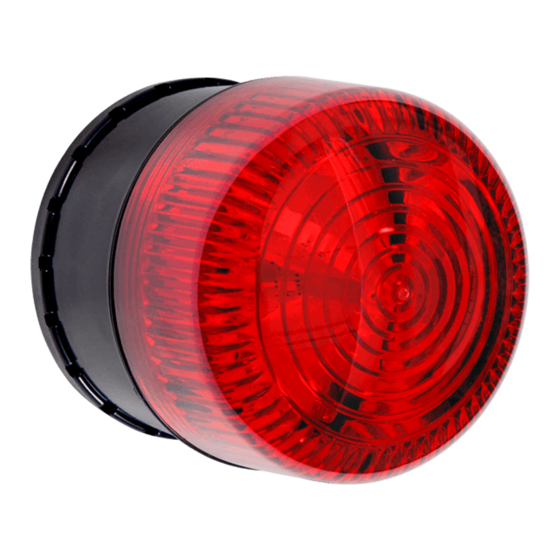

INSTALLATION OF STI-SA5500 SELECT ALERT SIREN/STROBE
Operating
0.95A
0.96A
3.73 in.
0.49A
(94.6 mm)
.94 in.
(23.8 mm)
WARNING: This product can expose you to chemicals including Dichloromethane, which is
known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the
State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
DETAIL S2
Three year warranty or a one year limited warranty (from date of purchase) on most products.
3.73 in.
(94.6 mm)
1.02 in.
.94 in.
(26.0 mm) (26.0 mm)
(23.8 mm)
2.83 in.
(71.8 mm)
S2 - LOW BAT. NOTIFICATION/STROBE CONTROL
1 2 3 4 FUNCTION
1 LOW BATTERY NOTIFICATION ON
* 0 LOW BATTERY NOTIFICATION OFF
* 0 0 0 CONTINUOUS "ON"
0 0 1 DOUBLE LED ROTATION
0 1 0 3 FLASH - DELAY - 3 FLASH
0 1 1 SINGLE LED ROTATION (FAST)
1 0 0 FLASHING
1 0 1 INTENSITY RAMPING UP & DOWN
1 1 0 SINGLE LED ROTATION (SLOW)
1 1 1 RIGHT/LEFT ROTATION
*Default Settings
SA5500IS DEC2020
3.87 in.
( 98.2 mm)
1.02 in.
2.83 in.
(71.8 mm)
1 2 3 4
1 ON
0 OFF
