STI SS2 6 Series Quick Start Manual

Illuminated stopper station push button
Hide thumbs

Advertisement

Table of Contents

Illuminated Stopper
Station
®
Push Button
Model SS2xx6
Rely on STI
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS2 6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STI SS2 6 Series

Summary of Contents for STI SS2 6 Series

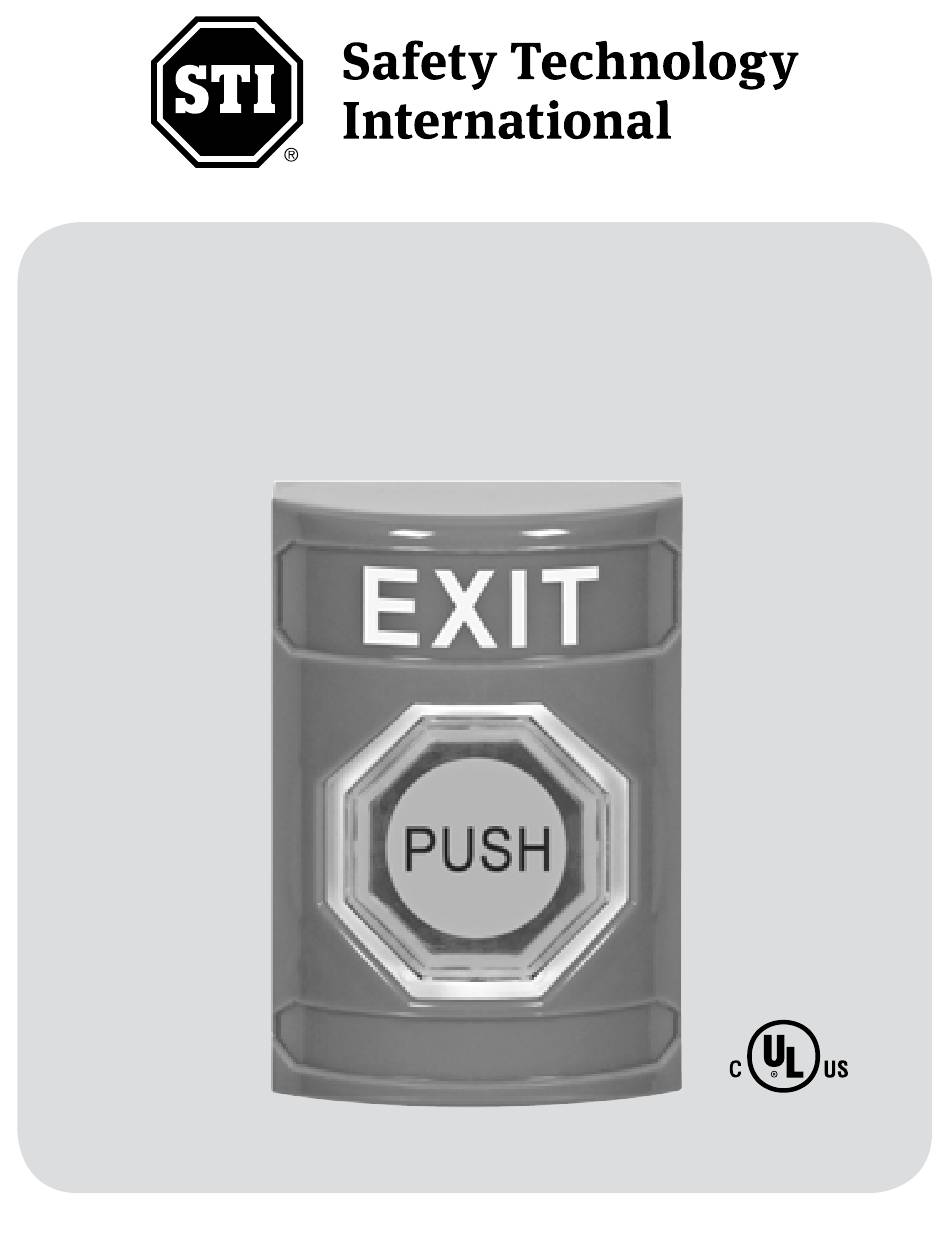

  • Page 1 Illuminated Stopper Station ® Push Button Model SS2xx6 Rely on STI ®...
  • Page 2 Dimensions 4.880 in [123.95 mm] 3.218 in 1.625 in .875 in [81.74 mm] [41.28 mm] [22.23 mm] Switch Rating 2 momentary independent Form “C” contacts, DPDT Rated at: 10A, 125/250VAC; ½ HP 6A, 30 VDC 100,000 operations Temperature: 32°F to 120°F (0°C to 49°C) NOTE connection polarity...
  • Page 3 Push buttons for outdoor use must be mounted with STI outdoor rated covers. Remarques sur l’installation: Ce bouton-poussoir a été testé selon UL2017. Il est important de lire, de comprendre et de suivre toutes les instructions fournies avec ce produit.
  • Page 4 Install or Remove Contact Block INSTALL KIT-71100 To attach, align tabs (as shown) and gently snap top then bottom. Be sure to hear BOTH tabs snap into place. (Can be reversed if wiring comes from the bottom of the box.) REMOVE Repeat STEP A for the top and bottom tab before pulling on contact block.
  • Page 5 #6-32 x 1 in. PHILLIPS HEAD MACHINE SCREW (2) PROVIDED #8-32 x 3/8 in. SCRE TOP TAB TOP TAB - 5 -...
  • Page 6 Mounting DRILL OUT THE (4) MOUNTING HOLES, ONE IN EACH CORNER, USING 5/32 in. DRILL BIT BACKBOX MUST BE MOUNTED WITH ARROWS POINTING UP 1.625 in. 1.575 in. (41.28mm) (40.01mm) - 6 -...
  • Page 7 TERMINALS Surface Mounting #6-32 x 1 in. PHILLIPS HEAD MACHINE SCREW (2) PROVIDED KIT-71100A-COLOR BACKBOX (OPTIONAL) #8-32 x 3/8 in. SCREW #6 x 1-1/4 in. PHILLIPS PAN HEAD SCREW (4) PROVIDED w/ KIT-71100A-COLOR DRILL POINT PROVIDED TOP & BOTTOM FOR 1/2 in. CONDUIT. DRILL AS NEEDED #8-10 7/8 in.
  • Page 8 Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components). Electronic warranty form at www.sti-usa.com/wc14. WARNING: This product can expose you to chemicals including Dichloromethane, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm.

This manual is also suitable for:

Stopper ss27 series
