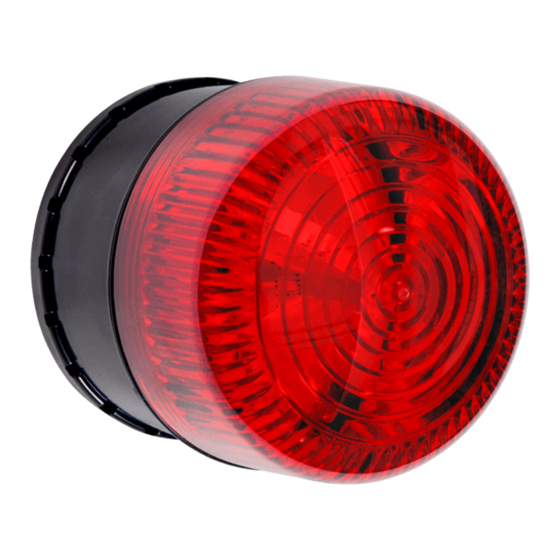

STI SA5500 Quick Start Manual

PCB SCREWS
9 VDC BATTERY (NOT INCLUDED)
9 VDC BATTERY CONNECTOR
CIRCUIT BOARD
REFLECTORS
LENS
1 1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES 1 1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#8-10 WALL ANCHOR (2) PROVIDED
ELECTRONIC BASE
O-RING (2) PROVIDED
#6 x 2 1/2 in. SCREW
(2) PROVIDED
LENS
DETAIL S1
See pg. 2
European Office
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com
SPECIFICATION
Input Standby
9VDC < 14µA
12VDC < 180µA
24VDC < 170µA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
DRILL 3/16 DIA. HOLES BATTERY INSTALLATION/REPLACEMENT
1. Unscrew lens to remove.
2. Loosen PCB screws (do not remove).
3. Gently rotate PCB without touching LED's and
without damaging the reflectors.
4. Connect battery and slide under retainer.
5. Re-install PCB and tighten screws.
NOTES
1. Internal battery will provide backup power if loss of external
power.
2. If no internal battery is used, remove all power and move
S2-1 to "OFF" position (see detail S2).
LOW BATTERY OPERATON
Replace battery when low battery condition
occurs,
Low battery LED flashes 1x per 1 minute and
sounder beeps 1x per 3 minutes
LOW BATTERY
LED
S1 S2
DETAIL S2

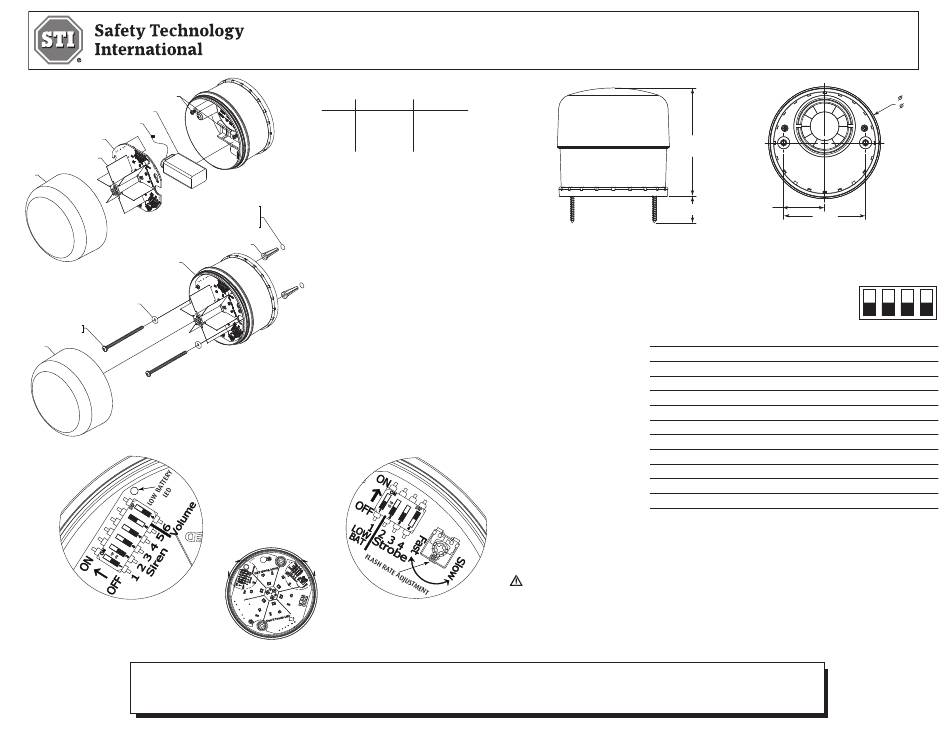

INSTALLATION OF STI-SA5500 SELECT ALERT SIREN/STROBE
All specifications and information shown were current as of publication and are subject to change without notice.
USA - Headquarters
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
Operating
0.95A
0.96A
0.49A
WARNING: This product can expose you to chemicals including Dichloromethane,
which is known to the State of California to cause cancer, and Bisphenol A (BPA),
which is known to the State of California to cause birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
Three year warranty or a one year limited warranty (from date of purchase) on most
products. See website for details. Electronic warranty form at www.sti-usa.com/wc14.
94.6 mm
(3.73 in.)
26.0 mm
23.8 mm
(1.02 in.)
(.94 in.)
71.8 mm
(2.83 in.)
1
0 OFF
S2 - LOW BAT. NOTIFICATION/STROBE CONTROL
1 2 3 4 FUNCTION
1 LOW BATTERY NOTIFICATION ON
* 0 LOW BATTERY NOTIFICATION OFF
* 0 0 0 RIGHT ROTATION
0 0 1 SINGLE LED ROTATION
0 1 0 BREATHING
0 1 1 FLASHING
1 0 0 ROTATION
1 0 1 INDIRECT FLASHING
1 1 0 DOUBLE LED ROTATION
1 1 1 CONTINUOUS
*Default Settings
SA5500IS MAR2019
