STI SELECT-ALERT SA5000 Series Instruction Manual

STI-SA5000 SERIES
SELECT-ALERT
INSTRUCTION MANUAL

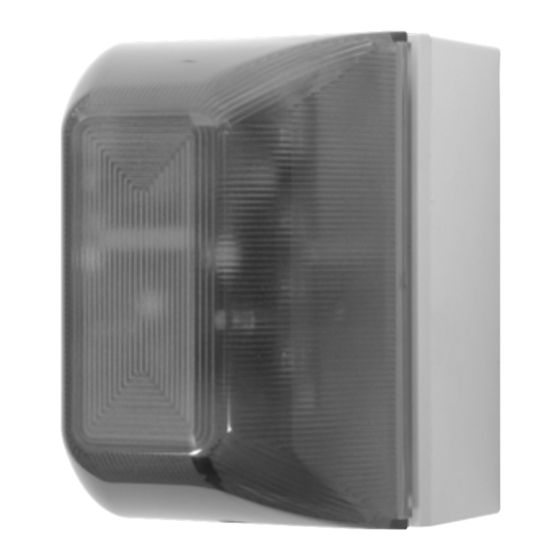

Features:
• Can be used as a cabinet alarm, door
alarm, link with push button/switch or
as a burglar alarm.
• Available with amber, green, blue, red
or white lens.
• Durable, polycarbonate construction.
• Includes ten high intensity LED's.
• Siren offers 32 user selectable tones.
• May be set for a piercing 100 dB or 85
dB alarm.
Safety Technology International, Inc.
"We Protect The Things That Protect You. "
• Independent strobe and siren timing
of 15 seconds, 30 seconds, 60 seconds
or continuous.
• Includes a tamper switch which
triggers the alarm when unit is being
removed from a wall.
• Low battery indicator.
• Powered by a 9 VDC battery (not
included) or external 12 – 30 volts.
• One Form "C" dry relay contact output.
C
ONTENTS
Warnings And Cautions ......................................................................page 3
Warranty Information ........................................................................ page 3
Dimensions ........................................................................................page 3
Specifications...................................................................................... page 4
Electronic Setup .................................................................................. page 4
Alarm Tones ........................................................................................page 5
Alarm Timing And Volume ................................................................ page 5
Terminal Strip Connections ................................................................ page 5
Mounting Options .............................................................................. page 6
Electronics .......................................................................................... page 7
S -A A P
ELECT LERT SSEMBLY ARTS
1 - 05000 Electronics Assembly
1 - 05050 Color Lens
4 - 19068 Screw #6 x 5/8 in.
4 - 19002 Screw #8-32 x 3/8 in.
2 - 19039 Screw #6 x 1 1/4 in.
2 - 19018 Anchor #8-10
2 - 19062 Screw #6-32 x 1 1/2 in.
1 - 19011 #8-32 x 1/2 in. tamper screw
1 - 19016 Tamper wrench
A
CCESSORIES
SUB-SA504 Backbox kit
18151 N.C. reed switch and magnet
SUB-SA505 Key switch mounting bracket (includes key switch)
BAT-9VDC 9 volt battery
