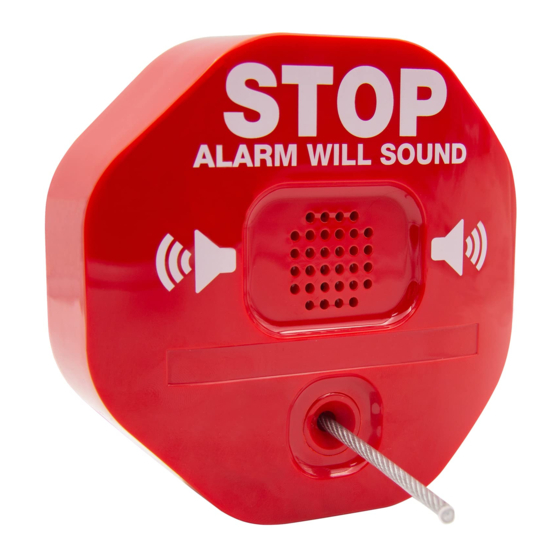

STI Theft Stopper -6200 Series Install

POLYCARBONATE COVER
VOLUME CONTROL JUMPER
SEE AUXILIARY VIEW
PRINTED CIRCUIT BOARD
#8-10 x 7/8 in.

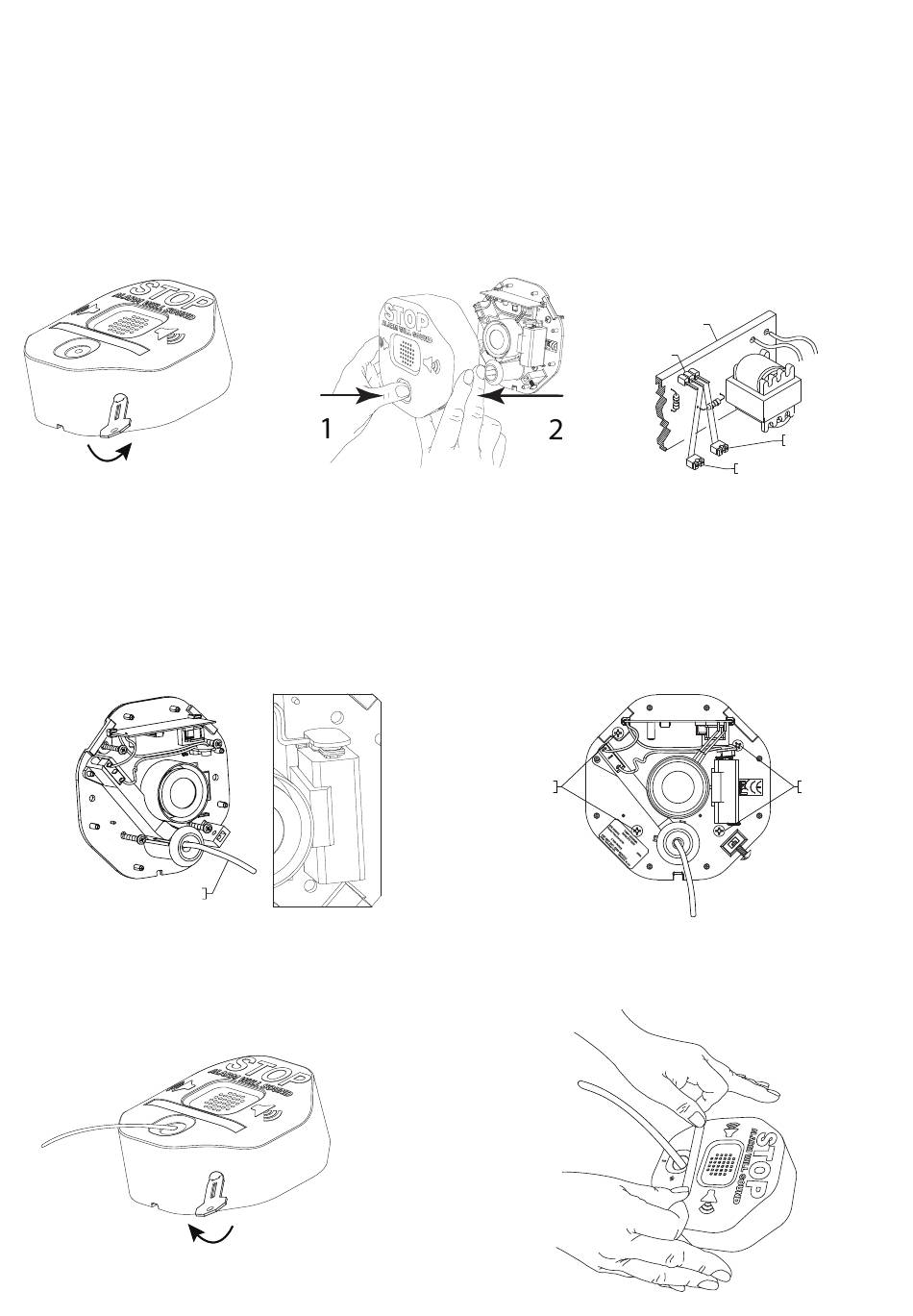

1.
PLASTIC ANCHOR
Remove security screw
(4) PROVIDED
with provided wrench.
HORN/SOUNDER
95/105dB
POLYCARBONATE BASE
4.
Unwrap battery and connect. Insert 6" service
cables into base to silence. Cable should not
exceed past base edge.
MOUNTING
HOLES
KIT-18015-9
DEACTIVATION/SERVICE CABLE
6.
Replace cover, snap lid from top,
secure with security screw.
9 VOLT BATTERY
Theft Stopper
2.
To remove cover from base,
push with thumb to separate
#8 x 1 in. SCREW
(as shown).
(4) PROVIDED
KIT-18015-9 DEACTIVATION/SERVICE CABLE
OPTIONAL LANGUAGE LABEL
VIEW SHOWING BATTERY
Install
STI-6200 Series
Rely on STI
®
9 VOLT BATTERY
#8-32 x 3/8 in.
TRUSS HEAD TAMPER SCREW
KIT-H19016 TAMPER WRENCH
5.
Position base. Mark and drill four (4) holes 1"
(25mm) deep. Using plastic anchor, drill 3/16"
(4.5mm). Install into wood or steel: drill 9/64"
(3.5mm). Mount using (4) M4 x 25mm screws.
NOTE: Cable is approximately 16" – 18" long.
MOUNTING
HOLES
7.
Apply language label if desired.
9 VOLT BATTERY
5.375 in.
(137mm)
®
5.375 in.
(137mm)
3.
Select volume setting by
shifting black cap.
CIRCUIT BOARD
VOLUME
CAP ON 2 LEFT PRONGS
FOR LOW VOLUME
VIEW SHOWING JUMPER LOCATION
FOR VOLUME SETTTINGS
CABLE
16"-18" CABLE
REPLACEMENT
2 in.(51mm) DEPTH
2 in.(51mm) DEPTH
CAP ON 2 RIGHT PRONGS
FOR HIGH VOLUME (DEFAULT)
MOUNTING
HOLES
DEACTIVATION/
