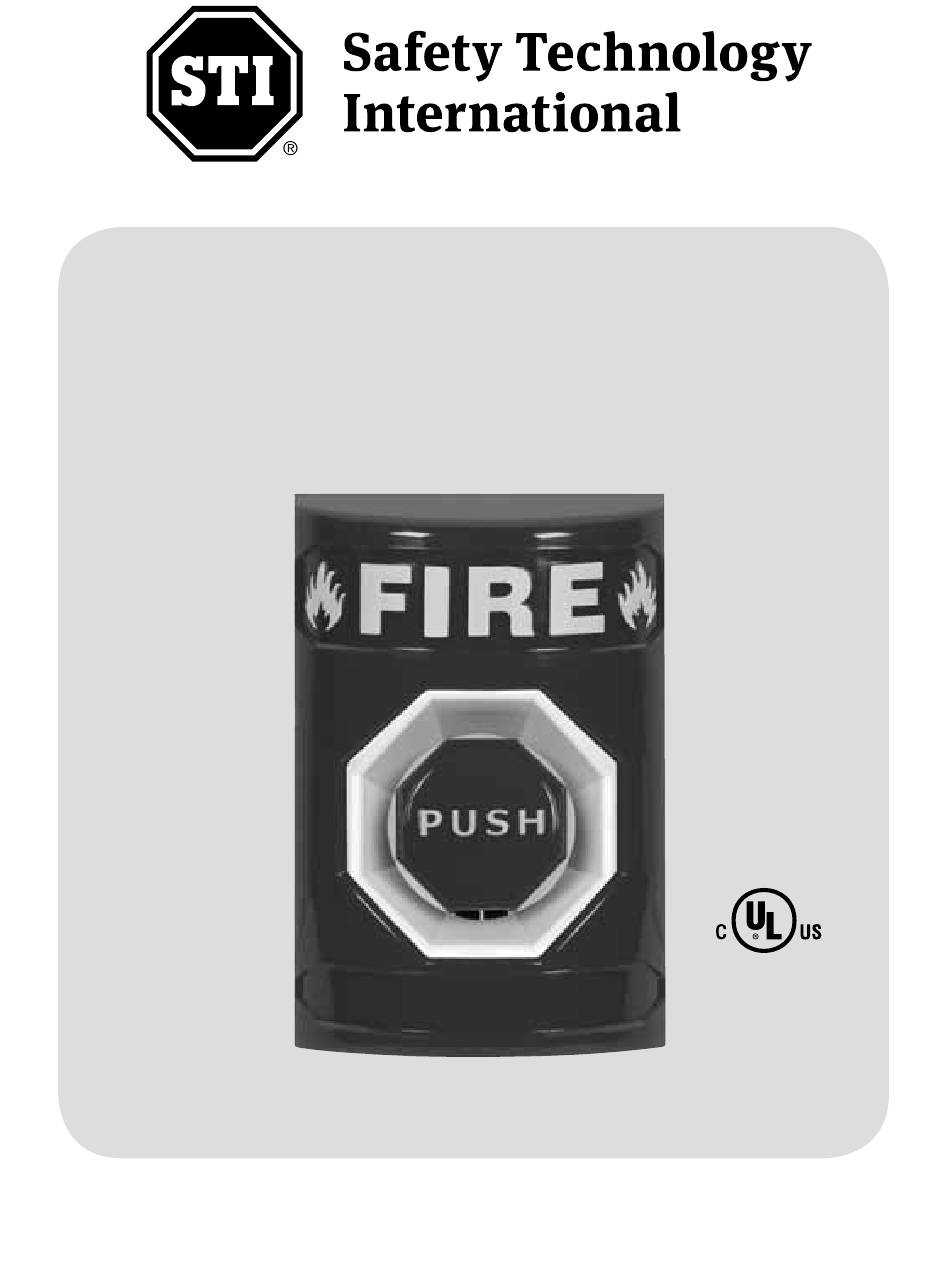

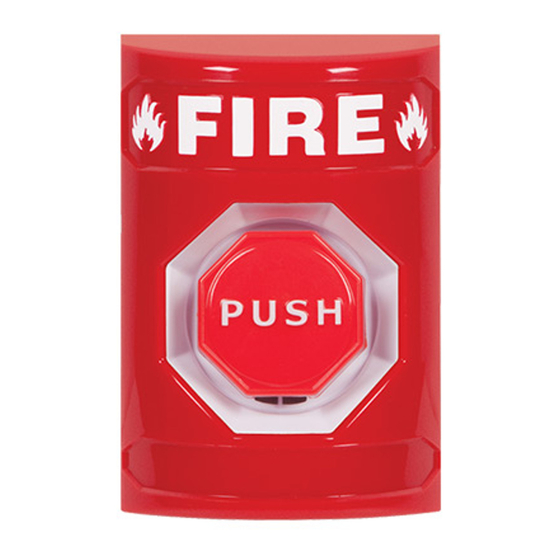

- Page 1 Stopper Station Series SS-2002F Push Buttons Key-to-Reset for operation We protect the things that protect you. ®...
- Page 2 To avoid electrical shock, DO NOT attempt to install this product when power is on. For outdoor usage, STI-6525 or STI-6535 Mini Weather Stopper Cover is required. I. GENERAL...
- Page 3 HOUSING REMOVAL BUTTON AND SWITCH ASSEMBLY SWITCH HOUSING ALLEN HEAD SCREW 3/32” HEX WRENCH #8-32 x 3/8 in. (1) PROVIDED (1) PROVIDED REMOVE SCREW. PULL BOTTOM OF HOUSING OUT AND LIFT UP UNTIL TABS ARE RELEASED FROM SLOTS IN TOP OF SWITCH ASSEMBLY. - 3 -...
- Page 4 BACKBOX PREPARATION (NOT INCLUDED WITH FLUSH MOUNT COVERS) DRILL POINT LOCATIONS PROVIDED TOP AND BOTTOM FOR 1/2 in. CONDUIT FITTINGS. DRILL AS NEEDED 10271 SWITCH HOUSING RED, GREEN, YELLOW, WHITE AND BLUE 19011 SCREW ALLEN HEAD #8-32 x 3/8 (1) PROVIDED 19015 WRENCH Field drilling for conduit entry is required.
- Page 5 CORRECT METHOD OF WIRE CONNECTIONS INSERTING MULTIPLE LEADS (1 WIRE EACH SIDE OF SCREW) CONTACT SET 1 CORRECT METHOD OF INSERTING MULTIPLE LEADS (1 WIRE EACH SIDE OF SCREW) CONTACT THIS SIDE SET 2 CONTACT SET 2 THIS SIDE CONTACT SET 1 STRIP 3/8 in.
- Page 6 INSTALLATION ANCHOR (4) PROVIDED KIT-71100A-COLOR SURFACE BOX DRILL (4) 3/16 in. SCREW #6 x 1-1/4 in. DIA HOLES (4) PROVIDED SCREW #6-32 x 1 in. (2) PROVIDED GROUND SCREW BUTTON AND SWITCH ASSEMBLY INSTALLATION NOTE ADA mounting compliance TYPICAL FLUSH MOUNT requires the operable part of GROUND SCREW SINGLE GANG OUTLET BOX...
- Page 7 ALIGN SLOT IN KEY KEY RESET PROCEDURE (CONCAVE SIDE UP) WITH 2 SLOTS UNDER BUTTON KEY-TO-RESET SLOT LOCATED UNDER BUTTON KEY-TO-RESET SLOT LOCATED UNDER BUTTON PUSH IN UNTIL BUTTON POPS UP. SWITCH IS NOW RESET VIEW IN DIRECTION OF ARROW A PART #KIT-H18061 ALIGN SLOT IN KEY (CONCAVE SIDE UP)
- Page 8 WARRANTY Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components). Electronic warranty form a www.sti-usa.com/wc14. WARNING: This product can expose you to chemicals including Bisphenol A, which is known to the State of California to cause reproductive harm and Dichloromethane, which is known to the State of California to cause cancer.
