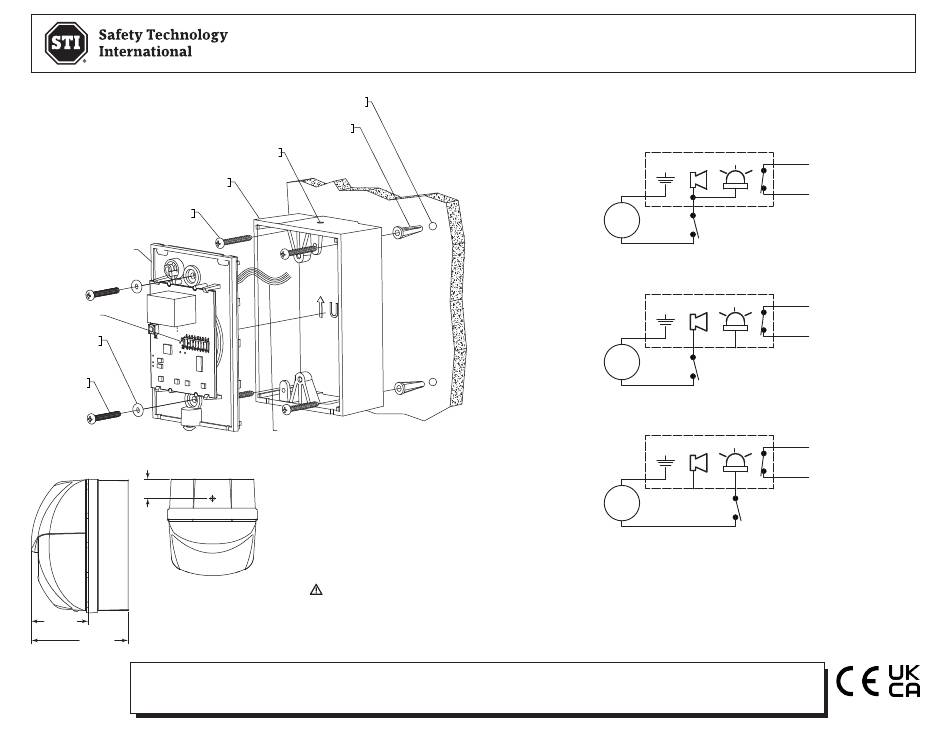

STI -SA5600 Installation

DRILL POINT LOCATION PROVIDED TOP AND BOTTOM
FOR 1/2" CONDUIT FITTINGS. DRILL AS NEEDED.
OPTIONAL SURFACE MOUNT ELECTRICAL BOX
(KIT-71100A SHOWN)
#6 x 1.25 in. SCREW
A
(4) PROVIDED WITH KIT-71100A
SIREN STROBE ELECTRONIC BASE
SWITCH SETTINGS
SEALING O-RING
(2) PROVIDED
SCREW #6-32 x 1 in.
(2) PROVIDED
.73 in.
(18.5mm)
2.10 in.
(53.3mm)
FLUSH MOUNT 3.58 in.
(90.8mm)
KIT-71100A
All specifications and information shown were current as of publication and are subject to change without notice.
2306 Airport Road
Waterford • Michigan • 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
E-mail: info@sti-usa.com • Web: www.sti-usa.com
WHEN USING ANCHORS
DRILL (4) 3/16 in. DIA. HOLES 1-1/4 DEEP
WALL ANCHOR
(4) PROVIDED WITH KIT7110A
STROBE SIREN VOLUME
WIRE LEADS
Housing Installation
1. Loosen screw with 3/32 HEX KEY.
2. Pull bottom of housing out and lift up until tabs are
released from slots in top of siren/strobe assembly.
Wire Connections
WHITE - TAMPER
GREEN - TAMPER
BLUE - STROBE
YELLOW - SIREN
BLACK - GROUND
WARNING: This product can expose you to chemicals including Dichloromethane, which is known to the
State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to
cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Three year warranty or a one year limited warranty (from date of purchase) on most products. See
website for details. Electronic warranty form at www.sti-usa.com/wc14.

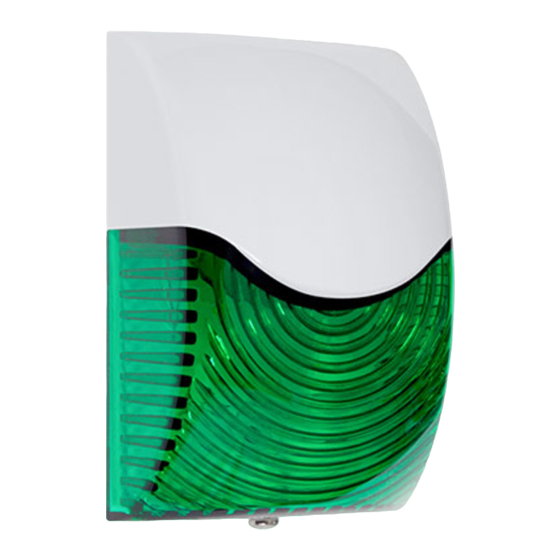

INSTALLATION OF STI-SA5600 SELECT ALERT SIREN/STROBE
INPUT Control W/POWER SUPPLY
12-24 VDC, 504 mA Max.
- Alarm on trigger close
LENS TAMPER
N.C. DRY CONTACT
0.05 A @ 12 VDC
OPERATING TEMPERATURE
-4°F TO 140°F (-20°C TO 60°C)
-
+
-
+
-
+
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: +44 (0)1527 520 999 • Fax: +44 (0)1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com
CONTROL W/POWER SUPPLY
ALARM ON TRIGGER CLOSE
SIREN
STROBE & SIREN
GREEN
YEL (+) BLU (+)
BLK (-)
WHITE
TRIGGER
(NOT PROVIDED)
SIREN
SIREN ONLY
GREEN
YEL (+) BLU (+)
BLK (-)
WHITE
TRIGGER
(NOT PROVIDED)
STROBE
STROBE ONLY
GREEN
YEL (+) BLU (+)
BLK (-)
WHITE
TRIGGER
(NOT PROVIDED)
SA5600IS JAN2021
TAMPER SWITCH TO
SUPERVISORY PANEL
(OPEN DOES NOT SOUND
ALARM)
TAMPER SWITCH TO
SUPERVISORY PANEL
(OPEN DOES NOT SOUND
ALARM)
TAMPER SWITCH TO
SUPERVISORY PANEL
(OPEN DOES NOT SOUND
ALARM)
