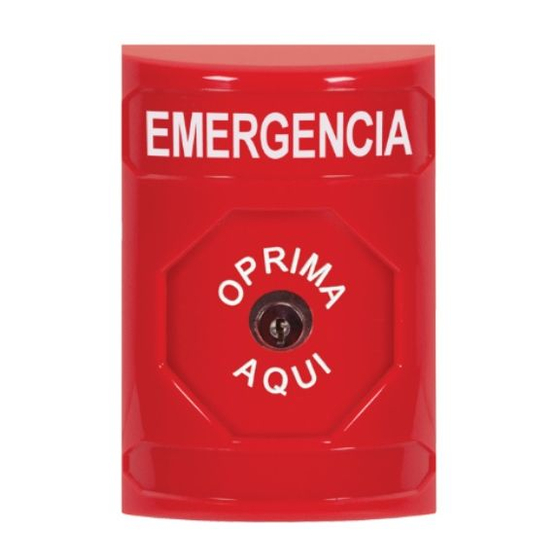

STI Fire Stopper Series Installation

Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
®
INSERT TERMINAL
BLOCK NOTCH AS
SHOWN AND ROTATE
UPWARD.

INSTALLATION OF TERMINAL BLOCKS

.69 in.
(17mm)

REMOVAL OF TERMINAL BLOCKS

PRY BACK LEVER 'A' IN
DIRECTION OF ARROW
THEN USING A FLATHEAD
SCREW DRIVER, INSERT
AS SHOWN AND ROTATE
A
UPWARD.
All specifications and information shown were current as of publication, and are subject to change without notice.
STANDARD SINGLE OUTLET BOX
NOTE: TO MOUNT STOPPER STATION ON A STANDARD
OUTLET BOX SUB-102722-R IS REQUIRED
SUB-102722-R
PLASTIC SPACER MOLDED
IN RED (OPTIONAL)
TERMINAL BLOCK ASSEMBLY
10197H CONTACT HOLDER
BUTTON LOCK NUT

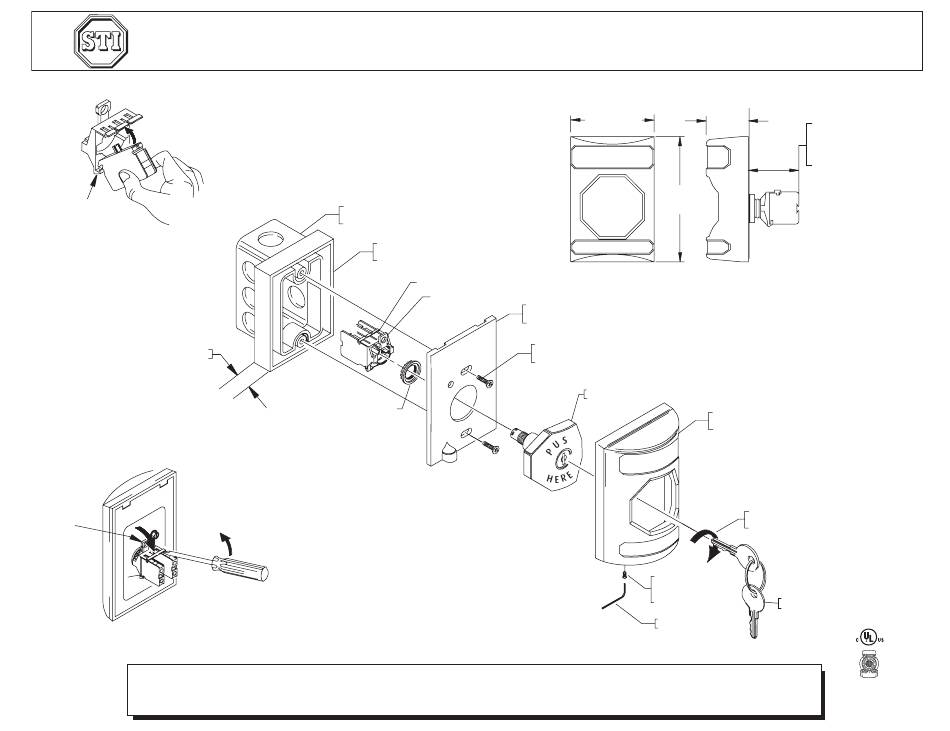

INSTALLATION OF SS-2000 FIRE SERIES STOPPER
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
PRODUCT DIMENSIONS
3.25 in. (82mm)
4.87 in. (124mm)
BACKPLATE ASSEMBLY
WITH STAINLESS STEEL
GROUND PLATE AND LUG
SCREWS (2) PROVIDED
19010 #6-32 x 1 in. WITHOUT SUB-102722-R
19045 #6-22 x 1 1/2 in. WITH SUB-102722-R
MOLDED BUTTON
WITH KEY RESET
E
F I R
19001 HOUSING
RETENTION SCREW
#8-32 x 3/8 in.
(1) PROVIDED
19015 3/32 in. ALLEN
WRENCH (1) PROVIDED
® STATION
1.62 in.
TO PROVIDE ADEQUATE
(41mm)
CLEARANCE FOR INSTALLATION
TO ANY STANDARD SINGLE
2.25 in.
GANG OUTLET BOX,
(57mm)
STI RECOMMENDS THE USE OF
SUB-102722-R SPACER.
MOLDED
POLYCARBONATE
FACEPLATE
E
F I R
TURN CLOCKWISE
ONE QUARTER TURN
TO RESET
19030 KEY
(2) PROVIDED
ADA
compliant
SHEET 1
10277IS JAN99
