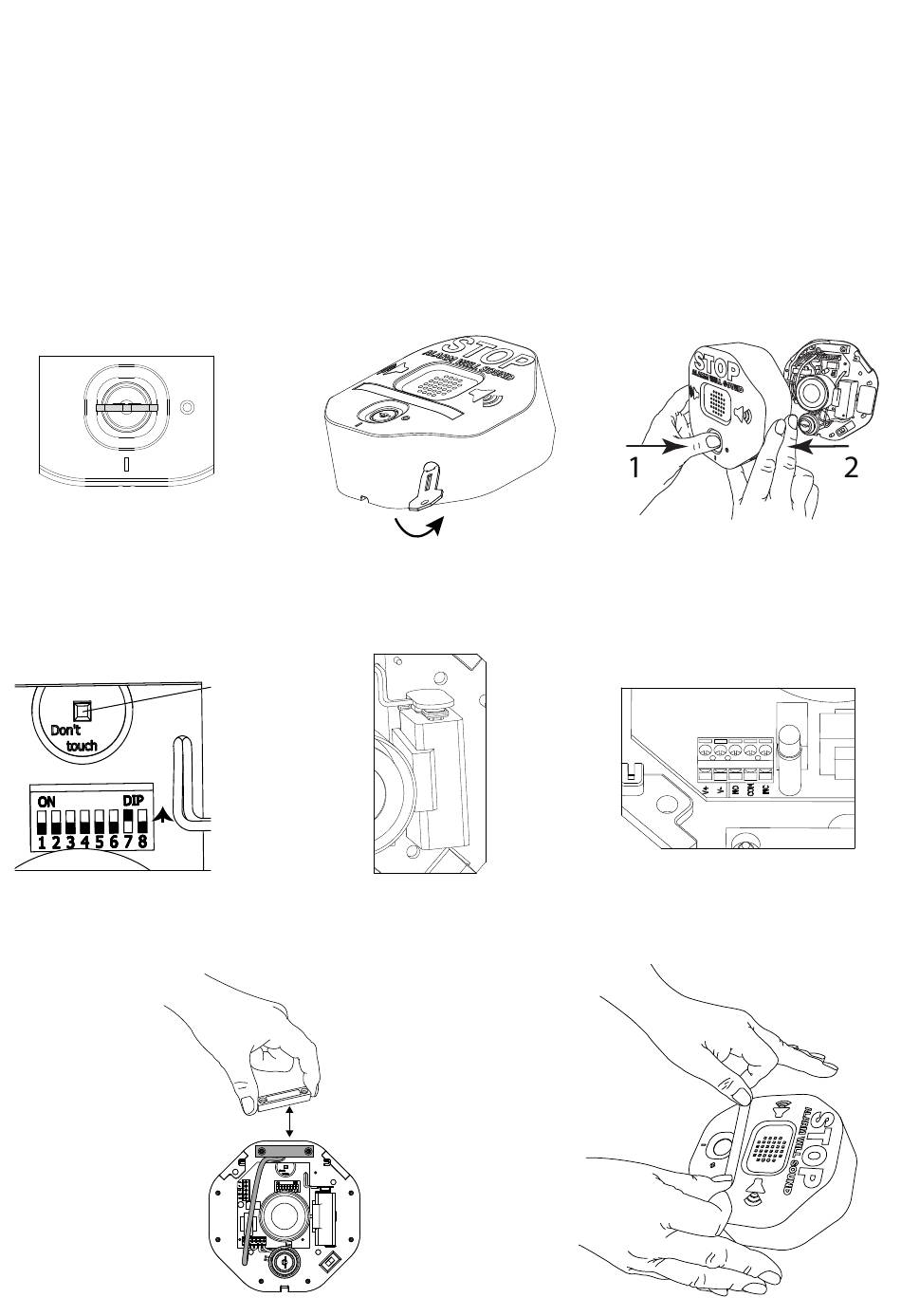

SET UP
1.
Key in OFF position
4.
Choose setting – refer
to switch table, default
settings shown side 2
ON
OFF
7.
Test – place magnet next to reed, turn key
switch on, separate magnet from reed

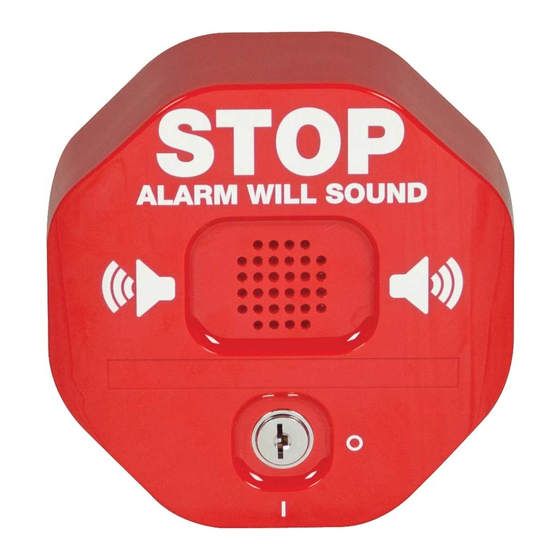

Exit Stopper
Quick Install
STI-6400 Series
2.
Remove security screw with
provided wrench
5.
Unwrap battery
and connect
LED
LED -
DO NOT TOUCH
Do Not Touch
Rely on STI
®
6.
®
3.
Remove cover from base,
push on lock to separate
Terminal block (remote power and
relay options) – refer to full install
online for wiring connections
8.
Apply language label if desired
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for STI Exit Stopper STI-6400 Series
Summary of Contents for STI Exit Stopper STI-6400 Series
- Page 1 Exit Stopper ® Quick Install STI-6400 Series Rely on STI ® SET UP Key in OFF position Remove security screw with Remove cover from base, provided wrench push on lock to separate Choose setting – refer Unwrap battery Terminal block (remote power and...
- Page 2 Phone: 248-673-9898 • Fax: 248-673-1246 info@sti-usa.com • www.sti-usa.com Taylor House • 34 Sherwood Road • Bromsgrove, Worcestershire • B60 3DR • England Tel: +44 (0)1527 520 999 • Fax: +44 (0)1527 501 999 • info@sti-emea.com • www.sti-emea.com Subject to change 6400 QUICK INSTALL without notice.
