Mounting
1. Install a 2" x 4" metal or plastic enclosure mounted near the fan unit.
2. Install the controller in the box using the provided hardware.
3. Check that air moves freely over the heat sink faceplate.
Wiring
he CEE-3009 and 3010 are designed to work with a
T
CSE-1002 Static Pressure Controller. The CEE-3010
uses 0 to 10 VDC input from a KMC Digital
Controller.
1. Complete connections per the wiring diagram(s).
2. Branch circuit protection (fuses or circuit
breakers) is required.
a. Voltage equal to or greater than the drive's.
b. Current equal to or less than four (4) times the
drive's full load rating.
3. Grounding is through the mounting screws to the
grounded enclosure.

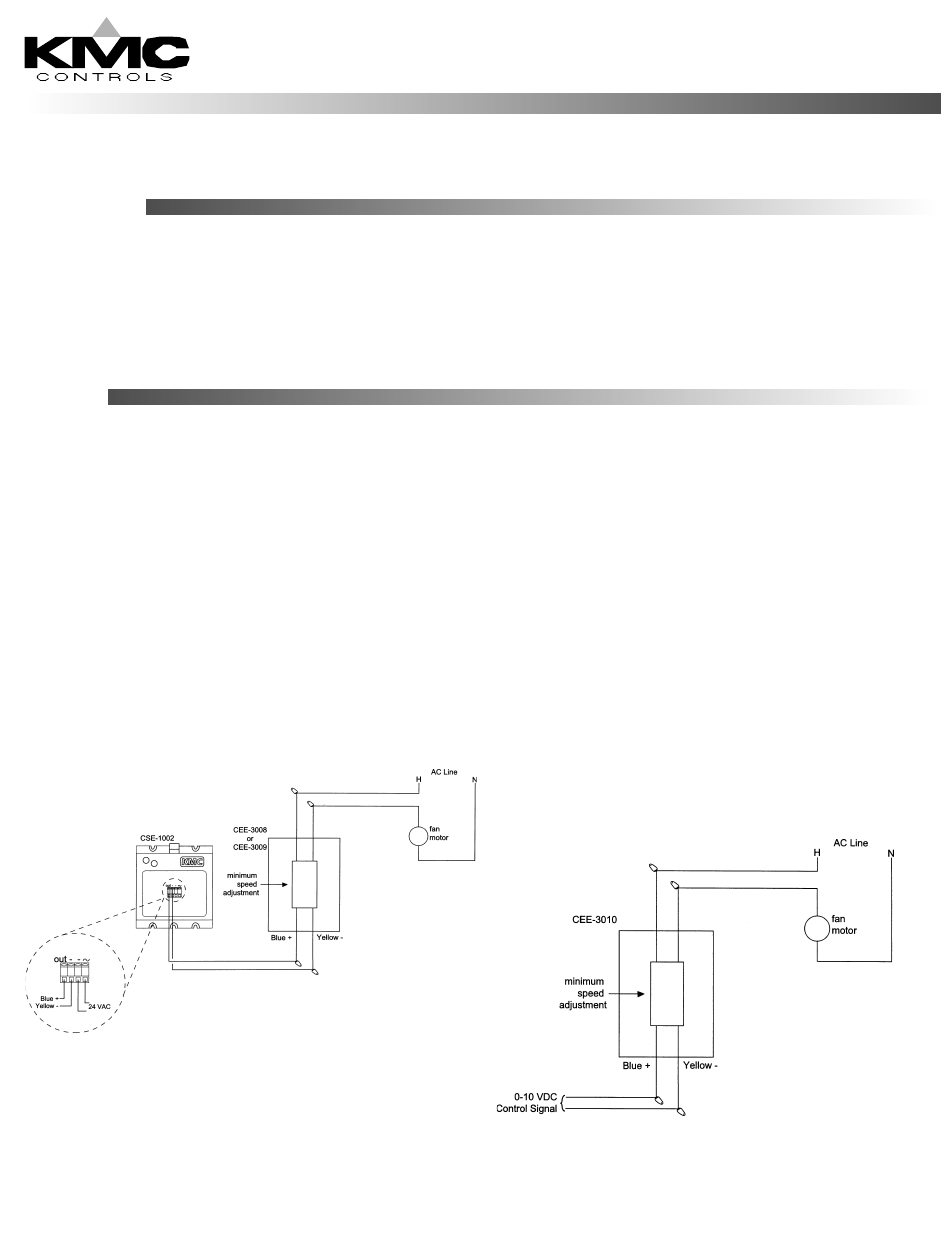

CEE 3009 with CSE-1002 Static Pressure Controller
Installation Guide
Fan Speed Controllers
CEE-3009, 3010
CEE-3010
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for KMC Controls CEE-3009
Summary of Contents for KMC Controls CEE-3009
- Page 1 2. Install the controller in the box using the provided hardware. 3. Check that air moves freely over the heat sink faceplate. Wiring he CEE-3009 and 3010 are designed to work with a CSE-1002 Static Pressure Controller. The CEE-3010 uses 0 to 10 VDC input from a KMC Digital Controller.
- Page 2 3. Adjust the potentiometer to the desired minimum speed. CAUTION! CEE-3009 Shown The fan speed controller will allow the fan motor to stall. Maximum current occurs at less than full fan speed. Do not set the minimum speed at less than 1/2 full synchronous speed.
