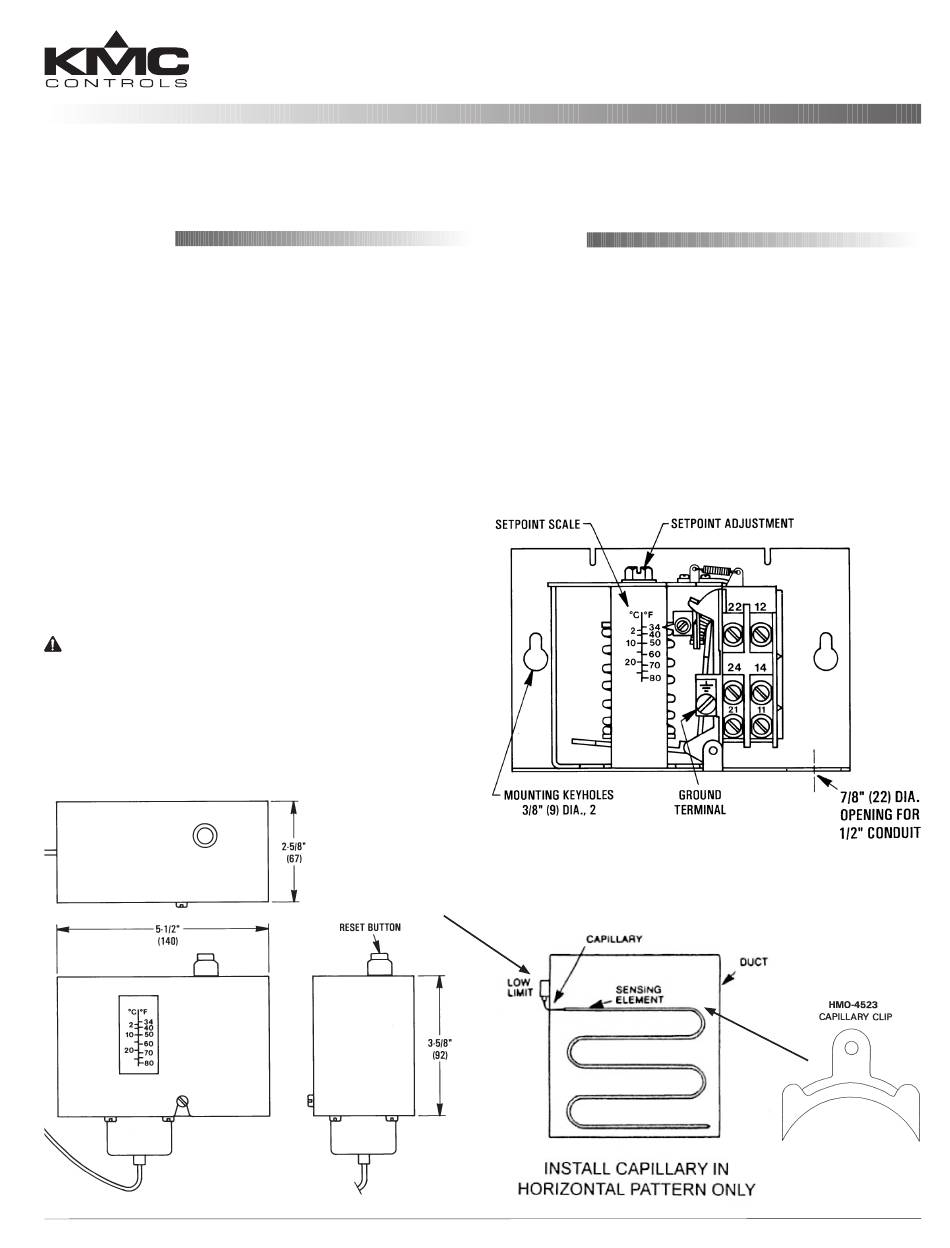

KMC Controls CTE-3017 Installation Manual

Mounting
The controller can be mounted in any position,
but avoid locations subject to excessive vibration.
For manual reset models, position the controller to
permit convenient access to the reset button.
1. Loosen the front screw and remove the cover.
2. Using the two 3/8" mounting keyholes, mount
the case flush against the duct work or any flat
surface.
3. Install the sensing capillary in a horizontal
serpentine fashion across the downstream side of
a water coil.
4. Using the included HMO-4523 capillary clips,
support the sensing capillary at sufficient points
to prevent damage from vibration and/or air
movement.
CAUTION
Do not kink or apply excessive force to the capillary
element.
5. Make the appropriate connections to the terminal
blocks. (See the Wiring section.)
CTE-3016/3017/3026/3027
Installation Guide
Wiring
An opening for installing a connector for 1/2" conduit
is provided in the bottom of the case.
All wiring should comply with national and local
electrical codes. Using 14 AWG solid copper wire is
recommended.
Strip wire ends 3/8", insert the wire ends under
the cup washers on the switch block, and securely
retighten terminal screws. Wire terminals according
to the Actuation and Reset section on the next page.

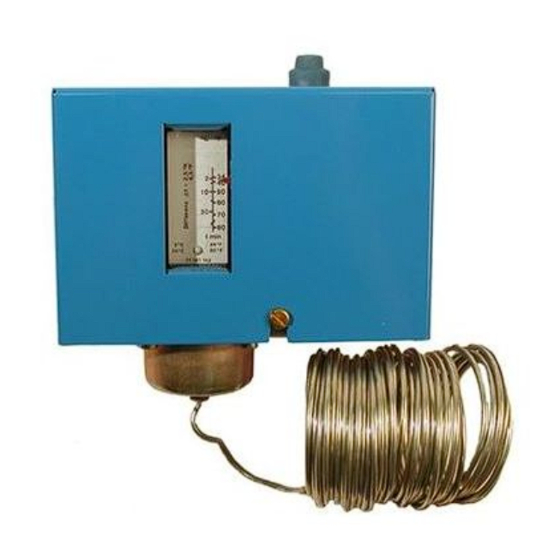

CTE-3017 Shown
1
Low Limit Controllers, DPDT
CTE-3016/3017/3026/3027
Installation Guide
