KMC Controls CTE-3017 Installation Manual

Low limit controller, dpdt

Advertisement

Quick Links

Required Tools
• digital voltmeter
• small phillips screwdriver
• small flatblade screwdriver
Mounting
1. Remove the cover

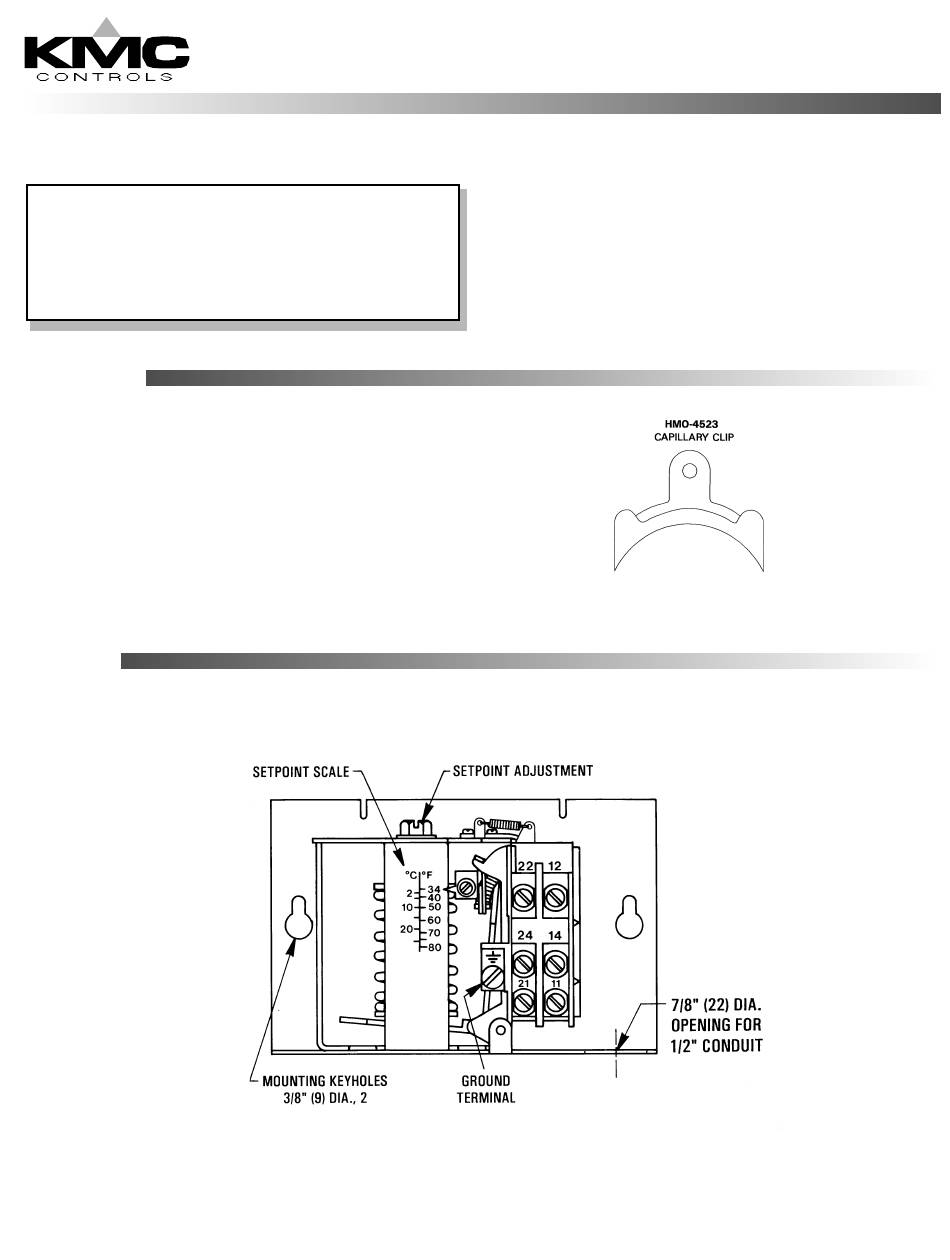

2. Using the two 3/8" mounting keyholes (see diagram below)
mount the case flush against the duct work, or any flat
surface.
3. Install the sensing capillary in a horizontal serpentine
fashion across the leaving side of a water coil.
4. Using the HMO-4523 Capillary Clip (five included), support
the sensing capillary to prevent damage from vibration and/
or air movement.
Wiring
Refer to the wiring diagram before making connections.
Installation Guide
Low Limit Controller, DPDT
CTE –3017
