Termination diagrams

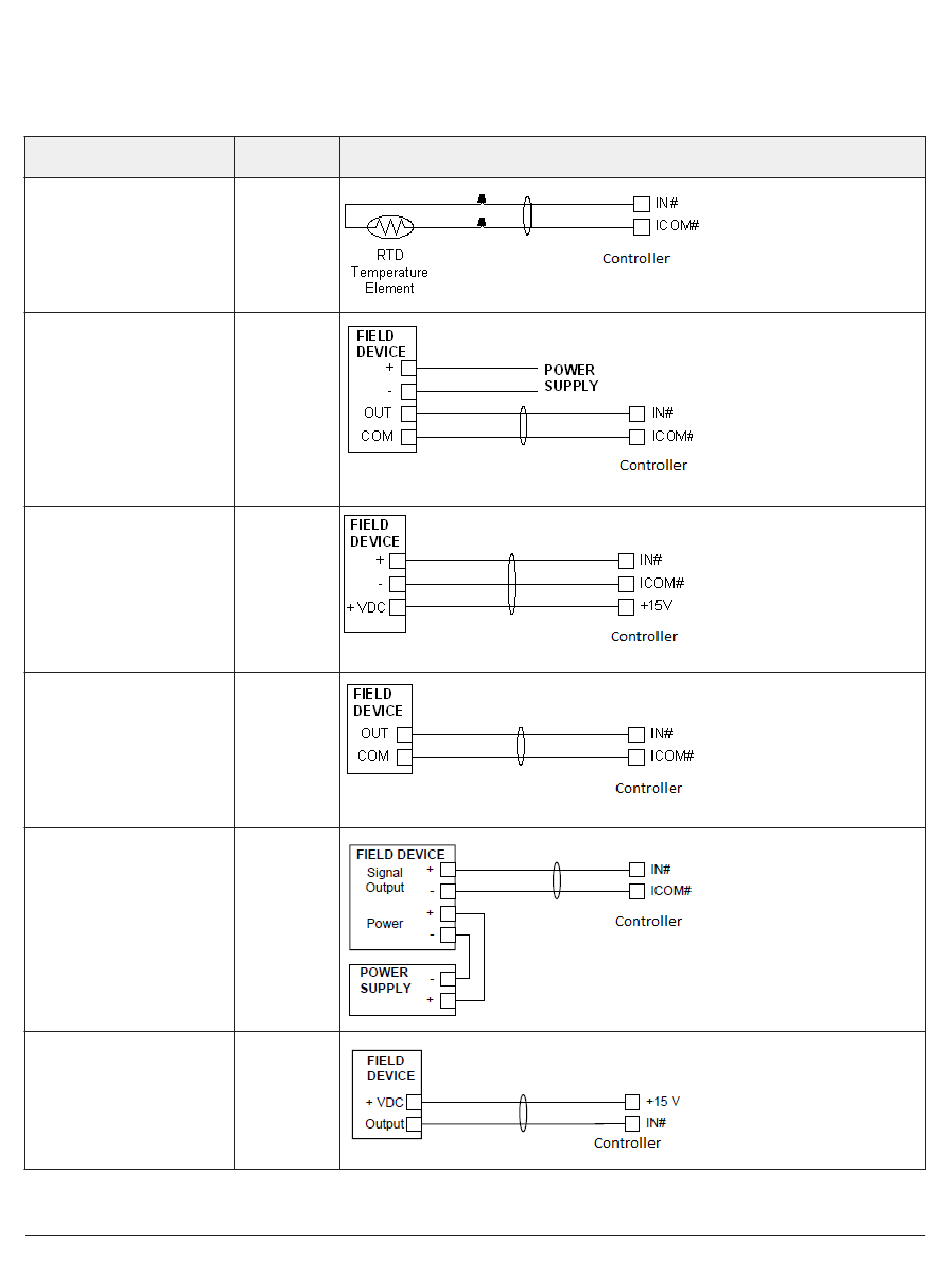

A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to the controllers. See the
figures in this section for the applicable termination diagrams.
Table 5: Termination details
Temperature Sensor
Voltage Input - External
Source
Voltage Input - Internal
Source
Voltage Input (Self-Powered) UI
Current Input - External
Source (Isolated)
Current Input - Internal
Source (2 wire)
10
Metasys System FEC1611 and FEC1621 Field Equipment Controller Installation Guide
Type of Input/
Termination diagrams
Output
UI
UI
UI
UI
UI
