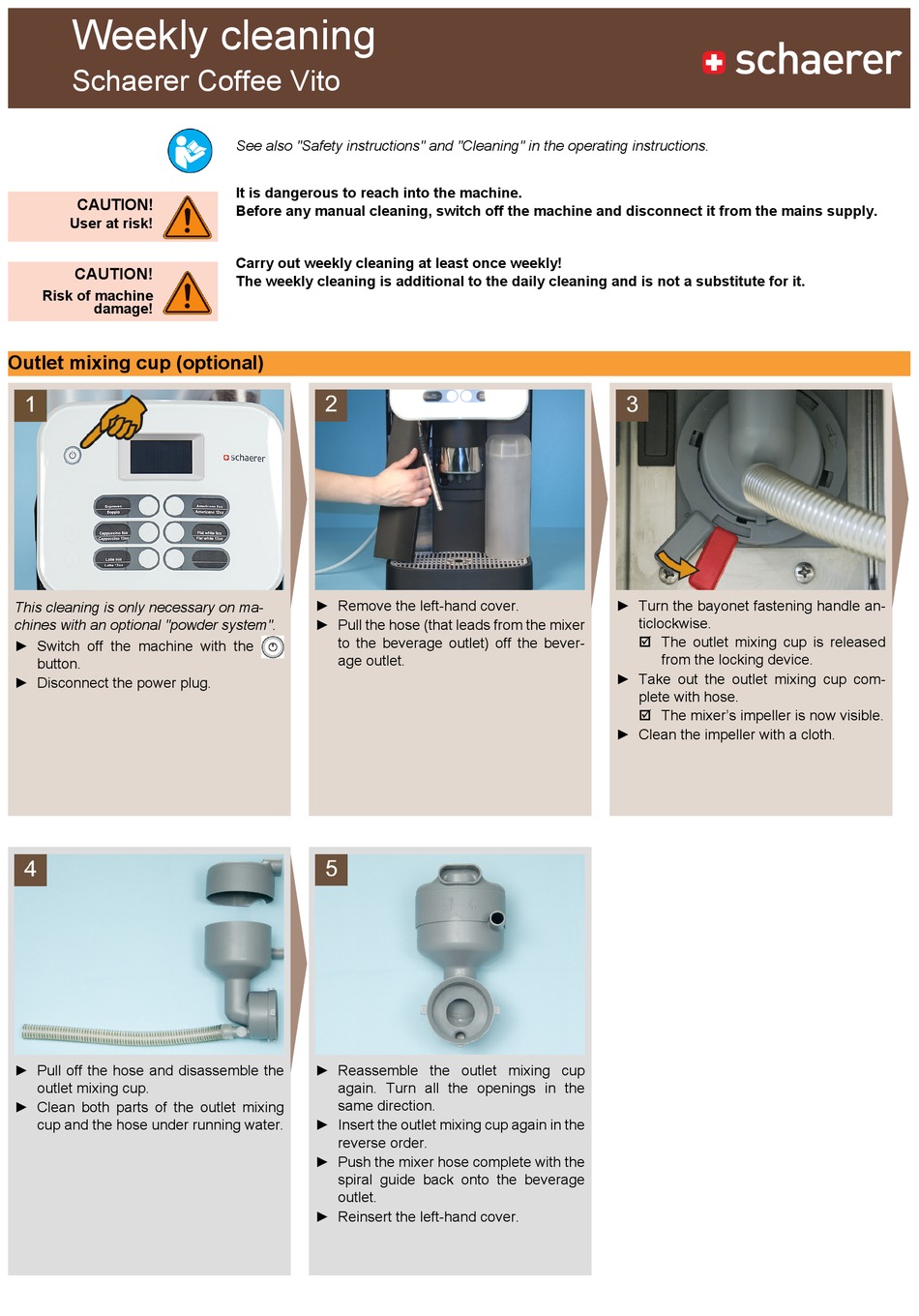

Schaerer Vito Weekly Cleaning

Weekly cleaning

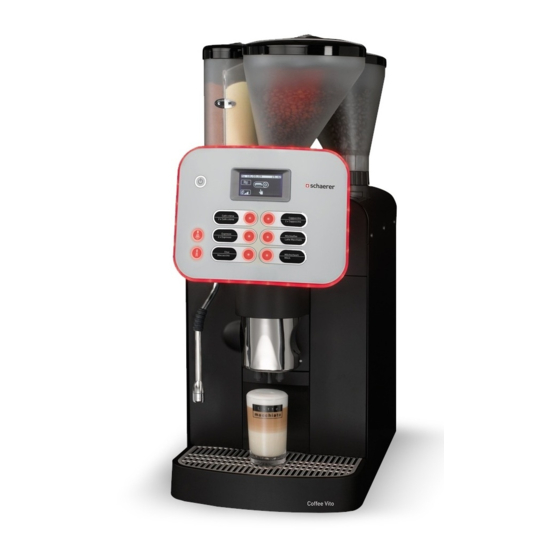

Schaerer Coffee Vito
CAUTION!
User at risk!
CAUTION!
Risk of machine
damage!
Outlet mixing cup (optional)
This cleaning is only necessary on ma-
chines with an optional "powder system".
► Switch off the machine with the
button.
► Disconnect the power plug.
► Pull off the hose and disassemble the
outlet mixing cup.
► Clean both parts of the outlet mixing
cup and the hose under running water.
Schaerer Ltd. P.O. Box
See also "Safety instructions" and "Cleaning" in the operating instructions.
It is dangerous to reach into the machine.
Before any manual cleaning, switch off the machine and disconnect it from the mains supply.
Carry out weekly cleaning at least once weekly!
The weekly cleaning is additional to the daily cleaning and is not a substitute for it.
► Remove the left-hand cover.
► Pull the hose (that leads from the mixer
to the beverage outlet) off the bever-
age outlet.
► Reassemble the outlet mixing cup
again. Turn all the openings in the
same direction.
► Insert the outlet mixing cup again in the
reverse order.
► Push the mixer hose complete with the
spiral guide back onto the beverage
outlet.
► Reinsert the left-hand cover.
► Turn the bayonet fastening handle an-
ticlockwise.
 The outlet mixing cup is released
from the locking device.
► Take out the outlet mixing cup com-
plete with hose.
 The mixer's impeller is now visible.
► Clean the impeller with a cloth.
