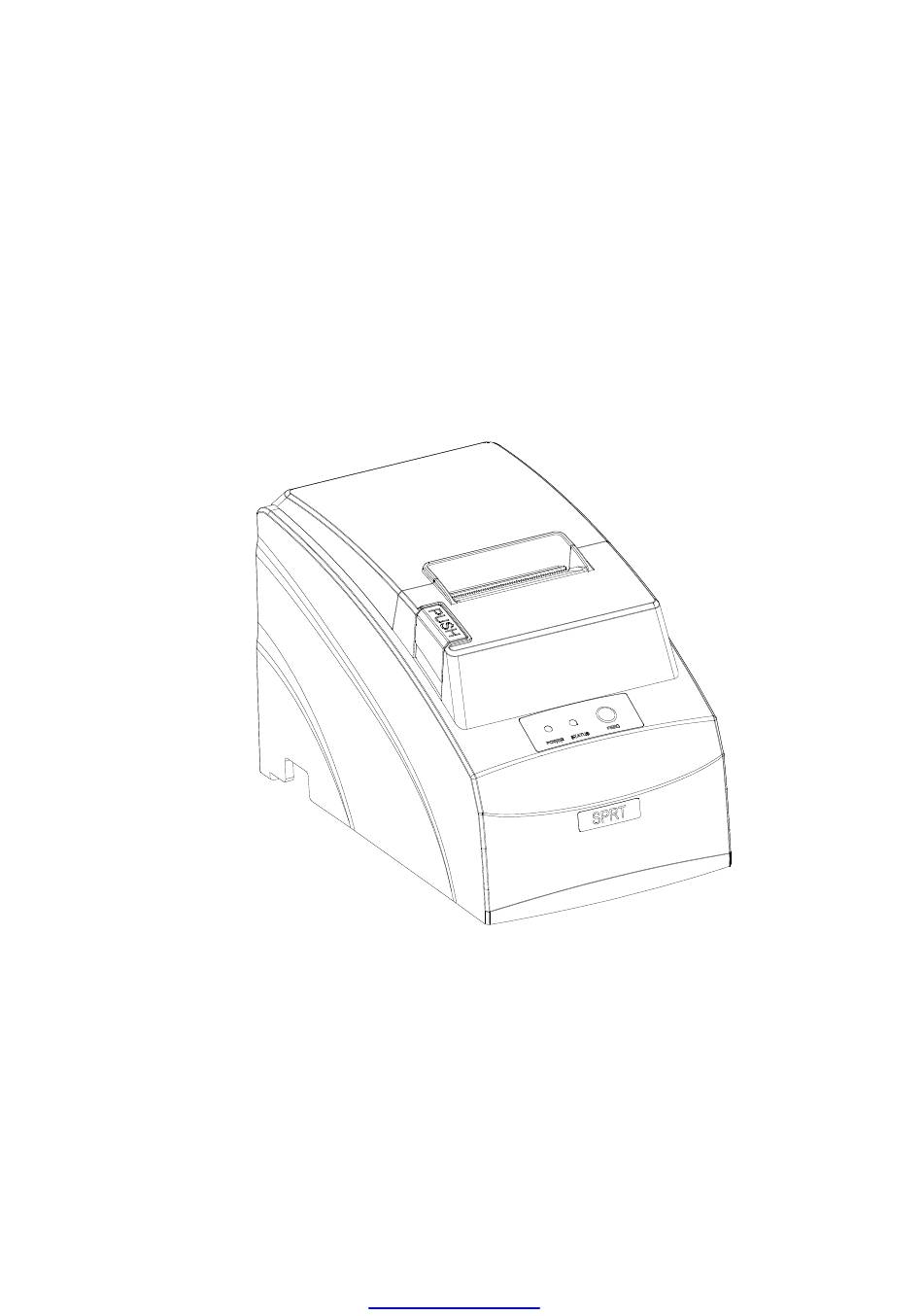

- Page 1 POS58VI Line Thermal Printer User’s Manual （VER1.00） PDF created with pdfFactory trial version www.pdffactory.com...
-
Page 2: Table Of Contents
SPRT Content Introduction ························································································ 2 Chapter 1 Characteristic and Specification ········································· 3 ························································· 3 1.1 Printing Specification 1.2 Printing Paper ····································································· 3 1.3 Printing Font······································································· 3 1.4 Interface·············································································· 3 1.5 Printing Control Command················································· 4 1.6 Power Supply ····································································· 4 1.7 Operation Environment ······················································ 4 1.8 Outline Dimension······························································... -
Page 3: Introduction
SPRT Introduction POS58 printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless avoiding the vexation of regular maintenance. POS58 printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Chapter 1 Characteristic And Specification
SPRT Chapter 1 Characteristic and Specification 1.1 Printing specification ● Printing method: direct thermal ● Printing paper width: 57.5±0.5mm ● Printing density: 8 dots/mm, 384 dots/line ● Printing speed: approx. 75mm/s (valid content of each line isn’t over 25%) ● Reliability:... -
Page 5: Printing Control Command
SPRT ● Parallel interface: DB25 socket (male), 8-bit parallel interface, supports BUSY/ACK handshaking protocol, TTL. ● USB interface： Standard B type USB interface. ● Cash drawer control DC12V，1A，6-pin RJ-11 socket. 1.5 Printing Control Command ● Character print command: supports double width and double height printing of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable. - Page 6 SPRT Fig2-1 Printer outer appearance Fig2-1 Printer outer appearance (back) ５ PDF created with pdfFactory trial version www.pdffactory.com...
-
Page 7: Paper Installation
2.3 Interface Connection 2.3.1 Parallel Interface Connection The Parallel interface of POS58VI printer is compatible with CENTRONICS, supports BUSY and /ACK handshaking protocol, it uses DB25 socket (male), the pin order of parallel port is as below shows:... -
Page 8: Serial Interface
SPRT HIGH level signal indicates BUSY that the printer is BUSY and can not receive data. HIGH level signal indicates that paper is end. Pulling up to HIGH level signal by a resistor indicates the printer is online. Pulling up to HIGH level... - Page 9 The baud rate and data structure in RS232 interface mode are set to 9600bps, 8 data bits, no parity bit and 1 stop bit. The serial interface of POS58VI can be connected with standard RS-232C interface. When connected to IBM PC or compatible machine, connection can accord to the below.
-
Page 10: Usb Interface
SPRT 2.3.3 USB Interface Standard B type USB interface 2.3.4 Cash Drawer Interface The cash drawer interface of POS58VI is RJ-11, 6pin socket, as below, The pin assignment of the cash drawer interface is as follows: Pin No. Signal Direction... -
Page 11: Self-Test
SPRT 2.4.3 Opening Upper Cover Button Hold down opening upper cover button to open the case cover. 2.4.4 Power indicator light If the power is on, the power indicator light will be on. 2.4.5 Status Indicator light and Buzzer During normal working, red STATUS light is off. If the working status is abnormal, the red indicator light will flicker to alarm error. -
Page 12: Upgrade Mode
SPRT as bellow: *** Completed *** Then quit the Hexadecimal Dump print mode. 2.7 Upgrade Mode Holding down 【FEED】 button and turn on the power, the red indicator light will flicker at 1 time/s, after 3 times then release the button. The printer enters into Mode Choosing Status. - Page 13 SPRT Width－－－ 57.5±0.5mm Outer Diameter －－－ 80mm（max.） Inner Diameter－－－ 13mm（min.） －－－ 53～60g／m 2 Thickness ·Print Font IBM Character set II (ANK): 12×24 dots，1.25（W）×3.00（H）mm; GB GB2312-80(Chinese): 24×24 dots，3.00（W）×3.00（H）mm. ·RS232 interface: DB25 socket (female), supports RTS/CTS protocol. Baud rate: 9600bps. Data structure: 1 start bit + 8 data bits + 1 stop bit. no parity.
