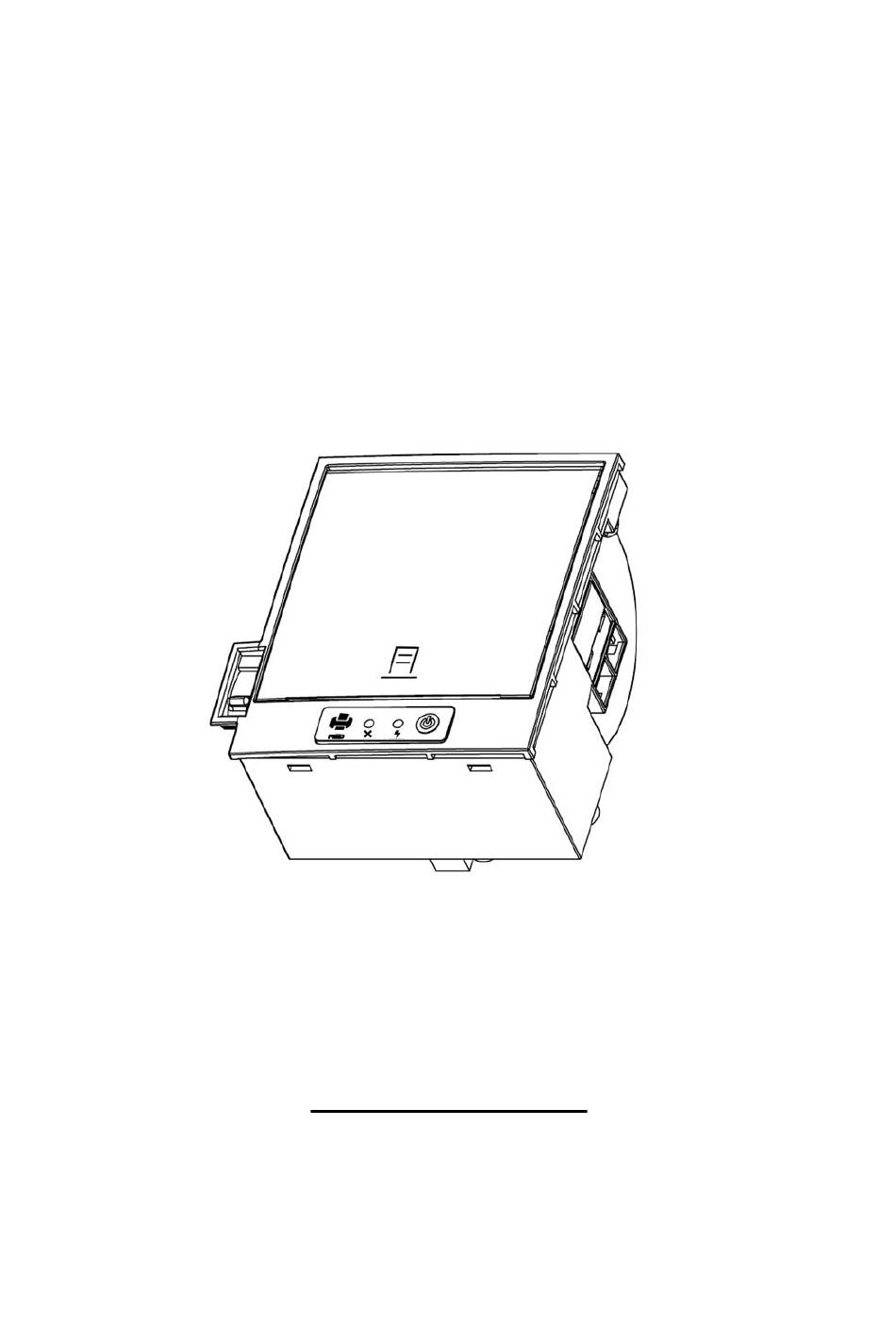

- Page 1 SPRT ® POS Thermal Printer Users’ Manual POS802 （Ver 1.02） Beijing Spirit Technology Development Co.,Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
CONTENTS Introduction........................1 Chapter 1 Feature and function................1 1.1 Print Performance....................1 1.2 Printing Paper.......................2 1.3 Printing Font......................2 1.4 Interface.........................2 1.5 Print Control Commands..................2 1.6 Power Supply....................... 3 1.7 Operation Environment..................3 1.8 Outer dimension and installation dimension............3 Chapter 2 Operation Specification................5 2.1 Printer Appearance....................5 2.2 Printer installation.................... -
Page 3: Introduction
Introduction POS802 printer is a new type line thermal printer, which features is fast speed printing, low printing noise, high reliability, perfect printing quality, avoiding the vexation of regular maintenance. POS802 is with small dimension, easy operating, and wide application field. -
Page 4: Printing Paper
1.2 Printing Paper ● Thermal paper roll model: TF50KS－E（Japan paper co.ltd） AF50KS-E (JUJO THERMAL) ● Thermal paper roll: Paper Type－－Thermal paper 79.5±0.5mm x ф80mm（max.） Inner Diameter－－－ф13mm（min.） Thickness －－－ 0.06mm～0.08mm 1.3 Printing Font ● ANK Character Set 12×24 dots，1.5（W）×3.00（H）mm ● GB18030(Chinese): 24×24 dots，3.00（W）×3.00（H）mm. -
Page 5: Power Supply
download bit-map graphics with different density ● GS bar code print commands: support UPC-A，UPC-E，EAN-13，EAN-8， CODE39， ITF25， CODABAR， CODE93， CODE128,PDF417,QR code, DATA Matrix bar code print. 1.6 Power Supply ● DC12V±10％，5A，5569-2*2Ppower socket. 1.7 Operation Environment ● Operation temperature: 0～50℃; Operation humidity: 10～80％ ●... - Page 6 Fig.1-1 POS802 outer appearance and dimension Installing hole dimension of customer’s panel, as picture1-2: Fig.1-2...
-
Page 7: Chapter 2 Operation Specification
Chapter 2 Operation Specification 2.1 Printer Appearance About the name of each part of printer, pls refer to picture 2-1: Fig.2-1 Printer part name fig. -
Page 8: Printer Installation
Embedded printer in the installing hole of customer’s panel, open the printer paper cover, tighten the two screws clockwise to complete the installation of the printer . Print installation shown in Figure 2-2. Fig.2-2 Printer installation fig. Paper Installation 2.3.1 Paper Loading POS802 adopts 79.5mm±0.5mm width thermal paper roll. -
Page 9: Interface Connection
2.4 Interface Connection 2.4.1 Serial Interface The serial interface of SP-POS802 printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses PH6PIN socket. The pin order of the serial port is as Fig.2-3 shows:... - Page 10 Fig.2-3 Pin Assignment of Serial Port The pin assignment of serial interface is shown in Fig. 2-1: Signal Signal Sourc Description Name Directi input host Printer receives data from computer host output printer Printer transmits control code X-ON/X-OFF and data to host -------- ------- Signal Ground...
- Page 11 Fig.2-4 Connection between printer and IBM PC Serial Interface 2.4.2 USB interface The USB interface of the POS802 printer is PH-4PIN interface, outer appearance and pin assignment is shown in Figure 2-5: Fig. 2-5 PH-4PIN USB socket and definitions...
-
Page 12: Indicators, Buzzer And Buttons Operation
2.4.3 Power Connection POS802 printer uses 12V±10%, 5A power supply, socket is 5569-2*2P type, appearance and pin assignment as Fig. 2-6 shows: Fig. 2-6 Power socket and pin assignment 2.5 Indicators, buzzer and buttons operation There are two buttons, one inner buzzer and two indicator lights on POS802. - Page 13 cutter remind, or both. Error status type meaning is same as Error indicator light. Green POWER indicator light is power indicator. POWER indicator light on means printer has been powered on. The red ERROR light is error status indicator. It is off when the printer works normally;...
-
Page 14: Turn On The Printer
LED flashes four times : CPU Execution error (wrong address ) LED flashes five times : UIB error flashes eight times: Temperature detection circuit error Recoverable error: the indicator continuously flashes and then keep being off for a period. Error type Error indicator description ERROR light flashes type Recoverable... -
Page 15: Hexadecimal Printing
interface type, default value of printer parameters, 96 ANK characters in ASCII code, content of default code page (if language is set English) or name of Chinese character library (if the language is set Chinese), bar code type, at last four lines black and white alternating icon. Self-test method: Keep pressing FEED button and power on the printer, then release POWER button after hearing buzzer reminding sound, then release FEED button, at this time the printer will print self-test receipt. -
Page 16: Entering Program Upgrading Mode
cover. Printer will enter into setting mode, and print the first parameter to be set and current setup. For details method, please refer to Appendix A. Method to exit parameter setup mode: open paper house cover, and keep pressing the【FEED】button, then close the paper house and release【FEED】 button, printer will save the settled parameter, exit setting mode, and enter into normal working mode. -
Page 17: Appendix A:parameters Setting
APPENDIX A:Parameters Setting This appendix is the method of setting default parameters of printer by buttons. Setting instruction: Using button for paper case cover to choose setting item. Press this button once, the setting item will go to the next and also print out the current value of this item. - Page 18 Font: FEED 12×24 9×17 FEED Printing density: FEED FEED Middle High FEED Buzzer: FEED FEED FEED Error ON ALL ON Cut ON FEED Print lack of paper: FEED FEED Black mark mode: FEED Close Open FEED...
