Summary of Contents for SPRT POS901

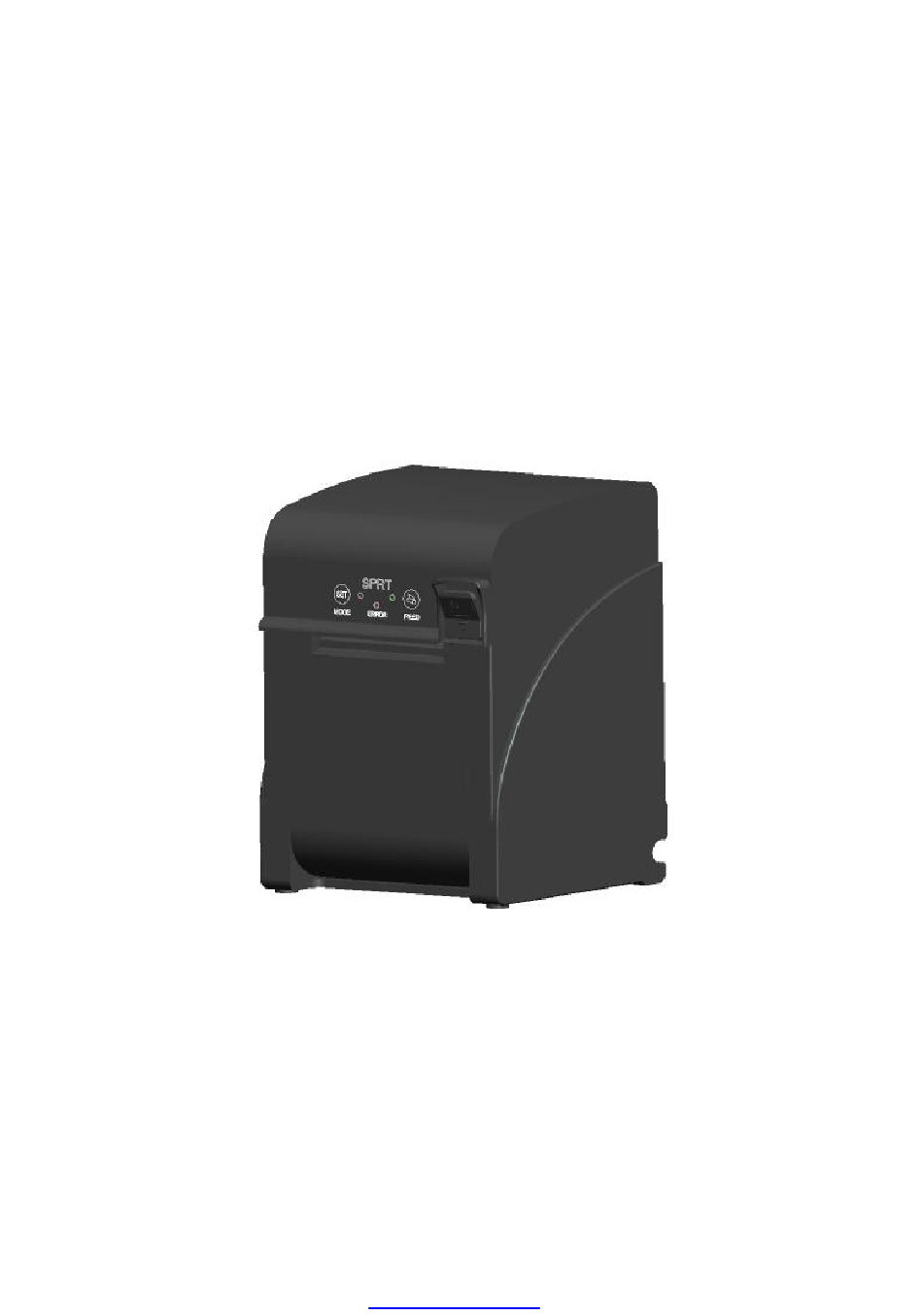

- Page 1 POS901 Professional Kitchen Printer User’s Manual （Ver 1.00） PDF created with pdfFactory trial version www.pdffactory.com...
-
Page 2: Table Of Contents
Content Introduction ....................14 Chapter 1 Feature and Performance............. 14 Print Performance................14 Print Paper..................15 Print Font ..................15 Interface.................... 15 Print Control Commands ..............15 Power Supply..................16 Operation Environment..............16 Chapter 2 Operation Specification..............17 2.1 Printer Appearance.................. 17 2.2 Paper Installation.................. -
Page 3: Introduction
Introduction POS901 printer is one new type – professional for kitchen, which has the dust, water and insect proof function. It features in fast printing-speed, low printing-noise, high reliability and ribbon needless, which avoid the vexation of regular maintenance. POS901 printer: small in outline dimension, simple operation and flexible installing method. -
Page 4: Print Paper
（2）Cutter life: 500,000 cuts Using condition: less than 30 cuts/minute ● Valid print width: 72mm ● Paper feeding speed: approx 170mm/s 1.2 Print Paper ● Thermal paper roll model: TF50KS－E（Japan paper co.ltd） AF50KS-E (JUJO THERMAL) ● Thermal paper roll: Width－－－ 79.5±0.5mm Outer Diameter －－－... -
Page 5: Power Supply
character line spacing is adjustable. ● Graphics print commands: support printing different density bit-map graphics and downloaded bit-map graphics. ● 1-dimension barcode print commands: support UPC-A，UPC-E，EAN-13， EAN-8， CODE39， ITF25， CODEBAR， CODE93， CODE128 barcode printing. ● 2-dimension barcode print commands: support PF417, QRCODE, DARAMATRIX two-dimension barcode printing. -
Page 6: Chapter 2 Operation Specification
Chapter 2 Operation Specification 2.1 Printer Appearance 2.2 Paper Installation 2.2.1 Paper Loading POS901 printer use 80mm width thermal paper roll. Thermal paper loading PDF created with pdfFactory trial version www.pdffactory.com... - Page 7 steps are as below: 1. Press the Open door button and open the paper case cover. As the below picture, Picture 2.2 2. Take out the used paper roll, put the paper axle into the new paper roll. As showed in the below picture (Picture 2.3). Pls pay attention to the direction of paper, as showed in the below picture (Picture 2.4) Picture 2.3 Picture 2.4...
-
Page 8: Solution To Paper Jam
Picture2.6 4. Tear off the extra paper, as showed in Picture2.7. Picture2.7 Caution! ！ 1. Pay attention to the direction of loading paper, make the printing surface face to the printing head. 2. Please don’t feed or draw the paper forwards or backwards with hands. -
Page 9: Interface
2.3 Interface 2.3.1 Serial Interface The serial interface of POS901 printer is compatible with RS-232C, supporting DTR/DSR and XON/XOFF handshaking protocols. The socket is DB-9 female socket, as showed in Picture 2.8, Picture2.8 Signal Signal Description Name Source Printer Printer transmits control code X-ON/X-OFF and... -
Page 10: Usb Interface
2.3.3 USB Interface The USB interface socket for POS901 is standard USB-B socket, which abides by printer type protocol or virtual serial interface type protocol. The kind of protocol which is used during the printer working – printer type or virtual serial interface type, can be set up by setting softwar. - Page 11 through the setting of print command. Error status type is same with ERROR indicator. Green POWER indicator is power indicator. When POWER indicator is light, it means the printer is on. Red PAPER OUT indicator is paper status indicator. Indicator light means the printer is out of paper.
-
Page 12: Self-Test
b. Recoverable error, indicator flickers constantly, then persistent off for one period. ERROR Indicator Flickering ERROR Type ERROR Description Type Recoverable LED Flikers once：Cutter error position error c. Auto-recoverable error, indicator flickers constantly, including printing head over-heat error and upper case cover opening error during printing. ERROR Indicator Flickering ERROR Type ERROR Description... -
Page 13: Hexadecimal Printing
2.6.1 Hexadecimal Printing Turn on the printer according to the steps below, it will enter into the model of Hexadecimal Printing. 1. Open the paper case cover 2. Hold down【FEED】button, turn on the power 3. Close the paper case cover Hexadecimal Dump To terminate hexadecimal dump, Press FEED button three times. -
Page 14: Recovering Default Ip Address
default IP address of printer (192.168.1.114); otherwise, pls use the normal working IP address (Printed IP address on self-test receipt). The method of entering upgrading mode: When the printer is off, open paper case cover firstly, hold down 【FEED】 button and turn on the printer power. After the status indicator and PAPER OUT indicator flicker alternately, loosen 【FEED】... - Page 15 with buckles to the wall-mounted board. As showed in Picture2.11, Picture2.11 PDF created with pdfFactory trial version www.pdffactory.com...
-
Page 16: Appendix A. Parameters Setting
Appendix A. Parameters Setting This appendix is the method to set printer default parameters through buttons: Setting instruction: Choose setting item through “Paper case cover” button. When press “Paper case cover” button once, the setting items goes to the next and the printer prints out the current value of this time. - Page 17 Buzzer: FEED FEED FEED Error ON ALL ON Cut ON FEED Black Mark: FEED FEED USB Type Choosing: FEED Virtual Serial Printer Type Interface Type FEED PDF created with pdfFactory trial version www.pdffactory.com...
