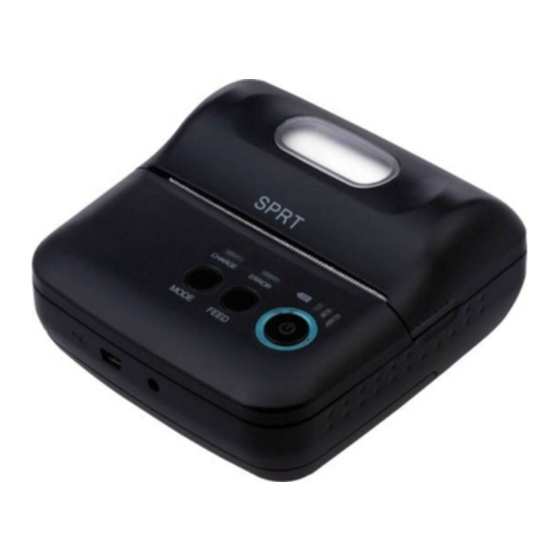

- Page 1 ® SPRT SP-RMT9 BT Portable Thermal Printer User’s Manual （Ver1.01） Beijing Spirit Technology Development Co., Ltd www.sprinter.com.cn...
-
Page 2: Table Of Contents
Content NOTICE ................................3 Notice of Safety ............................. 3 Notice of Using .............................. 3 Notice of Storing ............................3 Chapter 1 Outer Appearance and Model No....................4 1.1 Outer Appearance ............................ 4 1.2 Model No..............................4 Chapter 2 Characteristic Specification ......................5 2.1 Printing Specification .......................... -
Page 3: Notice
NOTICE Please read this manual carefully before using the printer! Notice of Safety Be sure to use the specified battery and power supply provided by our company. Otherwise it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. Don’t put battery into the fire, don’t disassemble or heat the battery, don’t be short circuit, it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. -
Page 4: Chapter 1 Outer Appearance And Model No

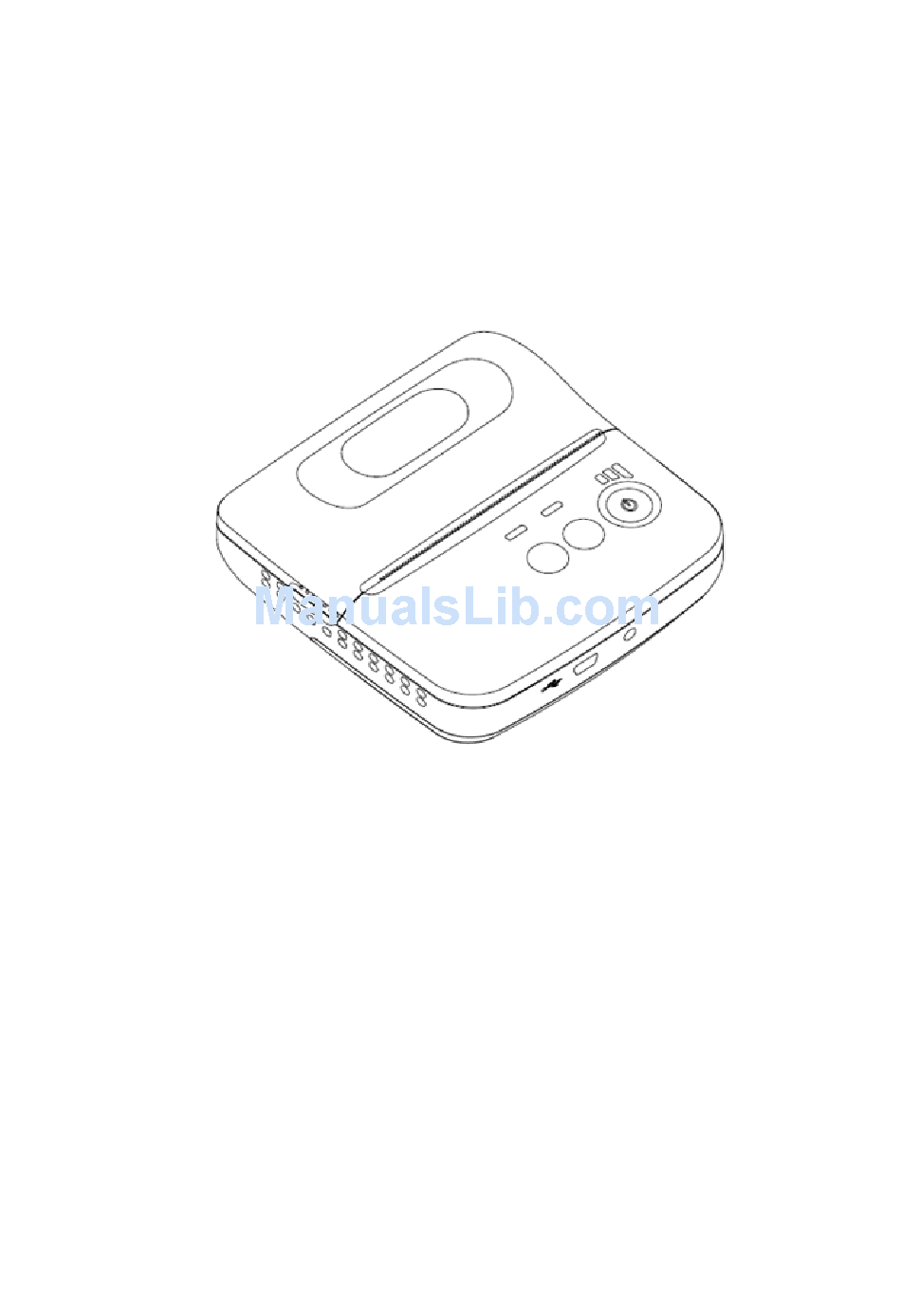

Chapter 1 Outer Appearance and Model No. 1.1 Outer Appearance [CHARGE]: Battery Charging Indicator [ERROR]: Error Indicator [FEED]: Feed Button [MODE]: Mode Button 1.2 Model No. SP—RMT9 Support USB Interface SP—RMT9BT Support USB and Bluetooth Interface... -
Page 5: Chapter 2 Characteristic Specification
Chapter 2 Characteristic Specification 2.1 Printing Specification Printing Method Thermal line Printing Speed 80mm/s Print Resolution 8 dots/mm, 576dots/line Effective Printing Width 72mm Character Set ASCII,GB2312-80(Chinese) Character Printing Font ANK: 12 x 24Chinese: 24 x 24 Character per Line Paper Type Thermal paper Paper Width 79.5±... -
Page 6: Other Specification
Dimension(W×L×H) 103×99×46mm Color Beige/Black 0℃~50℃ Environment Operating Temp -40℃~70℃ Storage Temp Operating Humidity 10%~80% Storage Humidity 10%~95% 2.2 Other Specification ● Paper Loading Method: drop-in easy loading ( please refer to details in 3.1.2 Paper Roll Installation). ● Black Mark Location: available(details please see 4.2 pre-printing black mark manual). ●... -
Page 7: Chapter 3 Operation Method
Chapter 3 Operation Method 3.1 Using Preparation 3.1.1 Battery Installation 1. Put the battery into the battery slot. 2. Install the battery cover. 3.1.2 Paper Roll Installation 1. Hold both sides of the paper case cover, and open it. 2. Pay attention to use paper that effective printing side is outside in the printing paper face when you install the new paper roll. -
Page 8: Basic Function Usage
3.2 Basic function usage 3.2.1 Switch On Press【POWER】button, the power indicator is on, about 1 second later you will hear ‘one low one high ’prompt tone. The printer will turn into work mode when loosen the 【 POWER】 button. The battery indicator shows power of the battery. 3.2.2 Switch Off Under status of switch on ,the printer will send out the prompt tone of ‘one low one high ’... -
Page 9: Paper Feeding (Manual Feeding)
3.2.3 Paper Feeding (Manual Feeding) Under the normal work status, press 【FEED】 button, the paper feeding begins, and stop when loosen 【FEED】 button. When the printer works in black mark mode, press【FEED】button, the printer begins to feed paper and stops over the position of black mark. If the paper is not the black mark paper, the printer stops automatically after feeds paper for 30cm. -
Page 10: Battery Charging
The setting parameters won’t be saved if you directly press the 【POWER】 button to turn off the printer. 3.2.7 Battery Charging The battery will run out after a period of usage. When it nearly runs out, printer will give a alarm through the battery indicator flashing, at this time, user needs to charge up the battery. -
Page 11: Function Of Bluetooth Address Binding
Usual matching course is as below: 1. Switch on printer; 2. Host device searches for the outer Bluetooth device; 3. If there are other Bluetooth devices, please select SP-RMT9 BT Printer; 4. Enter the password ‘1234’; 5. Pairing finished. - Page 12 【ERROR】indicator Constant on lighting: printer out of paper Light flashing: printer has mistakes. Different types of mistake, different ways of flashing 1. The mistake can be automatically recovered when the indicator continuous flashing. Including the temperature mistake of printer head and opening of paper case cover. Error Description The flashing way of【ERROR】...
- Page 13 【BATTERY】indicator The battery indicator composed by three parts in order to show the battery status. Three parts light on: battery is high Two parts light on: battery is medium One part light on: battery is low Minimum part flashing: battery is extremely low, it must be charged Three parts flashing at same time: power supply should be over voltage (external power supply without battery) There is also a buzzer to indicate various status of the printer.
-
Page 14: Chapter 4 Other Information
Chapter 4 Other Information 4.1 Command Programming Manual <T9 Technical Manual> is a technical manual for engineer to develop printer utility, and users can claim our company for it. This manual including the technical description of hardware interface ( Bluetooth, USB interface ), technical documentation of printing control command set, and others such as how to print black mark and locate by it. -
Page 15: Appendix A
Reflectivity of infrared ray : <10% (infrared ray reflectivity of other parts of the black mark paper is>65%) HPS: it is the distance between edges of black mark and loading position. 4.5mm≤Hps≤6.5mm APPENDIX A This appendix is the method of setting default parameters of printer by buttons. Setting instruction: Using 【MODE】... -
Page 16: Fcc Statement
Blackmark mode： FEED FEED Blackmark position： FEED Right Left FEED Power-off mode： FEED FEED FEED 20min 10min 30min Never FEED Printing direction： Reverse FEED Normal direction FEED FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 17 Beijing Spirit Technology Development Co., Ltd Address: No.26,Ave 4,Chuangye Middle Road, Shangdi Information Industry Park , Beijing, China Post Code:100085 Tel:+861051661178 Fax:+861051661178-190 E-mail: info@sprt-printer.com...
