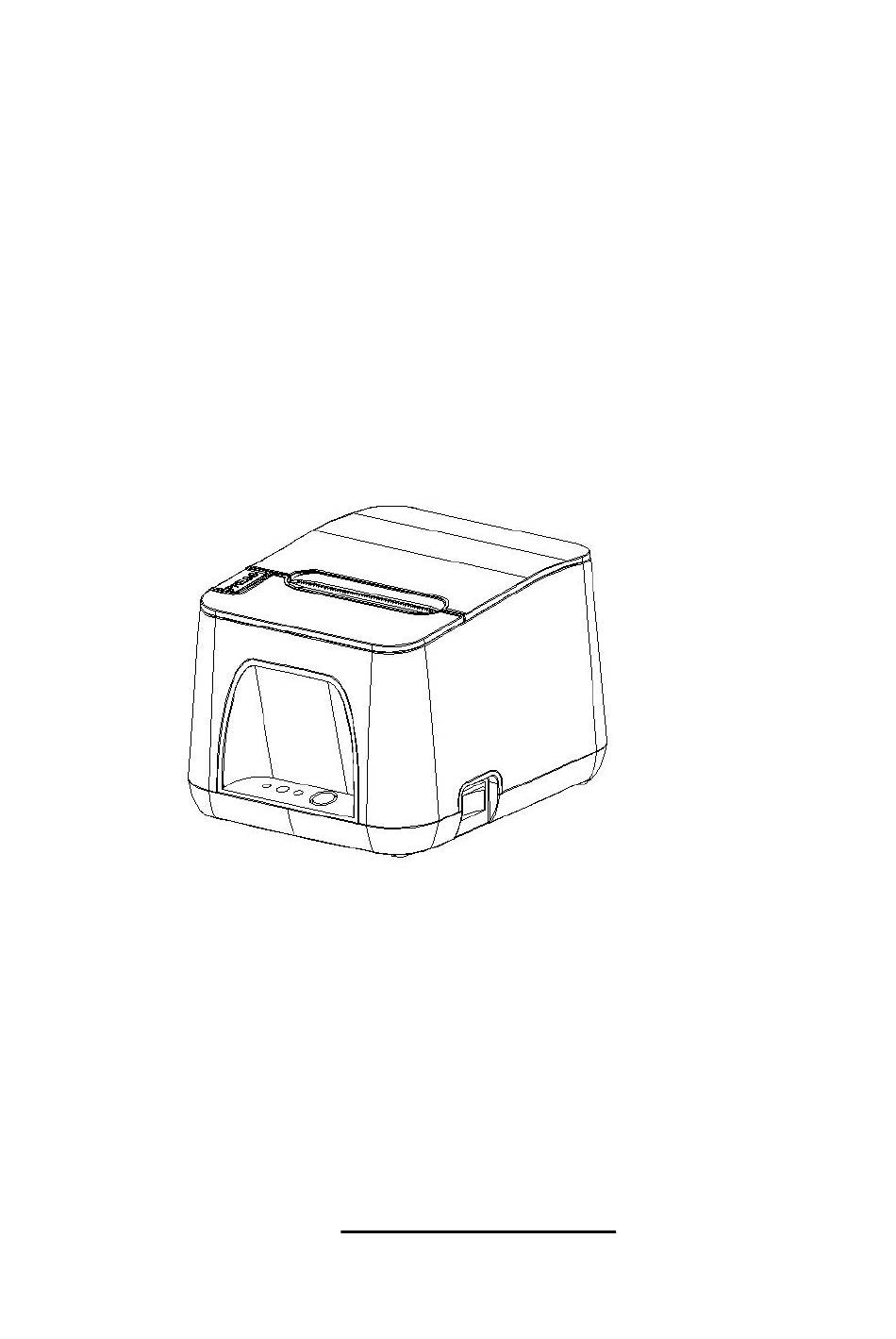

- Page 1 SPRT ® POS Thermal Receipt Printer （POS890） User’s Manual （Ver 1.03） Beijing Spirit Technology Development Co.,Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Introduction................................1 Chapter 1 Feature and Performance.........................1 1.1 Print Performance............................1 1.2 Print Paper..............................2 1.3 Print Font................................. 2 1.4 Interface................................2 1.5 Print Control Commands..........................3 1.6 Power Supply..............................3 1.7 Operation Environment..........................3 1.8 Outline Dimension............................3 1.9 Model classification............................3 Chapter 2 Operation Specification........................4 2.1 Printer Appearance............................ -
Page 3: Introduction
Introduction POS890 printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. POS890 printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Print Paper
(2) Cutter life: 1000,000 cuts Using condition: less than 30 cuts/minute ● Valid print width: 72mm 1.2 Print Paper ● Thermal paper roll model: TF50KS－E (Japan paper co.ltd) AF50KS-E (JUJO THERMAL) ● Thermal paper roll: Paper Type－－Thermal Paper 79.5±0.5mm xф80mm（max） Inner Diameter－－－13mm (min.) Thickness －－－... -
Page 5: Print Control Commands
characters, user-defined characters and Chinese characters, the character line spacing is adjustable. ● Graphics print commands: support the print of bit-map graphics and download bit-map graphics with different density ●GS barcode print commands: support UPC-A， UPC-E， EAN-13， EAN-8， CODE39， ITF25， CODEBAR， CODE93， CODE128,PDF417,QR code，DATA Matrix code print. -
Page 6: Chapter 2 Operation Specification
Chapter 2 Operation Specification 2.1 Printer Appearance... -
Page 7: Paper Installation
2.2 Paper Installation 2.2.1 Paper Loading POS890 adopts 79.5mm±0.5mm width thermal paper roll. Steps of Loading Thermal Paper are as below: Hold down the upper cover button on the left side, open the movable upper cover, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 8: Solution To Paper Jam
3. Keep clean of the print head, avoid to influence the printing quality. 2.2.2 Solution to Paper Jam If cutter jam, turn off the power, and turn on again, the cutter will be back to original position. If paper jam, open the paper strage cover, and take out the paper. If the cutter can not be back to the original position, open the cover of it, and turn the white plastic gear by the direction suggestive on the cutter by hand to make the cutter be back to the original position. -
Page 9: Usb Interface
Data- Data+ Data- Ground Fig.2-3 USB interface 2.3.3 Cash Drawer Interface The cash drawer interface of POS890 adopts RJ-11 6-pin socket, as Fig.2-5 shows: Fig.2-4 Cash Drawer Interface The pin assignment is as below: Pin No. Signal Direction Chassis Ground ——... -
Page 10: Power Connection
—— Cash drawer driver signal 2 Signal ground —— 2.3.4 Power Connection POS890 uses the external power supply adopter as 24V±10％,2A, power socket is A-1009-3P model, as Fig. 2-5 shows: The pin assignment is as below: Pin No. Signal +24VDC Ground Fig.2-5 Definition of power socket and pin... -
Page 11: Buttons And Indicators
2.4 Buttons and Indicators There is one button and two inner buzzers(a bigger on and a smaller one) and three indicators on POS890 printer. 【FEED】is paper feeding button, the function of its enabling or disabling the button on/off can be set by print command, when the button is enabled, press 【FEED】... - Page 12 the error type, then persistent lighting. 2. Recoverable error, the times of indicator flickering and buzzer sounding mean the error type, then persistent indicator-off. 3. Auto-recoverable error, the indicator flickers and the buzzer sounds persistently. 4. Paper out, PAPER OUT indicator lights and the buzzer sounds persistently. When the paper case cover is open, whether the paper is out or not will not be tested, but just testing whether there is paper in printer.
-
Page 13: Power On Status
. Auto-recoverable error, indicator flickers constantly, including printing head ③ over-heat error and upper case cover opening error during printing. ERROR Indicator Flickering ERROR Type ERROR Description Type LED Flickers constantly: printing head Auto-recoverabl over-heat; upper case cover opening e error error during printing 2.5 Power on status Paper cover close when power off. -
Page 14: Hexadecimal Printing
Fig.2-6 2.7 Hexadecimal Printing Turn on the printer according to the step below, it will enter the mode of Hexadecimal Printing 1.Open the cover; 2.Hold down【FEED】button,and connect with power;... -
Page 15: Parameter Setting
3.Close the cover, the printer will print out 3 lines as below: Hexadecimal Dump To terminate hexadecimal dump, Press FEED button three times. This means the printer has entered hexadecimal printing mode, and under this mode, all of the input will be printed out as hexadecimal number, feed one line with single-click of “FEED”... -
Page 16: Enter The Program Upgrade Mode
indicator flash alternately. Then press the 【FEED】 for five times and close the paper cover, printer enter the program upgrade mode. At this time, the status indicator flash once a second. Quick enter method: Open the paper case cover firstly when printer is power off. Hold the 【FEED】button and switch on the printer, then release the 【FEED】button quickly, then printer enter the program upgrade mode. - Page 17 Language: FEED FEED China English China-BIG5 FEED Font: FEED 12×24 9×17 FEED Print density: FEED FEED HIGH MEDIU FEED Print speed: FEED FEED FEED 250mm/s 200mm/s 220mm/s 150mm/s FEED Buzzer: FEED FEED FEED Error ON ALL ON Cut ON FEED Paper-out reprint: ：...
