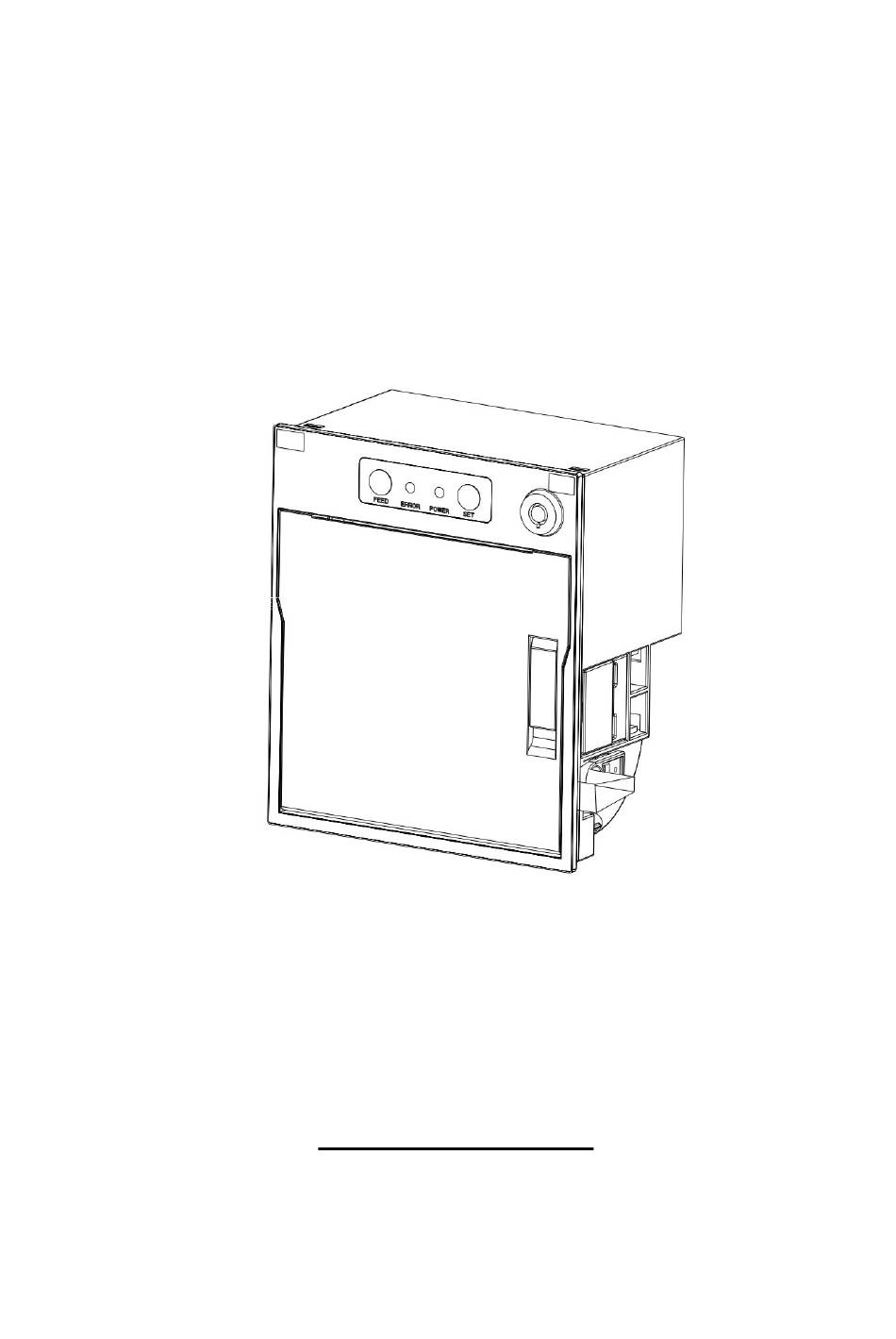

- Page 1 SPRT ® Thermal Receipt Printer User’s Manual SP-RME5 （Ver 1.02） Beijing Spirit Technology Development Co.,Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
Content Introduction..........................1 Chapter 1 Feature and Performance.................1 1.1 Print Performance......................1 1.2 Print Paper........................1 1.3 Print Font.........................1 1.4 Interface...........................2 1.5 Print Control Commands....................2 1.6 Power Supply......................... 2 1.7 Operation Environment....................2 1.8 Outline Dimension......................2 Chapter 2 Operation Specification..................4 2.1 Printer Appearance......................4 2.2 Installation of the printer.................... -
Page 3: Introduction

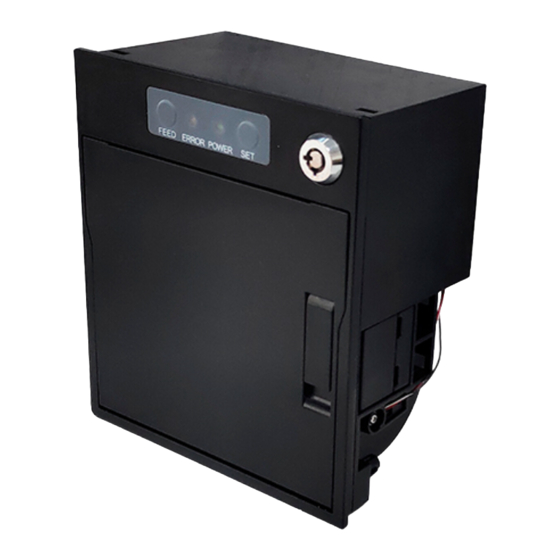

Introduction SP-RME5 printer is a new type line thermal printer, which features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. Chapter 1 Feature and Performance 1.1 Print Performance ●... -
Page 4: Interface
1.4 Interface ● RS－232C Serial Interface: IDC10 socket, supports XON/XOFF and DTR/DSR protocols. Baud rate:1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps adjustable. Data structure: 1start bit + (7 or 8) data bits + 1 stop bit. Parity checking: no parity or odd, even parity optional. ●... -
Page 5: Chapter 2 Operation Specification
Outline dimension: 115mm×132mm×82.5mm(W×H×D) Please check outline dimension in the below picture 1-1: Installation size Fig.1-1 SP-RME5 outline dimensional drawing Chapter 2 Operation Specification 2.1 Printer Appearance About the name of each part of printer, please refer to picture 2-1:... -
Page 6: Installation Of The Printer
Fig.2-1 Printer Appearance 2.2 Installation of the printer Embedded printer in the installing hole of customer’s panel. open the printer paper cover, clockwise to tighten the two screws to complete the installation of the printer . Print installation shown in Figure 2-2. Fig. -
Page 7: Paper Installation
2.4 Interface 2.4.1 Serial Interface The serial interface of SP-RME5 printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses IDC10 socket. The pin order of the serial port is as Fig.2-3 shows: Fig.2-3 Pin Order of Serial Port The pin assignment of serial interface is shown in Fig. - Page 8 The baud rate and data structure in serial interface mode is 9600bps, 8-bit data bits, no parity bit and 1 stop bit. The serial interface of SP-RME5 can be connected to standard RS-232C interface. When it is connected to IBM PC or its compatible machine, connection can accord to Fig.2-5.
-
Page 9: Usb Interface
Data + Ground Figure 2-6: USB socket and pin definitions 2.4.3 Power Connection SP-RME5 printer uses the external power supply adopter as 24V±10％ 、 2A, power socket is 2114S-02 model, as Fig. 2-7 shows: Fig.2-7: Power Socket 2.4.4 Parallel interface connection The parallel interface of SP-RME5is compatible with CENIRONICS standard，... -
Page 10: Bluetooth Connection
2.4.5 Bluetooth Connection Hand-held device, laptop and other information terminal devices with Bluetooth can drive SP-RME5 to print by the Bluetooth interface. SP-E5 portable printer is compatible with Bluetooth2.0 standard. Power class is CLASS 2, effective communication distance is 10 meters. The Bluetooth of the printer belongs to the... -
Page 11: Cash Drawer Interface
The initial name of the printer is E5 BT Printer, the initial password is ‘1234’; users can change the printer name and password by using<SP-E5 Setting Tools> software. Please see the details in help file of <SP-RME5 Setting Tools>. Before working, SP-RME5 Printer needs to be paired with primary device. -
Page 12: Buttons And Indicators
Cash drawer on/off status signal +24VDC —— —— Cash drawer on/off status signal —— ground 2.5 Buttons and Indicators There are two buttons, one inner buzzer and two indicators for RME5. 【SET】 is setting button,【SET】 is used with【FEED】 button to set parameters. 【... -
Page 13: Turn On The Printer
LED flashes twice: Over-voltage LED flashes three times: the voltage is lack LED flashes four times : CPU Execution error (wrong address ) LED flashes five times : UIB error flashes eight times temperature detection of circuit is wrong b. Automatically recoverable error: the indicator flashes continuously. Error type Description Type of flash... -
Page 14: Hexadecimal Printing
The content is as below picture 2-7: Fig. 2-7 2.8 Hexadecimal Printing Turn on the printer according to the step below, it will enter the mode of Hexadecimal Printing In the off state, when the [paper cover] is open, press and hold the [FEED] button, power on, close the paper cover The printer will print out 3 lines as below: Hexadecimal Dump... -
Page 15: Entering Program Upgrading Mode
button at the same time to save the setup of parameter and exit, the printer will enter into normal mode. If power off directly, parameters will not be saves. 2.10 Entering program upgrading mode When printer powers off, press 【FEED】 and 【SET】 buttons, power on and release the buttons. -
Page 16: Appendix A: Parameters Setting
APPENDIX A: Parameters Setting This appendix is the method of setting default parameters of printer by buttons. Setting instruction: Using 【SET】 button to choose setting item. Pressing this button once, the setting item will go to the next and also print out the current value of this item. - Page 17 Buzzer: FEED FEED FEED Error ON ALL ON Cut ON FEED Print lack of paper: FEED FEED Black mark： FEED FEED...
