3.2 PART IDENTIFICATION AND MODELS

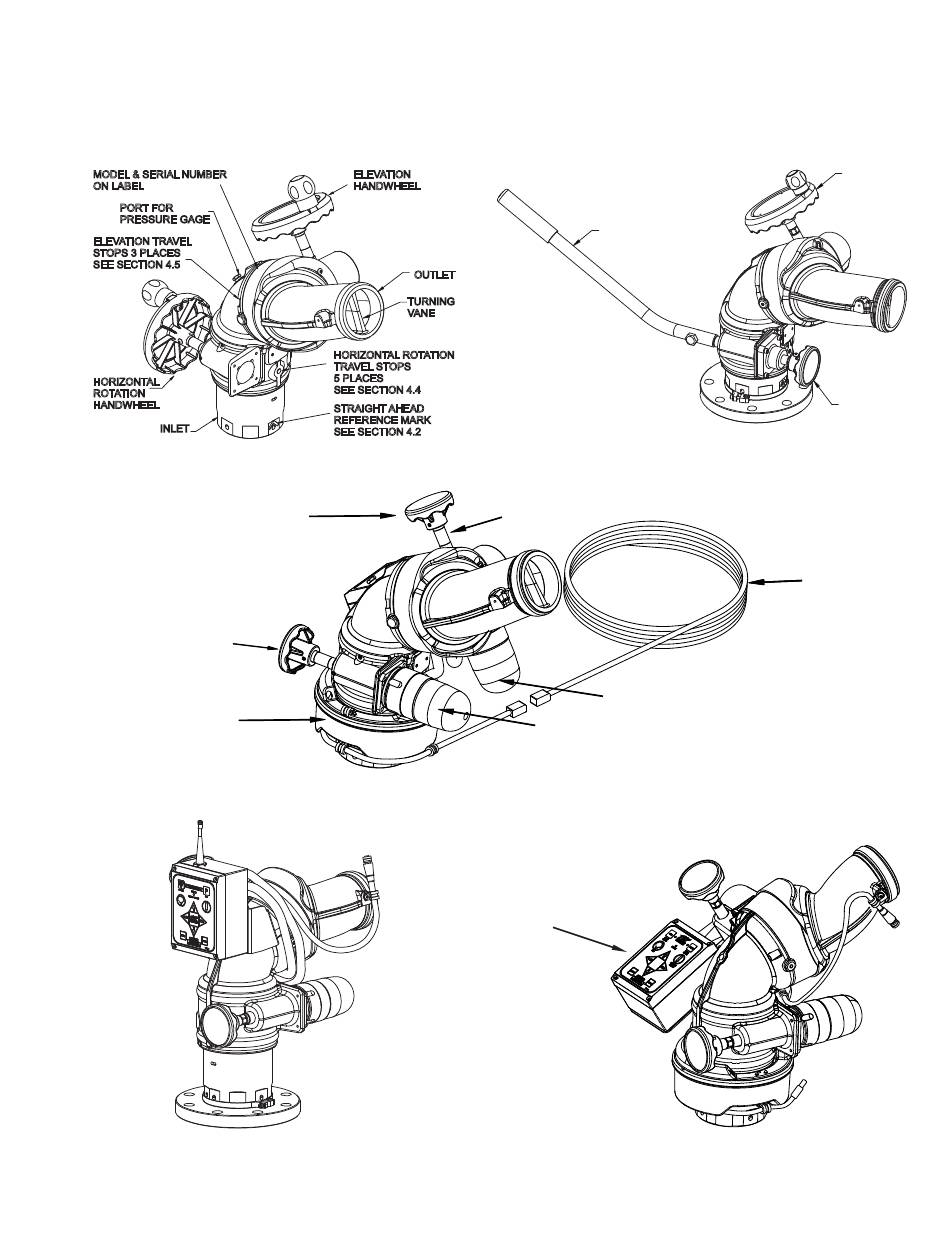

The Monsoon Monitor comes in manual and electric remote controlled models. Manual models are available with either handwheel
control on both axis or a tiller bar model that uses a tiller bar to control horizontal rotation. Electric remote control models are available
in a standard model (suitable for on top of pumpers), a Ladder model and a Platform model. Compared to the standard model, the
ladder or platform model uses smaller override knobs, has a smaller swing radius and has horizontal travel stops factory installed at
90° left and right (180° total). The various models of Monsoon monitors are shown in fi gures 3.2A, 3.2B, 3.2C and 3.2D. The monitor
mounted control station on the standard remote controlled model is shown in fi gure 3.2E.
MODEL & SERIAL NUMBER
ON LABEL
PORT FOR
PRESSURE GAGE
ELEVATION TRAVEL
STOPS 3 PLACES
SEE SECTION 4.5
HORIZONTAL
ROTATION
HANDWHEEL
INLET
Manual Handwheel Monsoon Monitor
MANUAL OVERRIDE KNOB
FOR ELEVATION
ELECTRIC NOZZLE CONNECTION
SEE SECTION 4.3
MANUAL OVERRIDE KNOB
FOR HORIZONTAL ROTATION
WIRE SKIRT
Electric Monsoon RC for Ladders or Platforms
©Copyright Task Force Tips, Inc. 2004-2011
ELEVATION
HANDWHEEL
OUTLET
TURNING
VANE
HORIZONTAL ROTATION
TRAVEL STOPS
5 PLACES
SEE SECTION 4.4
STRAIGHT AHEAD
REFERENCE MARK
SEE SECTION 4.2
Figure 3.2A
Electric Monsoon RC Monitor
Figure 3.2D
TILLER HANDLE
Manual Tiller Bar Monsoon Monitor
MANUAL OVERRIDE WRENCHING HEX
SEE SECTION 5.5
ELEVATION GEAR MOTOR
HORIZONTAL ROTATION GEAR MOTOR
Figure 3.2C
MONITOR MOUNTED
CONTROL STATION
Electric Monsoon RC Standard Model
7
ELEVATION
HANDWHEEL
LOCKING KNOB
Figure 3.2B
POWER AND POWER AND
COMMUNICATION CORD COMMUNICATION CORD
30 FEET 30 FEET
(9 METERS) (9 METERS)
Figure 3.2E
