INSTALLATION and OPERATING INSTRUCTIONS
DANGER
To make the Extend-A-Gun as versatile as
possible three mounting bracket kits are
offered.
Each kit has a different upper
bracket, the lower bracket is the same in all
three.
XGB-13 TUBE/SADDLE
BRACKET SET
XGB-23 PLATE/SADDLE
BRACKET SET
XGB-33 SADDLE/SADDLE
BRACKET SET
TASK FORCE TIPS, Inc.
Made in USA • www.tft.com
© Copyright Task Force Tips, Inc. 2002-2008
Read instruction manual before use. Operation of this device without
understanding the manual and receiving proper training is a misuse of this
equipment. A person who has not read and understood all operating and
safety instructions, is not qualified to operate the Extend-A-Gun telescoping
unit.

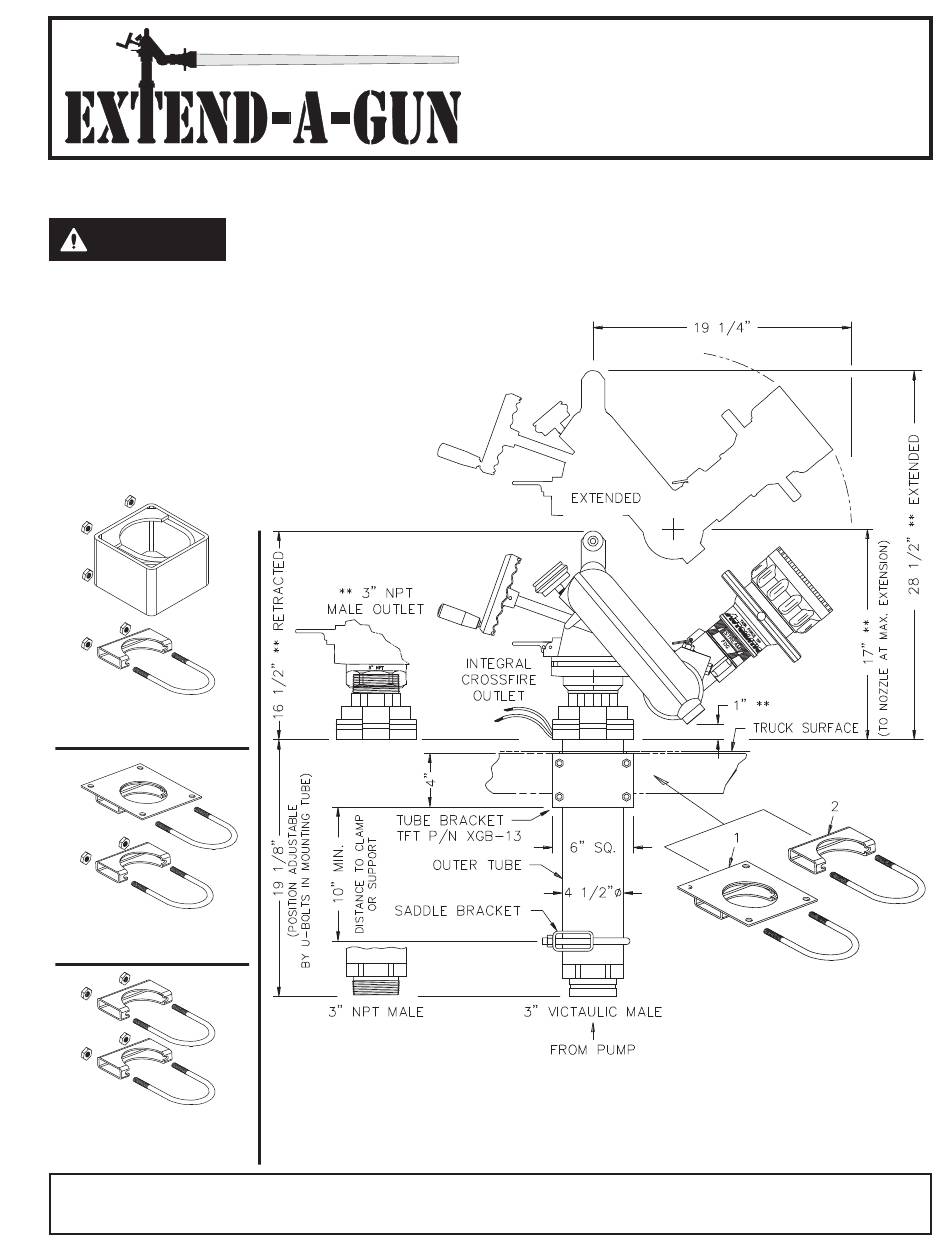

** - OUTLETS SHOWN ARE
FOR MODELS XG12PL - XL & XG12-VL-XL
FOR MODELS WITH 3" MAKE NPT OUTLET, ADD 1"
MODEL XG12
Telescoping Waterway for
Deck Mounted Monitors
SHOWN WITH TFT MASTER NOZZLE
SHOWN WITH TFT MASTER NOZZLE
2351 Industrial Drive • Valparaiso , IN 46383-9511 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
AND CROSSFIRE DECK GUN
AND CROSSFIRE DECK GUN
ALTERNATE
1) MOUNTING PLATE, 9" SQ.
1) MOUNTING PLATE, 9" SQ.
TFT PART XGB-23
TFT PART XGB-23
2) SADDLE BRACKET
2) SADDLE BRACKET
TFT PART XGB-33
TFT PART XGB-33
LIX-512 December 24, 2008 Rev05
