4.2.3 ELEVATION TRAVEL STOPS
The range of elevation travel for the Monsoon Monitor is 90 degrees above zero to 45 degrees below zero. The elevation range may
be limited by installing the supplied stop bolts at the locations shown is fi gures 4.2.3A and 4.2.3B. Consult factory for other ranges.
The fi gures include installation notes.
Pry out plastic plug and install Stop Bolt
to obtain desired travel limits.
Elevation travel with no Stop Bolts is
90° above and 45° below zero.
©Copyright Task Force Tips, Inc. 2004-2011

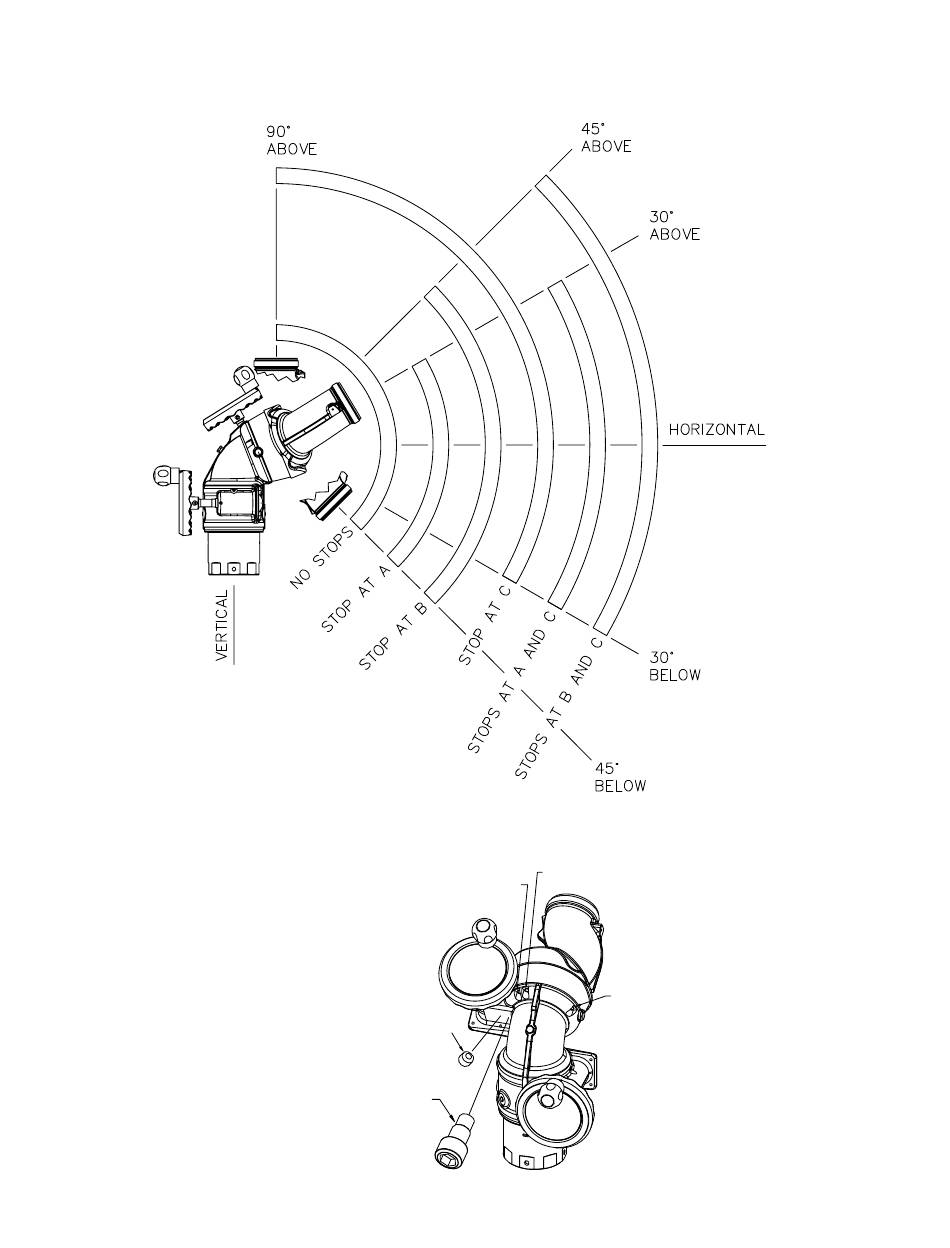

Fig 4.2.3A
Elevation Travel Limits
B
A
45° ABOVE
30° ABOVE
HORIZONTAL
HORIZONTAL
SET SCREW
#VT37-24SS375
STOP BOLT
#Y4145
Fig 4.2.3B
Elevation Travel Stop Locations
16
C
30° BELOW
HORIZONT
LIY-200 May 24, 2011 Rev10
