Task Force Tips MONSOON Instructions For Installation, Safe Operation And Maintenance page 13

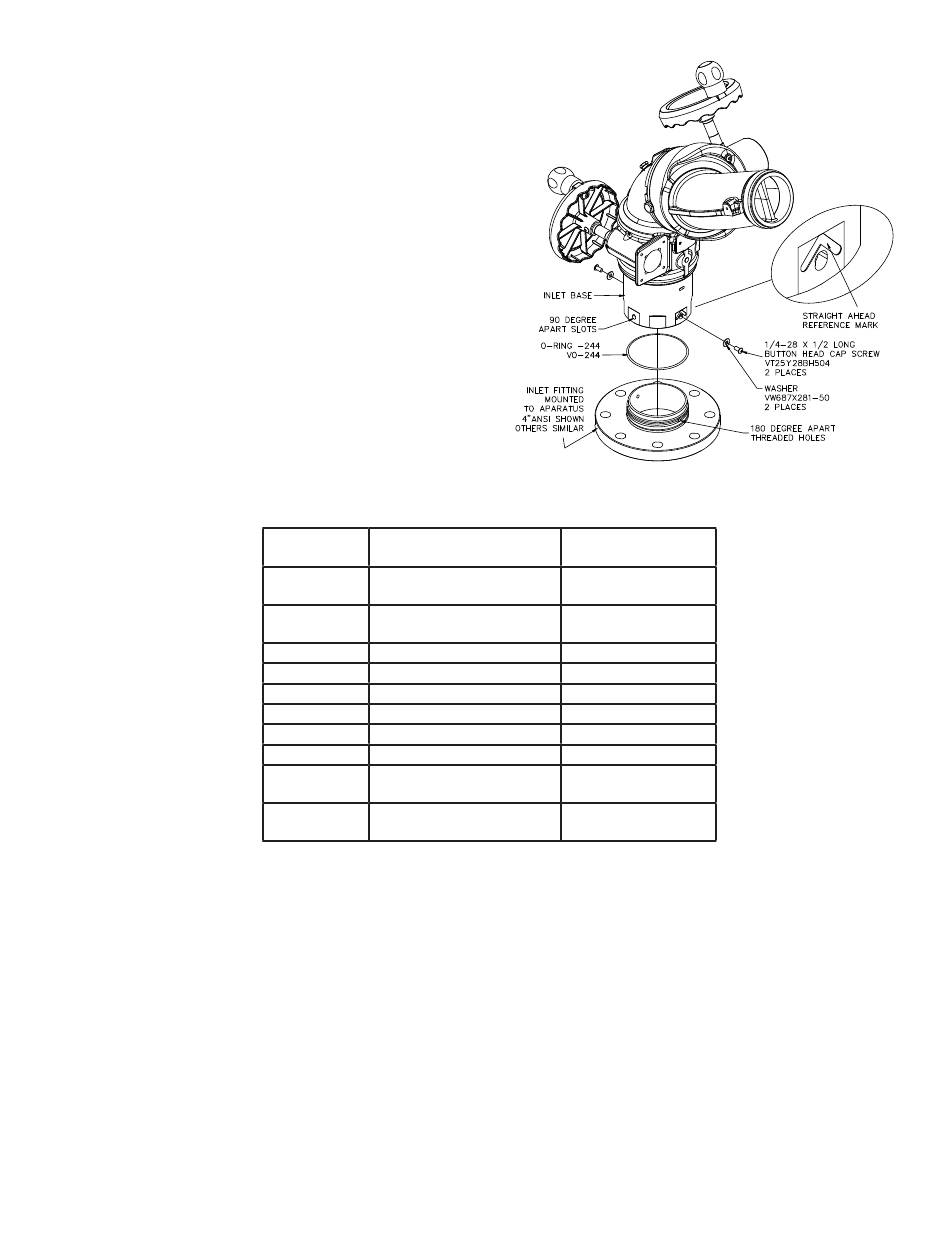

¼-28 BUTTON HEAD CAP SCREW ROTATIONAL LOCK INSTALLATION INSTRUCTIONS (tapped holes):
1) Install Inlet Adapter or Extend-A-Gun RC to apparatus. Mount
so that 180 degree apart threaded cross-holes will give
desired direction relative to the "Straight Ahead Reference
Mark" when the monitor is installed.
2) Screw monitor onto Inlet Adapter or Extend-A-Gun RC until
threaded joint bottoms out.
A) Do not use pipe dope or Loctite on the Inlet Base threads.
These threads are sealed with an O-ring. The use of thread
locking compounds will make removal diffi cult.
3) Unscrew monitor until a pair of 90 degree apart slots line up
with the 180 degree apart threaded cross-holes in the Inlet
Adapter or Extend-A-Gun RC.
A) Orient monitor so that the "Straight Ahead Reference
Mark" is facing the desired direction.
B) Slots will line up with threaded cross-holes every 90
degrees of rotation.
C) Monitor may be unscrewed up to one full turn from the
bottomed out position.
4) Install ¼-28 by ½ long Button Head Cap Screws and Washers
in the two threaded cross- holes. Use Loctite #271 on the
threads of the Button Head Cap Screws. Allow Loctite to fully
cure before applying water pressure.
©Copyright Task Force Tips, Inc. 2004-2011
MODEL INLET FITTING
TYPE
Y4-*1*A 3" ANSI 125/150
(metric DN8 PN20)
Y4-*2*A "4"" ANSI 150
(metric DN100 PN20)
Y4-*4*A metric DN80, PN16
Y4-*5*A metric DN100, PN16
Y4-*6*A 3" NPT Female
Y4-*7*A 4" NPT Female
Y4-*8*A 3" BSP Male
Y4-*9*A 4" BSP Male
"Y4-DQ*A 4.5" Quick Connect
Y4-EQ*A"
Y4-TQ*A 4.5" Quick Connect
* These digits in the model number refer to control type and to exit
thread type.
** Use height from inlet adapter drawings (YQC series) to deter-
mine overall height of monitor with Quick Connect.
Additional Height for Inlet Fittings
Inlet Fittings Connection
ADDITIONAL
HEIGHT
.75" (20mm)
.94" (23mm)
2.80" (22mm)
2.80" (22mm)
2.00" (51mm)
1.75" (45mm)
2.30" (58mm)
2.30" (58mm)
0.63" (16mm)
+ inlet adapter **
3.38" (86mm)
+ inlet adapter **
Fig 4.2.1A
13
Fig 4.2.1B
LIY-200 May 24, 2011 Rev10
