Task Force Tips MONSOON Instructions For Installation, Safe Operation And Maintenance page 14

NOTE:
NOTE:
CORRECT
WIRE NOT
WIRE WRAP
WRAPPED
MANUAL OVERRIDE
KNOB ON
EXTEND-A-GUN
WIRE WRAPPED WIRE WRAPPED
CORRECT INCORRECT

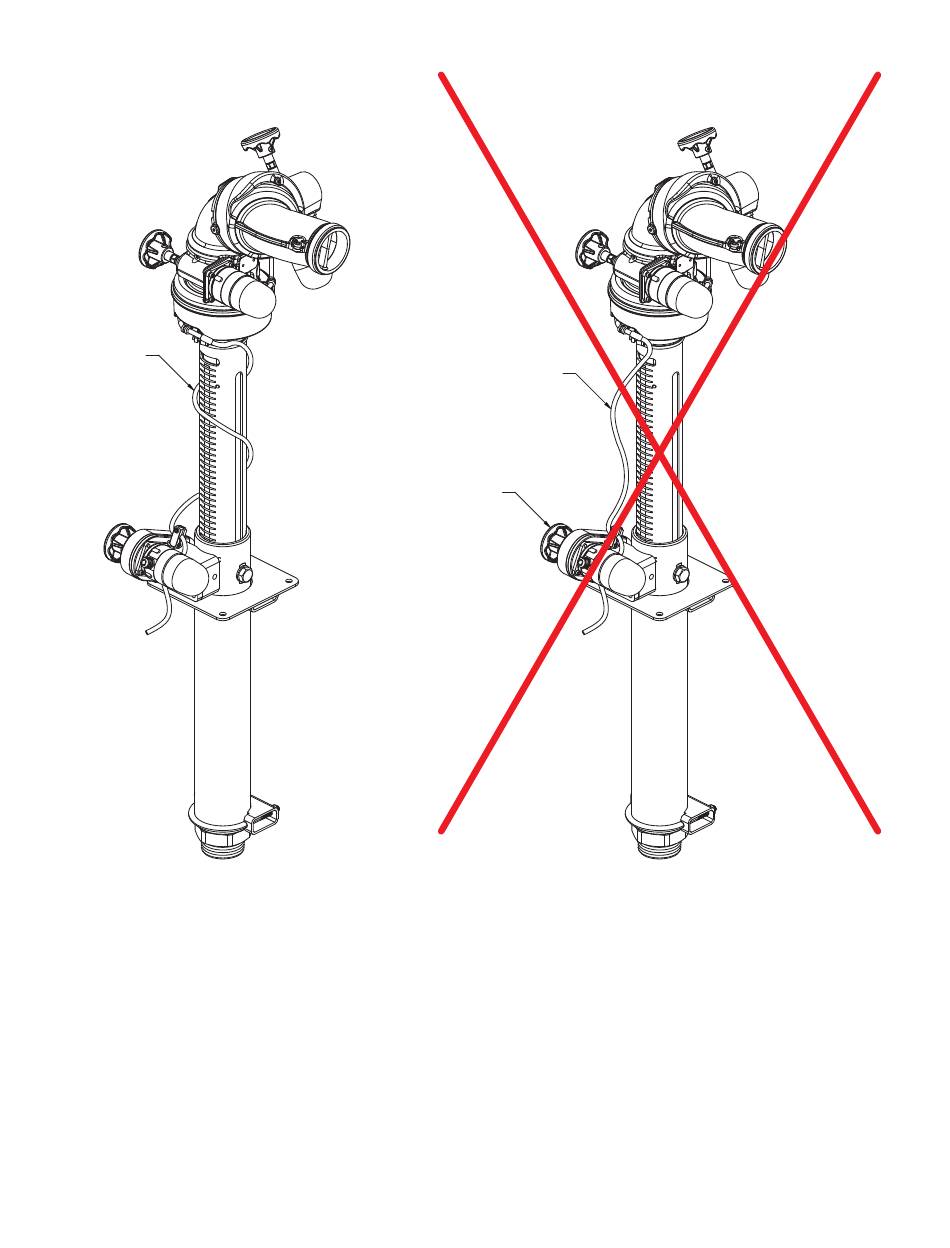

Fig 4.2.1C Possible Extend-A-Gun RC Mounting Orientations
The Extend-A-Gun manual override knob may be mounted in any of four possible orientations (90 degrees apart) relative to the
Straight Ahead Reference Mark on the monitor.
NOTE: Monsoon monitor, for use with Extend-A-Gun RC, comes with the wire installed in a nylon tube. The nylon tubing gives the
wire additional stiffness so it better follows as the Extend-A-Gun RC extends or retracts. A fi tting is also supplied and is to be used
where the nylon tubing and wire pass though the deck.
