9.0 MONSOON DRAWING & PARTS LIST

9.1 MONITOR CONTROL BOX

TO
POWER
CABLE
TO TFT
ER NOZZLE
MALE PLUG
TO HORIZONTAL
GEAR MOTOR
TO VERTICAL
GEAR MOTOR
MONSOON RC CONTROL BOX PARTS LIST
# DESCRIPTION
1 CABLE FITTING PG11
2 CABLE FITTING PG9
3 ENCLOSURE - BOX
4 LOCKNUT - PG9
5 LOCKNUT - PG11
6 BOARD - COMMUNICATION
7 ENCLOSURE - LID
8 CONTROL SWITCH PAD
9 BOARD - MOTOR CONTROL
10 BOARD - MAIN
11 V10-32 x 1/4 SET SCREW
12 O-RING-018
13 CONDUIT HOSE FITTING
14 FEMALE PLUG - 6 POLE
15 BOARD-OEM 900 MHZ RF MODULE
(included with part YE-RF-900)
16 ANTENNA W/FITTING
©Copyright Task Force Tips, Inc. 2004-2011

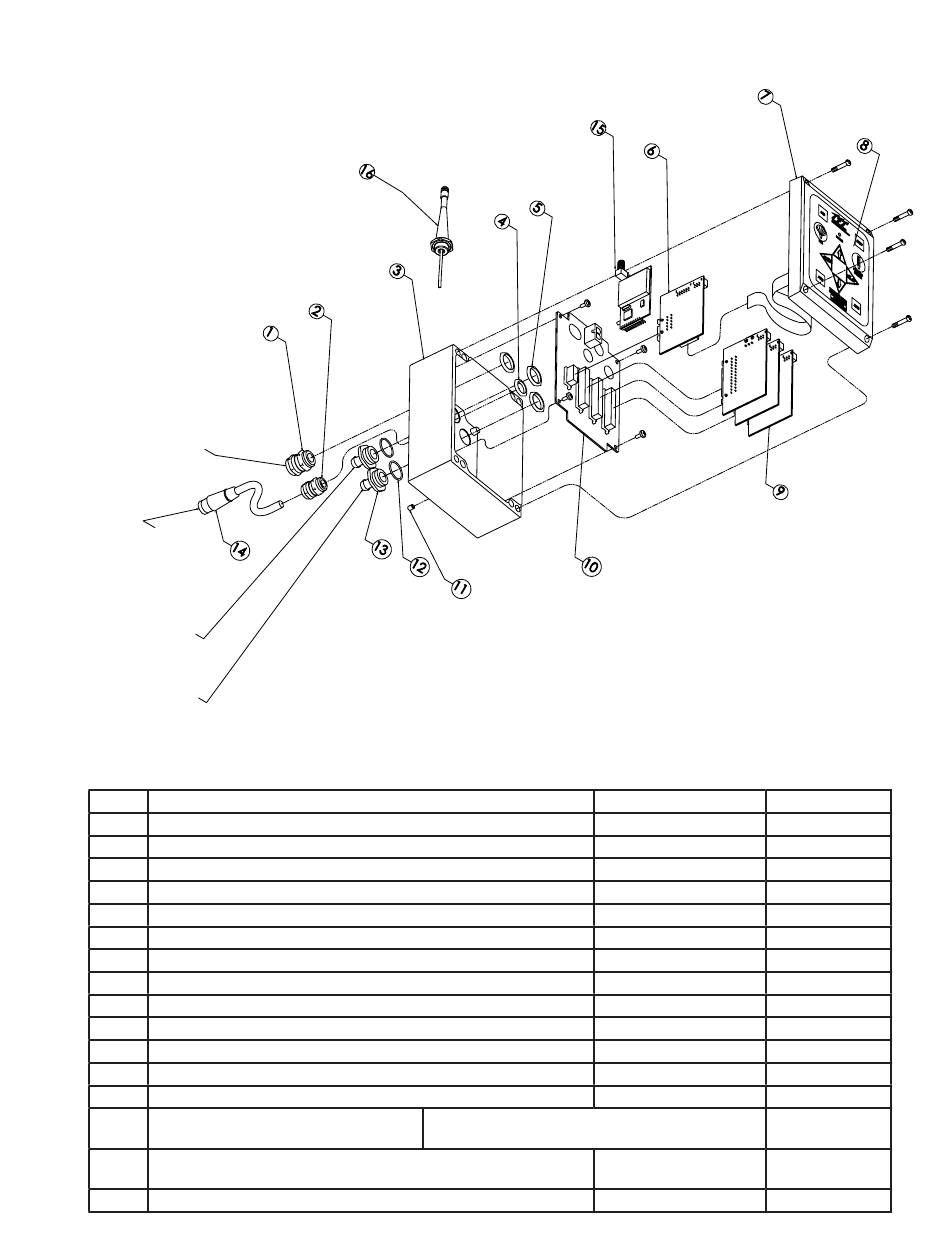

Fig 9.1 Monitor Control Box
21" or 28" TOTAL LENGTH USED
16" or 23" EXPOSED CABLE (not including plug)
23
QTY PART #
1 Y5205
1 Y5245
1 Y5115-B
1 Y5246
3 Y5206
1 Y5110-B
1 Y5115-L
1 Y5700
3 Y5100
1 Y5105
1 VT10Y32SS250
2 VO-018
2 Y5213
Y5475
1 Y5710
1 Y5881
LIY-200 May 24, 2011 Rev10
