4.2.2 HORIZONTAL ROTATION TRAVEL STOPS

The range of horizontal rotation travel for the manual Monsoon monitor is continuous 360 degrees. The motorized version is limited
to 450 degrees total horizontal rotation travel or 225 degrees from either side of a straight ahead position. Horizontal rotation travel
stop bolts may be installed in the monitor to limit travel as shown in fi gures 4.2.2A and 4.2.2B. Note that left and right are relative
to the "Straight Ahead Reference Mark" (the Straight Ahead Reference Mark is shown in fi gures 4.2.2A and 4.2.2B) and refer to the
nozzle's discharge direction as seen from an operator's position behind the nozzle. Figures 4.2.2A and 4.2.2B show the range of
travel for the various stop bolt locations and give installation notes.
LOCATION OF
STRAIGHT AHEAD
REFERENCE MARK
©Copyright Task Force Tips, Inc. 2004-2011

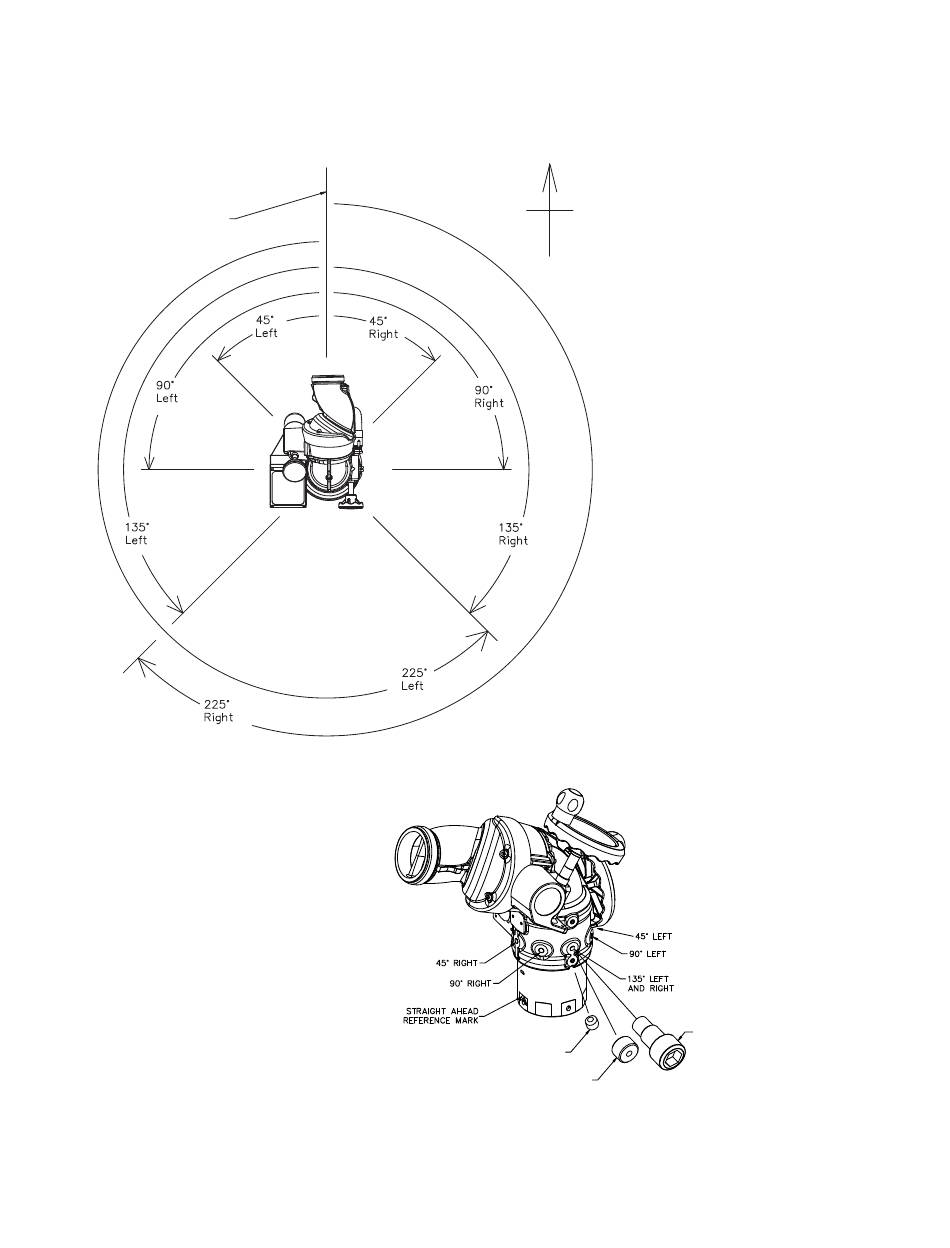

Fig 4.2.2A
Horizontal Rotation Travel Limits
Remove set screw and install stop
bolt to obtain desired travel limits.
Horizontal Rotation Travel Stop Locations
Electric model with no stop bolts installed
has 225° left and right horizontal rotation
travel limits.
Manual model with no stop bolts installed
has continuous 360° horizontal rotation
travel.
SET SCREW
#VT37-24SS375
ADJUSTMENT DISK, Y3146
INSTALL ON THIS SIDE OF STOP BOLT TO
REDUCE TRAVEL TO RIGHT BY APPROX 8°
FOR EACH DISK INSTALLED. INSTALL DISKS
ON OTHER SIDE TO REDUCE TRAVEL TO LEFT.
Fig 4.2.2B
15
STOP BOLT
Y4145
LIY-200 May 24, 2011 Rev10
