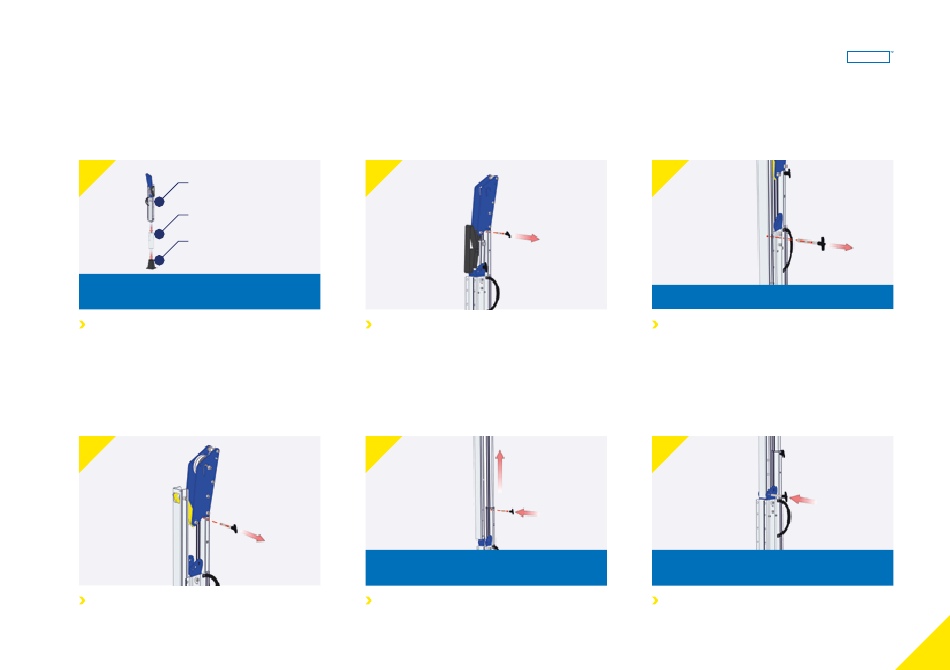

Assembling the PORTA DAVIT QUANTUM - Type W (Winched)
1
PORTA DAVIT QUANTUM
Socket Extension (Optional)
Socket
(Top Mount Shown)
Top Mount socket shown. If using a socket extension, install
first. The use of a ladder may be required.
Insert the PORTA DAVIT QUANTUM into the socket
as shown
4
Remove telescopic jib pin
2
Remove the telescopic jib pin
5
Holes on the lower and upper jib need to align.
Caution: Potential finger trap
Extend the jib and re-insert the pin
PORTADAVIT
3
Caution: Potential finger trap.
Remove column/ backstay pin and position the
backstay towards the ground ensuring that the
backstay remains inside the column fins
6
The backstay connection plates will need to rotate clockwise
to allow for this to happen.
Line up the bottom hole on the backstay with the
required operating reach hole and insert reach
adjustment pin
QUANTUM
