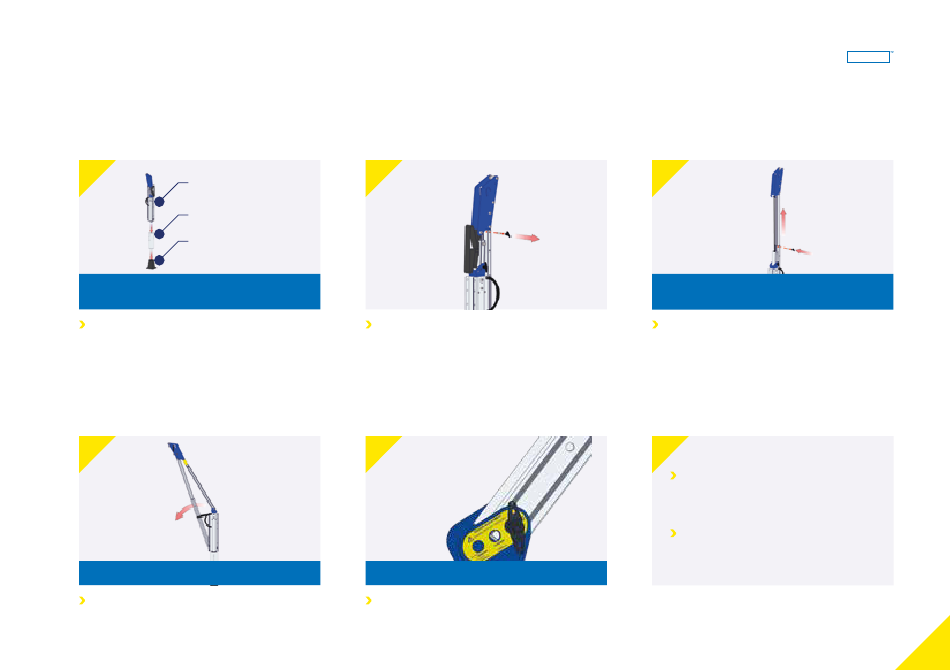

Assembling the PORTA DAVIT QUANTUM - Type S (Shackle only)
1
PORTA DAVIT QUANTUM
Socket Extension (Optional)
Socket
(Top Mount Shown)
Top Mount socket shown. If using a socket extension, install
first. The use of a ladder may be required.
Insert the PORTA DAVIT QUANTUM into the socket
as shown
4
For disassembly, reverse steps 1-4.
Release the jib retaining strap and rotate jib
assembly outwards
2
Remove the telescopic jib pin
Adjusting the Radius
5
Ensure the radius adjustment pin is fully engaged before use.
The operator can choose the most suitable reach
for use, by inserting the pin in the adjustment
plate
PORTADAVIT
3
Holes on the lower and upper jib need to align.
Caution: Potential finger trap
Extend the jib and re-insert the pin
6
The decal specifies the reach values with
the upper value stating the outer shackle
position and the lower value stating the
inner shackle position
The operating dimensions can be found
on page 19
QUANTUM
