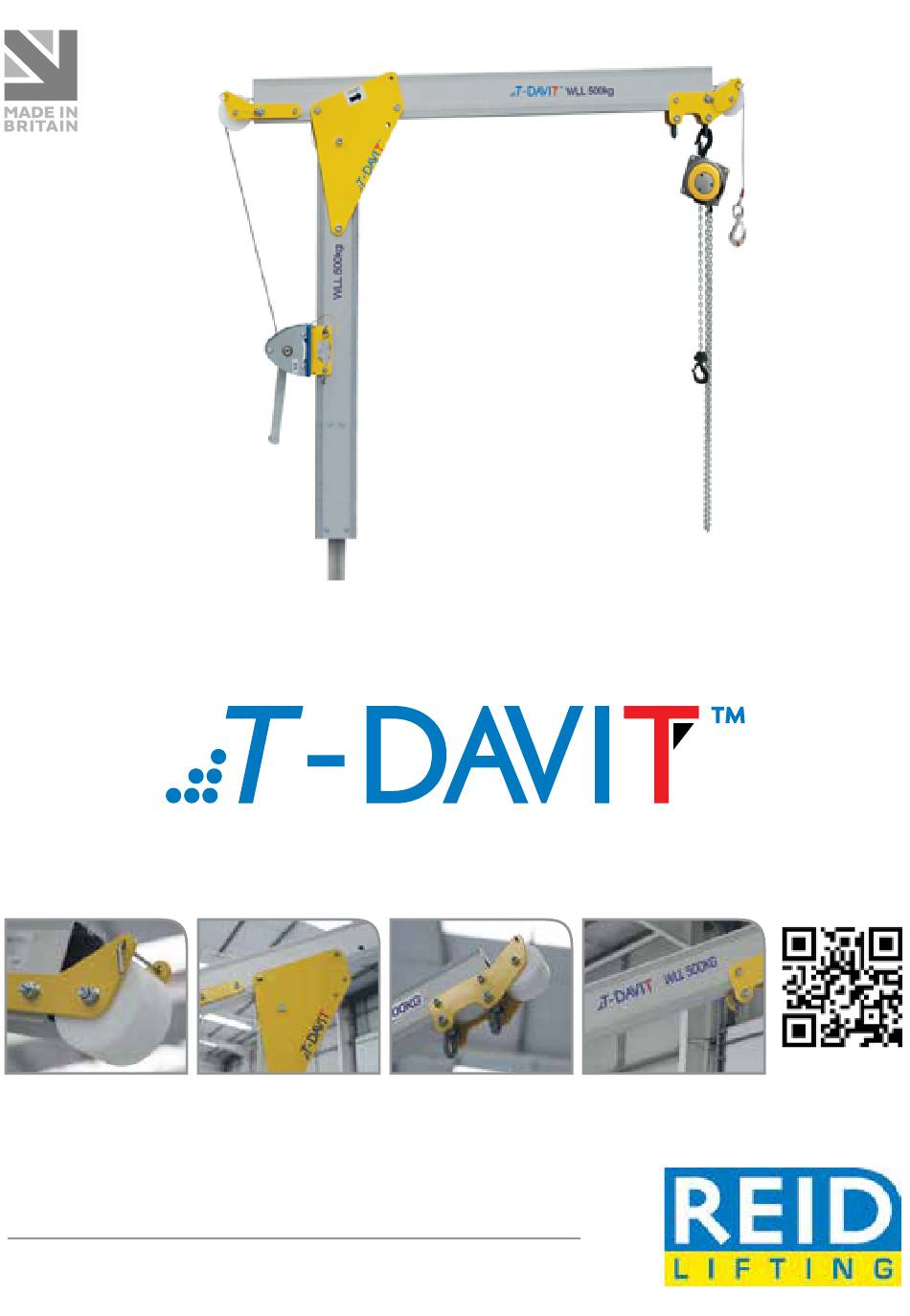

- Page 1 WEBSITE Assembly & Operation www.reidlifting.com Tel: +44 (0)1291 620796 www.reidlifting.com...
-
Page 2: Table Of Contents
No. 1 in lightweight, portable, safe lifting solutions CONTENTS ASSEMBLY INSTRUCTIONS INTRODUCTION • T-DAVIT - Type W • T-DAVIT - Type VW CORRECT OPERATION • T-DAVIT - Type T • Intended Use QUALITY & SAFETY • Inspection Prior to Initial Operation •... -
Page 3: Introduction
INTRODUCTION All users must read these operating instructions carefully prior to the initial operation. These instructions are intended to acquaint the user with the T-DAVIT and enable him/her to use it to the full extent of its intended capabilities. The operating instructions contain important information on how to handle the T-DAVIT in a safe, correct and economic manner. -
Page 4: Correct Operation
No. 1 in lightweight, portable, safe lifting solutions CORRECT OPERATION Before starting work inspect the assembly and all load- bearing components for visual defects. Intended Use Check the integrity of all profiles for denting and bolt The T-DAVIT range is intended to be used for the lifting holes for wear and elongation. -
Page 5: Notes For Correct Usage
• it may be required to reduce the WLL of the structure. required clearance of the fall arrest device should If in doubt contact your REID Lifting representative. be considered - refer to the device’s Operations and Maintenance manual NOTES FOR CORRECT USAGE •... -
Page 6: Warning
No. 1 in lightweight, portable, safe lifting solutions Warning Regulations The T-DAVIT complies with the following regulations: • The equipment shall not be used outside its limitations, or for any purpose other than that for PPE Regulation (EU) 2016/425, Machinery Directive which it is intended 2006/42/EC, ATEX Directive 2014/34/EU, The •... -
Page 7: Maintenance/Repair
125% of the goods’ WLL one of the sockets specified below (only sockets at its maximum radius. All tests should be carried supplied by REID Lifting are approved to be used out in all anticipated worst case loading directions, with the T-DAVIT): sustained for a duration of 3 minutes. -
Page 8: Marking
Any different or exceeding use is considered If required a sacrificial anchor may need to be incorrect and REID Lifting Ltd will not accept any installed to verify the installation has the ultimate responsibility for damages resulting from false capacities required. -
Page 9: Atex - Spark Formation
As Standard for Zone 2 If an isolating membrane is to be used, an earthing path must be provided. If the structure is to be used in Environments: a larger socket with a nylon sleeve the davit will have to be earthed using a 4mm earthing cable attached to a II 3 GD T6 convenient location on a metallic part of the structure. -
Page 10: Language
No. 1 in lightweight, portable, safe lifting solutions LANGUAGE It is essential for the safety of the user that if this product is re-sold outside the original country of destination the reseller shall provide instructions for use, maintenance, for periodic examination and for repair in the language of the country in which the product is to be used. -
Page 11: Assembly Instructions
ASSEMBLY INSTRUCTIONS T-DAVIT - Type W Gloves Protective footwear Hard hat N.B. Appropriate PPE should be worn: The T-DAVIT and its constituent components are described in the image below. The use of a socket extension is optional and the socket type may vary between a Top Mount, Side Mount, Bridge Mount, Cast In or Resin Bonded depending on application. - Page 12 No. 1 in lightweight, portable, safe lifting solutions Assembling the T-DAVIT Assembling the Winch Insert the T-DAVIT into the socket as shown. The T-DAVIT has the option to install a winch on the column as illustrated in the image. Ensure the N.B.
- Page 13 Assembling the Beam Position B Position B Position A Position A The T-DAVIT beam can be assembled at 2 positions Present the beam to the chosen location and insert as shown. Ensure the correct set-up is chosen at the clevis pin. Secure the pin with retaining R-clip. this stage.
-
Page 14: T-Davit - Type Vw
No. 1 in lightweight, portable, safe lifting solutions ASSEMBLY INSTRUCTIONS T-DAVIT - Type VW Gloves Protective footwear Hard hat N.B. Appropriate PPE should be worn: The T-DAVIT Type VW and its constituent components are described in the image below. The use of a socket extension is optional and the socket type may vary between a Top Mount, Side Mount, Bridge Mount, Cast In or Resin Bonded depending on application. - Page 15 Assembling the T-DAVIT Type VW Insert T-DAVIT column into socket. Place the beam between rollers and slide it in. N.B. Top Mount socket shown. N.B. If using a socket extension, install first. The use of a ladder may be required. Insert and secure bolt and spacer as shown.
- Page 16 No. 1 in lightweight, portable, safe lifting solutions Secure attachment with the nuts and bolts Place the winch and bracket in position. supplied. Secure assembly with the pins supplied. Thread the rope over the sheaves. The rope retaining pins need to be removed before fitting the rope.
- Page 17 Reinsert pins ensuring they are secure. Please refer to the Operating manual of the winch before use. Tel: +44 (0)1291 620796 www.reidlifting.com...
-
Page 18: T-Davit - Type T
No. 1 in lightweight, portable, safe lifting solutions ASSEMBLY INSTRUCTIONS T-DAVIT - Type T Gloves Protective footwear Hard hat N.B. Appropriate PPE should be worn: The T-DAVIT Type T and its constituent components are described in the image below. The use of a socket extension is optional and the socket type may vary between a Top Mount, Side Mount, Bridge Mount, Cast In or Resin Bonded depending on application. - Page 19 Assembling the T-DAVIT Type T Remove bolt and spacer at the front of the beam Thread beam trolley over the end of the beam Lock trolley with friction brake at approximately Reinsert bolt and spacer ensuring they are secure. centre position Tel: +44 (0)1291 620796 www.reidlifting.com...
- Page 20 No. 1 in lightweight, portable, safe lifting solutions Insert T-DAVIT column into the socket Present the beam to the column and insert clevis pin to take the weight of the beam Secure the pin with retaining R-clip Rotate the beam as illustrated...
- Page 21 Insert rear clevis pin Secure the pin with retaining R-clip Release trolley brake and use the hand chain to move the trolley along the beam. Tel: +44 (0)1291 620796 www.reidlifting.com...
-
Page 22: Quality & Safety
ACCREDITATIONS Conformité Européenne (CE) Quality and safety are key themes throughout this document and the REID Lifting ethos. It is with this in REID Lifting’s products have been designed, tested and mind that we have undertaken external accreditations approved (as appropriate) by the Conformité Européenne. -
Page 23: Inspection Record
INSPECTION INSPECTION RECORD * Insert data from serial numbers found on product into table below Product number(s)* A Serial number(s)* B WLL* C Year of manufacture* D Name of user Date of purchase Date of first use Periodic Examination and Repair History Date Inspected by Pass/Fail... - Page 24 WEBSITE TDOM/EN/V6/2018/09 All information herein is copyright protected by REID Lifting Ltd. All company and product names are Trade Mark and Trade Name protected and all REID Product IPR is protected under Patents, Patents Pending and/or Design Rights. Printed using environment friendly processes and materials...
