Assembly Instructions

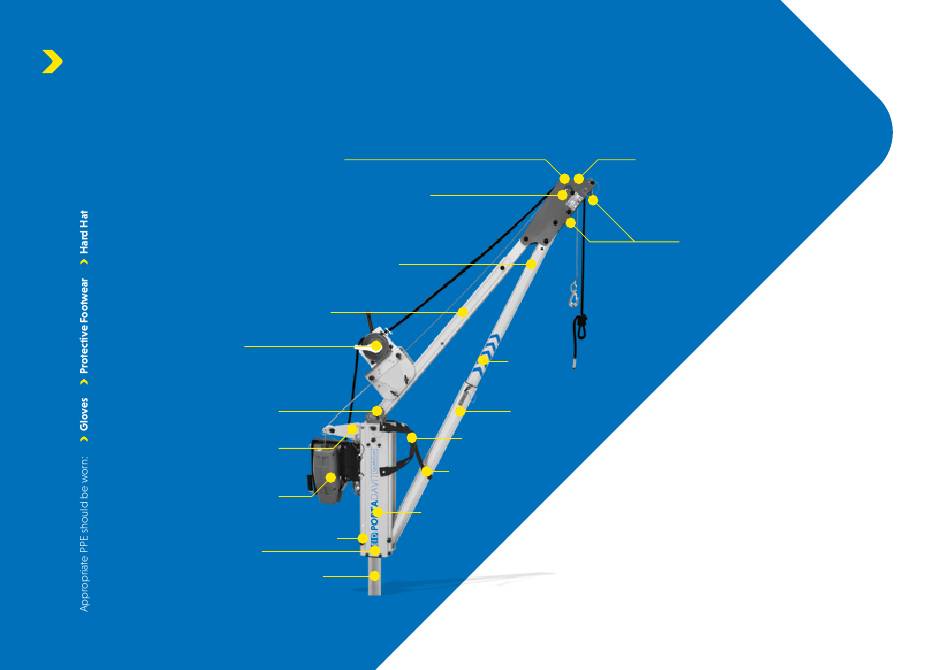

The PORTA DAVIT QUANTUM (Type W) and its constituent components are described in the image below.
The use of a socket extension is optional and the socket type may vary between a Top Mount, Side Mount, Bridge Mount, Cast In or Resin Bonded, depending on application.
Head
3x Sheaves
Sheave Adjustment Handle
Outer & Inner Shacke
Upper Jib
Rigid Backstay
Harken LokHead Double
Winch Bracket Assembly
Telescopic Jib Pin
Reach Adjustment Plates and Pin
Lower Jib
Carry Handle
Sheave Bracket Assembly
Jib Retaining Strap
Checkmate Fall Arrest & Retrival
Column Bracket Assembly
Column
Restraint Point
Innovative Bearing
Kingpin
