Lawnaire
IV & V
FOR LAWNAIRE IV MODELS

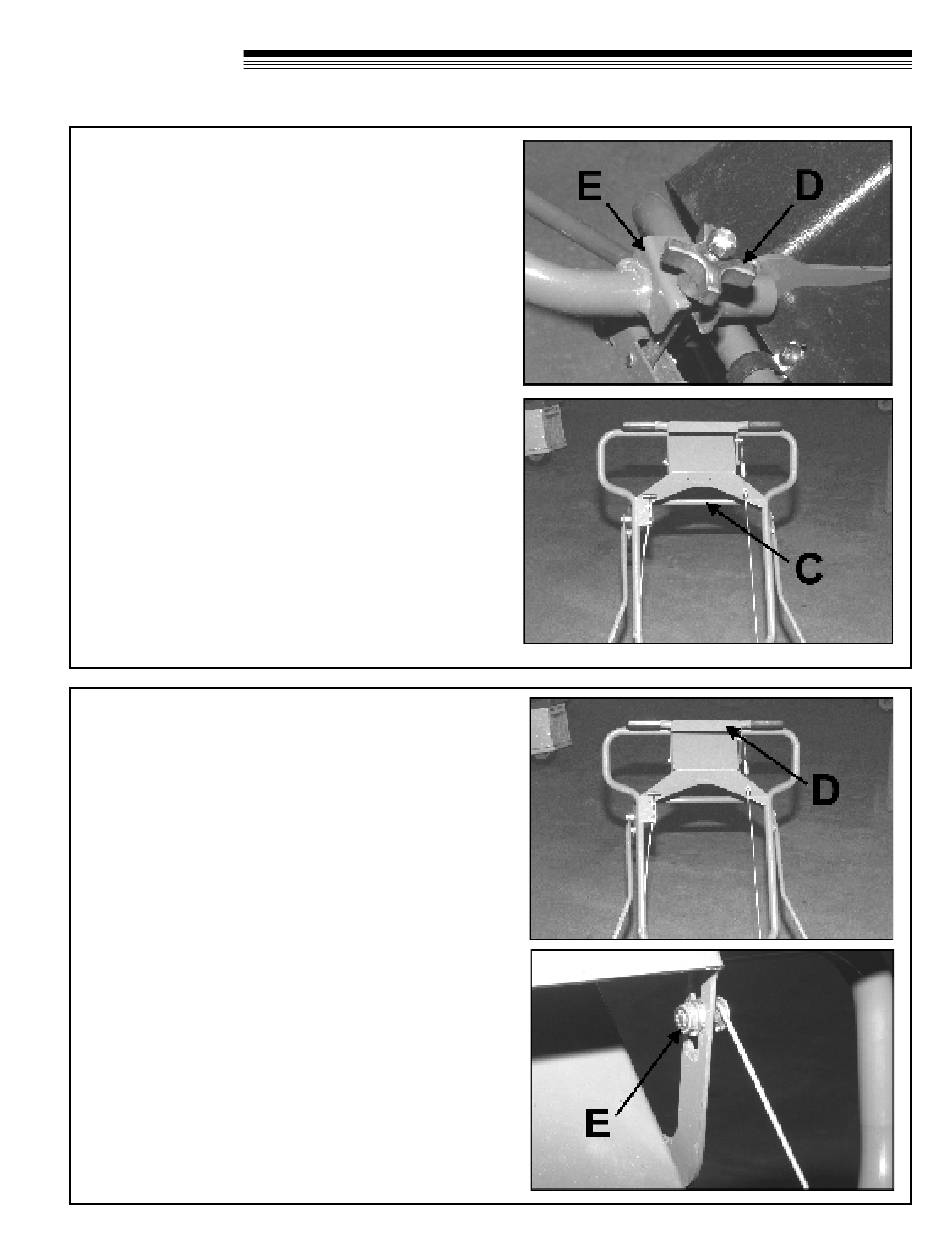

1. Flip the handle locking knobs D up into position
over the handle bracket E and tighten. HAND
TIGHTEN ONLY!.
2. Pull up on the transport lift handle C to raise the
aerator to the transport position.
3. Carefully roll the unit off the pallet.
NOTE: If the folding handle will not be used, bolt the
handle in place. See instructions in the
preceding section, for Lawnaire V Models.
CHECKING THE CLUTCH CABLE- The clutch
cable is adjusted prior to shipping; however, it
should be checked before the unit is put into
service.
1. Pull the clutch control handle D back and down
and make sure the idler engages the belt.
2. Release the clutch control handle D and make
sure the belt disengages completely.
3. If adjustment is necessary, loosen nut E on the
clutch spring hardware and adjust its position in
the slot of the clutch lever.
NOTE: Spring extension should not exceed .25 inch
ASSEMBLY/SET-UP INSTRUCTIONS
5
