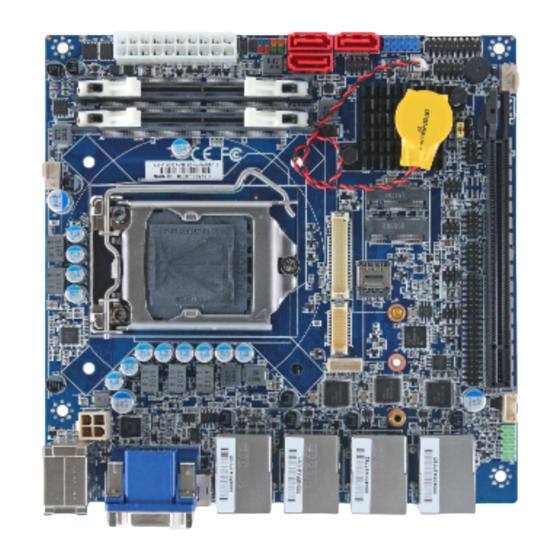

- Page 1 EMX-H310P Intel® 8/9th Generation Core™ Processor Mini ITX Motherboard With Intel® H310 Chipset User’s Manual Ed – 2 November 2020 Part No. E2047M31000R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
- Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 EMX-H310P User’s Manual...
-
Page 5: Table Of Contents
2.3.20 J1RS2 connector (J1RS2) ......................28 2.3.21 Auxiliary Panel connector (JAUXP1) ..................... 29 2.3.22 eDP-Panel connector (EDP 1) ....................... 29 2.3.23 LVDS connector (LVDS1) ......................30 2.3.24 Serial port connector (4COM1)...................... 31 2.3.25 Audio connector (FAUD1) ......................32 EMX-H310P User’s Manual... - Page 6 3.6.3.1.1 Memory Configuration ......................53 3.6.3.1.2 Graphics Configuration ......................54 3.6.3.1.3 DMI/OPI Configuration ......................54 3.6.3.1.4 PEG Port Configuration ......................55 3.6.3.1.4.1 PEG Port Feature Configuration.................... 56 3.6.3.2 PCH-IO Configuration ......................56 3.6.3.2.1 PCI Express Configuration ....................57 6 EMX-H310P User’s Manual...
- Page 7 4. Drivers Installation....................... 70 Install Chipset Driver ....................71 Install VGA Driver ....................72 Install ME Driver ...................... 74 Install Audio Driver ....................75 Install LAN Driver ....................76 Install RST Driver ....................78 5. Mechanical Drawing ....................80 EMX-H310P User’s Manual...
-
Page 8: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EMX-H310P motherboard 2 x SATA cables 1 x Copper stud for M.2 ... -
Page 9: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment November 2020 Avalue Initial Release EMX-H310P User’s Manual... -
Page 10: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up EMX-H310P or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 11: System Specifications
2 x 2 x 5 pin, pitch 2.00mm connector for COM1~2 support RS-232 connector COM 3~6 1 x 2 x 20 pin, pitch 2.00mm connector for COM 3~6 support RS-232 connector USB 2.0 1 x 2 x 5 pin pitch 2.54mm connector for 2 x USB 2.0 EMX-H310P User’s Manual 11... - Page 12 Ethernet 1 x Intel® I219LM Gigabit Ethernet PHY LAN Chipset 3 x Intel® I210AT PCI-e Gigabit Ethernet LAN Spec. 10/100/1000 Base-Tx GbE compatible Mechanical & Environmental Specification Power +12V / +5V / 5VSB /+3.3V / -12V 12 EMX-H310P User’s Manual...
- Page 13 Operating 40°C @ 95% Relative Humidity, Non-condensing Humidity Size (L x W) 6.7" x 6.7" (170mm x 170mm) Weight 0.40kg Note: Specifications are subject to change without notice. User condition suggestion: Other Ethernet LED Indicator EMX-H310P User’s Manual 13...
-
Page 14: Architecture Overview-Block Diagram
EMX-H310P User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of EMX-H310P. Note: Limitation regarding to Renesas uPD720201 PCIe to USB3.0 Performance. 14 EMX-H310P User’s Manual... -
Page 15: Hardware Configuration
User’s Manual 2. Hardware Configuration EMX-H310P User’s Manual 15... -
Page 16: Product Overview
EMX-H310P User’s Manual 2.1 Product Overview 16 EMX-H310P User’s Manual... -
Page 17: Jumper And Connector List
4 x 1 wafer, pitch 2.54mm (with smart fan function supported) CPU fan connector 4 x 1 wafer, pitch 2.54mm CPUFAN1 Auxiliary Panel connector 4 x 2 header, pitch 2.00mm JAUXP1 SPI1 Miscellaneous setting connector 4 x 2 header, pitch 2.00mm EMX-H310P User’s Manual 17... - Page 18 DIMMA1 260-pin DIMM slot 1 DIMMB1 260-pin DIMM slot 2 M2KE1 M.2 Key E M2KB1 M.2 Key B PCIEX1 PCI-e x16 slot SIM1 SIM card slot CPU connector VGA1 VGA connector DP connector PS2+USB connector PS2USB1 18 EMX-H310P User’s Manual...
-
Page 19: Setting Jumpers & Connectors
User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Serial port 1 pin9 signal select (JRI1) Ring* +12V * Default 2.3.2 Serial port 2 pin9 signal select (JRI2) Ring* +12V * Default EMX-H310P User’s Manual 19... -
Page 20: Bios Me Function Configuration (Jme1)
EMX-H310P User’s Manual 2.3.3 BIOS ME function configuration (JME1) Enable ME * Disable ME * Default 2.3.4 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default 20 EMX-H310P User’s Manual... -
Page 21: At/Atx Power Mode Select (Jsatx1)
User’s Manual 2.3.5 AT/ATX Power Mode Select (JSATX1) * Default 2.3.6 General purpose I/O connector (DIO1) Signal PIN PIN Signal 5V_SMB_CLK 5V_SMB_DATA EMX-H310P User’s Manual 21... -
Page 22: Atx Power Connector (Atxpwr2)
EMX-H310P User’s Manual 2.3.7 ATX Power connector (ATXPWR2) Signal PIN PIN Signal +V12S_CPU +V12S_CPU 2.3.8 USB connector (JUSBH1) Signal PIN PIN Signal +V5A_USB_H123 +V5A_USB_H123 USB_HDN1 USB_HDN2 USB_HDP1 USB_HDP2 22 EMX-H310P User’s Manual... -
Page 23: Lpc Connector (Jlpc1)
User’s Manual 2.3.9 LPC connector (JLPC1) Signal PIN PIN Signal LPC_AD0 +3.3V LPC_AD1 PLT_RST#_BUF LPC_AD2 LPC_FRAME# LPC_AD3 LPC_DEG_CLK LPC_SERIRQ 2.3.10 Miscellaneous setting connector (SPI1) Signal PIN PIN Signal + V3.3A_SPI SPI_CS0# SPI_CLK SPI_MISO SPI_MOSI SPI_HOLD# EMX-H310P User’s Manual 23... -
Page 24: Speaker Connector (Spk1)
EMX-H310P User’s Manual 2.3.11 Speaker connector (SPK1) Signal LSPK+ LSPK- RSPK+ RSPK- 2.3.12 LCD Inverter connector (JBKL1) Signal +12V LVDS_BKLTEN LVDS_BKLADJ 24 EMX-H310P User’s Manual... -
Page 25: Front Panel Connector (Jfp1)
User’s Manual 2.3.13 Front Panel connector (JFP1) Signal PIN PIN Signal HDD_LED+ PWR_LED+ HDD_LED- PWR_LED- SYS_RST# PWRBTN# 2.3.14 CPU fan connector (CPUFAN1) Signal +12V CPU_R_FANIN CPU_FANOUT EMX-H310P User’s Manual 25... -
Page 26: System Fan Connector (Sysfan1)
EMX-H310P User’s Manual 2.3.15 System fan connector (SYSFAN1) Signal SYS_FANOUT SYS_R_FANIN +12V 2.3.16 ATX Power connector (ATXPWR1) Signal PIN PIN Signal +3.3V +3.3V +3.3V ATX_PSON# ATX20_PWROK +V5A_SB +12V 26 EMX-H310P User’s Manual... -
Page 27: Serial Port Connector (Com1)
User’s Manual 2.3.17 Serial port connector (COM1) Signal PIN PIN Signal NDCDA# NRXDA NTXDA NDTRA# NDSRA# NRTSA# NCTSA# NRIA# 2.3.18 Serial port connector (COM2) Signal PIN PIN Signal NDCDB# NRXDB NTXDB NDTRB# NDSRB# NRTSB# NCTSB# NRIB# EMX-H310P User’s Manual 27... -
Page 28: J1Rs1 Connector (J1Rs1)
EMX-H310P User’s Manual 2.3.19 J1RS1 connector (J1RS1) Signal PIN PIN Signal A485TX- A422RX- A485TX+ A422RX+ 2.3.20 J1RS2 connector (J1RS2) Signal PIN PIN Signal B485TX- B422RX- B485TX+ B422RX+ 28 EMX-H310P User’s Manual... -
Page 29: Auxiliary Panel Connector (Jauxp1)
User’s Manual 2.3.21 Auxiliary Panel connector (JAUXP1) Signal PIN PIN Signal FRONT_LAN1_ACT FRONT_LAN2_ACT FRONT_LAN3_ACT FRONT_LAN4_ACT 2.3.22 eDP-Panel connector (EDP 1) Signal PIN PIN Signal EDP_VCC_PAL EDP_VCC_PAL EDP_TXP2 EDP_C_HPD EDP_TXN2 EDP_AUXP EDP_TXP1 EDP_AUXN EDP_TXN1 EDP_TXP0 EDP_TXP3 EDP_TXN0 EDP_TXN3 EMX-H310P User’s Manual 29... -
Page 30: Lvds Connector (Lvds1)
EMX-H310P User’s Manual 2.3.23 LVDS connector (LVDS1) Signal PIN PIN Signal LVDS_VDD12V LVDS_VDD12V LVDS_CLK2N LVDS_CLK1N LVDS_CLK2P LVDS_CLK1P LVDS_DATAN7 LVDS_DATAN6 LVDS_DATAP7 LVDS_DATAP6 LVDS_DATAN5 LVDS_DATAN4 LVDS_DATAP5 LVDS_DATAP4 LVDS_DATAN3 LVDS_DATAN2 LVDS_DATAP3 LVDS_DATAP2 LVDS_DATAN1 LVDS_DATAN0 LVDS_DATAP1 LVDS_DATAP0 LVDS_VDD33V LVDS_VDD5V LVDS_VDD33V LVDS_VDD5V 30 EMX-H310P User’s Manual... -
Page 31: Serial Port Connector (4Com1)
Signal PIN PIN Signal NRIF# NCTSF# NRTSF# NDSRF# NDTRF# NTXDF NRXDF NDCDF# NRIE# NCTSE# NRTSE# NDSRE# NDTRE# NTXDE NRXDE NDCDE# NRID# NCTSD# NRTSD# NDSRD# NDTRD# NTXDD NRXDD NDCDD# NRIC# NCTSC# NRTSC# NDSRC# NDTRC# NTXDC NRXDC NDCDC# EMX-H310P User’s Manual 31... -
Page 32: Audio Connector (Faud1)
EMX-H310P User’s Manual 2.3.25 Audio connector (FAUD1) Signal PIN PIN Signal LINE2_JD LINE2_L SENSE_B MIC2_JD LINE2_R AUD_FRONT_DET# MIC2_R MIC2_L 32 EMX-H310P User’s Manual... -
Page 33: Bios Setup
User’s Manual 3.BIOS Setup EMX-H310P User’s Manual 33... -
Page 34: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 34 EMX-H310P User’s Manual... -
Page 35: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. EMX-H310P User’s Manual 35... -
Page 36: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 36 EMX-H310P User’s Manual... -
Page 37: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. EMX-H310P User’s Manual 37... -
Page 38: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 38 EMX-H310P User’s Manual... -
Page 39: Cpu Configuration
Item Options Description When enabled, a VMM can utilize the Intel (VMX) Virtualization Disabled additional hardware capabilities provided by Technology Enabled[Default], Vanderpool Technology. All[Default], Number of cores to enable in each processor Active Processor Cores package. EMX-H310P User’s Manual 39... -
Page 40: Cpu - Power Management Control
Turbo Mode (requires Intel Speed Step or Intel Speed Shift Enabled[Default], to be available and enabled). Enable/Disable CPU Power Management. Disabled C states Allows CPU to go to C states when it’s not Enabled[Default], 100% utilized 40 EMX-H310P User’s Manual... -
Page 41: Pch-Fw Configuration
User’s Manual 3.6.2.2 PCH-FW Configuration 3.6.2.2.1 Firmware Update Configuration Item Option Description Disabled[Default], Me FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled EMX-H310P User’s Manual 41... -
Page 42: Trusted Computing
O.S. will not show Security Device. TCG EFI Enable[Default] protocol and INT1A interface will not be available. 3.6.2.4 ACPI Settings Item Options Description Enable ACPI Auto Disabled[Default], Enables or Disables BIOS ACPI Auto Configuration Enabled Configuration. 42 EMX-H310P User’s Manual... -
Page 43: Super Io Configuration
Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). EMX-H310P User’s Manual 43... -
Page 44: Serial Port 1 Configuration
3.6.2.5.1 Serial Port 1 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], RS232[Default], UART 232 422 485 RS422 Set COM Port as RS232, RS422 or RS485 mode. RS485 3.6.2.5.2 Serial Port 2 Configuration 44 EMX-H310P User’s Manual... -
Page 45: Serial Port 3 Configuration
UART 232 422 485 RS422 Set COM Port as RS232, RS422 or RS485 mode. RS485 3.6.2.5.3 Serial Port 3 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.4 Serial Port 4 Configuration EMX-H310P User’s Manual 45... -
Page 46: Serial Port 5 Configuration
Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.6 Serial Port 6 Configuration 46 EMX-H310P User’s Manual... -
Page 47: Nct6106D H/W Monitor
3.6.2.6 NCT6106D H/W Monitor 3.6.2.6.1 Smart Fan Configuration Item Option Description Manual Mode Mode 01 Avalue Smart Fan Mode Select: Mode 01 to Mode CPU Fan Mode Mode 02 20 Or Manual (No Smart Fan) Mode 03 Mode 04 EMX-H310P User’s Manual 47... - Page 48 Avalue Smart Fan Mode Select: Mode 01 to Mode SYS Fan Mode Mode 10 20 Or Manual (No Smart Fan) Mode 11 Mode 12 Mode 13 Mode 14 Mode 15 Mode 16 Mode 17 Mode 18 Mode 19 Mode 20 48 EMX-H310P User’s Manual...
-
Page 49: S5 Rtc Wake Settings
Wake system from S5 Fixed Time specified. Select DynamicTime, System will wake on Dynamic Time the current time + Increase minute(s). 3.6.2.8 Serial Port Console Redirection Item Options Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled EMX-H310P User’s Manual 49... -
Page 50: Usb Configuration
Mass storage device emulation type. 'AUTO' Floppy enumerates devices according to their media JetF lashTranscend 8GB 1100 Forced FDD format. Optical drives are emulated as 'CDROM' Hard Disk drives with no media will be emulated according CD-ROM to a drive type. 50 EMX-H310P User’s Manual... -
Page 51: Network Stack Configuration
3.6.2.10 Network Stack Configuration Item Options Description Disabled[Default], Network Stack Enable/Disable UEFI Network Stack. Enabled quad Note: Motherboard designed with Gigabit LAN consumes longer startup time when Network Stack setting at “Enable”, this is a normal phenomenon. EMX-H310P User’s Manual 51... -
Page 52: Chipset
EMX-H310P User’s Manual 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Disabled VT-d VT-d capability. Enabled[Default] 52 EMX-H310P User’s Manual... -
Page 53: Memory Configuration
1.25 GB 1.5 GB Maximum Value of TOLUD. Dynamic 1.75 GB assignment would adjust TOLUD Max TOLUD 2 GB automatically based on largest MMIO length 2.25 GB of installed graphic controller 2.5 GB 2.75 GB 3 GB EMX-H310P User’s Manual 53... -
Page 54: Graphics Configuration
EMX-H310P User’s Manual 3.6.3.1.2 Graphics Configuration Item Option Description Auto[Default] Select which of IGFX/PEG Graphics Primary Display IGFX device should be Primary Display. GTT Size Select the GTT Size 8MB[Default] 3.6.3.1.3 DMI/OPI Configuration 54 EMX-H310P User’s Manual... -
Page 55: Peg Port Configuration
PEG0 (PCIEX1) Max Payload size Auto(Default Device Capability) or force to 256 TLP 128/256 Bytes Enabled: PCIe ASPM will be programmed Disabled[Default] after OpROM. Disabled: PCIe ASPM will be Program PCIe ASPM after OpROM Enabled programmed before OpROM. EMX-H310P User’s Manual 55... -
Page 56: Peg Port Feature Configuration
EMX-H310P User’s Manual 3.6.3.1.4.1 PEG Port Feature Configuration Item Option Description Disabled[Default] Detect Non-Compliance PCI Express Device Detect Non-Compliance Device Enabled in PEG 3.6.3.2 PCH-IO Configuration 56 EMX-H310P User’s Manual... -
Page 57: Pci Express Configuration
PCI Express Root Port 5 Control the PCI Express Root Port. Enabled[Default], Disabled[Default] Set the ASPM Level: Force L0s - Force all ASPM 4 links to L0s State AUTO - BIOS auto configure DISABLE - Disables ASPM. EMX-H310P User’s Manual 57... -
Page 58: Intel I211/I210 Lan Chip (Pci-E Port 6)
L0s State AUTO - BIOS auto L0sL1 configure DISABLE - Disables ASPM. Auto Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default] Auto[Default] Gen1 PCIe Speed Configure PCIe Speed Gen2 Gen3 58 EMX-H310P User’s Manual... -
Page 59: Keye (Pci-E Port 7~8)
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. EMX-H310P User’s Manual 59... -
Page 60: Intel I211/I210 Lan Chip (Pci-E Port 11)
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. 60 EMX-H310P User’s Manual... -
Page 61: Intel I211/I210 Lan Chip (Pci-E Port 12)
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. EMX-H310P User’s Manual 61... -
Page 62: Sata And Rst Configuration
Test Mode Enable/Disable (Loop Back). Disabled[Default], Disabled SATA Port Enable or Disable SATA Port Enabled[Default], Hard Disk Identify the SATA port is connected to Solid SATA Device Type Drive[Default], State Drive or Hard Disk Drive. Solid State Drive 62 EMX-H310P User’s Manual... -
Page 63: Hd Audio Configuration
Control Detection of the HD-Audio device. Disabled = Disabled HD Audio HDA will be unconditionally disabled Enabled = HDA Enabled[Default], will be unconditionally enabled. 3.6.3.3 Board Configuration Item Option Description Disabled Active Panel (eDP/LVDS) Active Internal LVDS(eDP->Ch7511-to-LVDS) Enabled[Default], EMX-H310P User’s Manual 63... - Page 64 Wake Up by Ring Wake Up by Ring from S3/S4/S5 Enabled[Default], 11db 14db Amplifier Gain Amplifier Gain 19db[Default], 25db Disabled Enabled/Disabled USB Standby Power during USB Standby Power Enabled[Default], S3/S4/S5 Disabled[Default], SHOW DMI INFO SHOW DMI INFO Enabled 64 EMX-H310P User’s Manual...
-
Page 65: Security
User’s Manual 3.6.4 Security Item Description Administrator Password Set Administrator Password User Password Set User Password 3.6.4.1 Secure Boot EMX-H310P User’s Manual 65... -
Page 66: Restore Factory Keys
The mode change requires platform reset Secure Boot mode options: Standard or Custom. In Standard Custom mode, Secure Boot Policy variables can be Secure Boot Mode Custom[Default], configured by a physically present user without full authentication 3.6.4.1.1 Restore Factory Keys 66 EMX-H310P User’s Manual... -
Page 67: Key Management
Option Description Number of seconds to wait for setup Setup Prompt Timeout activation key. 65535(0xFFFF) means indefinite waiting. On[Default] Bootup NumLock State Select the keyboard NumLock state. Quiet Boot Disabled[Default] Enable or disable Quiet Boot option. EMX-H310P User’s Manual 67... -
Page 68: Save & Exit
EMX-H310P User’s Manual Enabled Boot Option #1 Sets the system boot order 3.6.6 Save & Exit 3.6.5.1 Save Changes and Reset Reset the system after saving the changes. 68 EMX-H310P User’s Manual... -
Page 69: Discard Changes And Reset
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.5.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. EMX-H310P User’s Manual 69... -
Page 70: Drivers Installation
EMX-H310P User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 70 EMX-H310P User’s Manual... -
Page 71: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Complete setup. Step 2. Click Accept. EMX-H310P User’s Manual 71... -
Page 72: Install Vga Driver
Continue to go Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Yes. Step 5. Click Next. SUPPORTED PRODUCTS: 72 EMX-H310P User’s Manual... - Page 73 Step 6. Click Finish to complete setup. The Intel® Graphics Driver contains support for the following Intel Chipsets/Processors with the following graphic support: Intel® , Iris® Pro and Intel® HD graphics: ．6 Gen Intel® Core™ processor family (codename Skylake) (Workstation-Xeon) EMX-H310P User’s Manual 73...
-
Page 74: Install Me Driver
Continue to go on. Step 3. Click Next Step 4. Click Next Step 1. Click Next to continue setup. Step 5. Click Finish to complete the setup Step 2. Click Next. 74 EMX-H310P User’s Manual... -
Page 75: Install Audio Driver
Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step1. Click Next to Install. Step 3. Select Finish to complete Installation. Step 2. Click Next. EMX-H310P User’s Manual 75... -
Page 76: Install Lan Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Software Step 4. Click Next. Step 2. Click Next to continue installation. Step 5. Click Install. 76 EMX-H310P User’s Manual... - Page 77 User’s Manual Step 6. Click Next. Step 7. Click Finish to complete setup. EMX-H310P User’s Manual 77...
-
Page 78: Install Rst Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Finish to complete setup. 78 EMX-H310P User’s Manual... - Page 79 User’s Manual Step 6. Click Next. Step 7. Click Finish to complete setup. EMX-H310P User’s Manual 79...
-
Page 80: Mechanical Drawing
EMX-H310P User’s Manual 5. Mechanical Drawing 80 EMX-H310P User’s Manual... - Page 81 User’s Manual Unit: mm EMX-H310P User’s Manual 81...
- Page 82 EMX-H310P User’s Manual Unit: mm 82 EMX-H310P User’s Manual...
