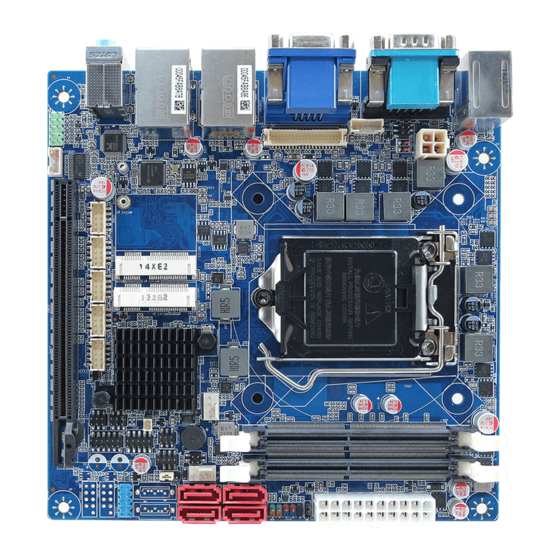

EMX-H110KP
Intel® Core™ Processors with Intel® H110 Mini ITX
Motherboard
User's Manual
nd
Ed –15 January 2019
2
Part No. E2047M11K01R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMX-H110KP and is the answer not in the manual?

Questions and answers

Summary of Contents for Avalue Technology EMX-H110KP

  • Page 1 EMX-H110KP Intel® Core™ Processors with Intel® H110 Mini ITX Motherboard User’s Manual Ed –15 January 2019 Part No. E2047M11K01R...
  • Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
  • Page 3: Technical Support

    Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
  • Page 4: Product Warranty

    A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 EMX-H110KP User’s Manual...
  • Page 5: Table Of Contents

    2.3.19 CPU fan connector (CPUFAN1) ....................29 2.3.20 Serial port 1 connector (COM1) ..................... 29 2.3.21 System fan connector (SYSFAN1) ....................30 2.3.22 ATX 12V power connector (ATX12V1) ..................30 2.3.23 Gigabit LAN (RJ-45) connector (LAN1/2) ..................31 EMX-H110KP User’s Manual...
  • Page 6 3.6.2.12 USB Configuration ......................... 56 3.6.3 Chipset............................57 3.6.3.1 System Agent (SA) Configuration ..................57 3.6.3.1.1 Graphics Configuration ......................58 3.6.3.1.2 DMI/OPI Configuration ......................59 3.6.3.1.3 PEG Port Configuration ......................59 3.6.3.1.4 Memory Configuration ......................61 6 EMX-H110KP User’s Manual...
  • Page 7 Install Chipset Driver ....................73 Install VGA Driver ....................74 Install ME Driver ...................... 75 Install Audio Driver (For Realtek ALC892 HD Audio) ..........76 Install LAN Driver ....................77 Install RST Driver ....................79 5. Mechanical Drawing ....................81 EMX-H110KP User’s Manual...
  • Page 8: Getting Started

    1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EMX-H110KP motherboard  2 x SATA cable  1 x I/O Shield ...
  • Page 9: Document Amendment History

    User’s Manual 1.3 Document Amendment History Revision Date Comment August 2017 Avalue Initial Release January 2019 Avalue Update Setting Jumpers & Connectors EMX-H110KP User’s Manual...
  • Page 10: Manual Objectives

    We strongly recommend that you study this manual carefully before attempting to set up EMX-H110KP or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance.
  • Page 11: System Specifications

    - 3 SATAIII Internal I/O 1 x Half Size Mini PCI-e Connector COM 1 Pin9 power selection: - 1 x 2 x 3 pin, pitch 2.00mm connector for COM 1 support RS232 with Pin 9, +5V/+12V/RI COM 2: EMX-H110KP User’s Manual 11...
  • Page 12 COM1 support RS-232 DB9 connector, Pin 9 with / +5V/+12V/RI Supported 1 x Line-out,1 x Mic-In,1 x Line-in 1 x PS/2 Keyboard or PS/2 Mouse with Dual deck USB 2.0 Mechanical & Environmental Power +12V / +5V / 5VSB /+3.3V/ -12V Requirement 12 EMX-H110KP User’s Manual...
  • Page 13 Humidity Size (L x W) 6.7" x 6.7" (170mm x 170mm) Weight 0.40 kg Note: 1. The Windows 7 & Windows 8 must be Setup USB 3.0 driver. 2. Specifications are subject to change without notice. EMX-H110KP User’s Manual 13...
  • Page 14: Architecture Overview-Block Diagram

    EMX-H110KP User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of EMX-H110KP. 14 EMX-H110KP User’s Manual...
  • Page 15: Hardware Configuration

    User’s Manual 2. Hardware Configuration EMX-H110KP User’s Manual 15...
  • Page 16: Product Overview

    EMX-H110KP User’s Manual 2.1 Product Overview 16 EMX-H110KP User’s Manual...
  • Page 17: Jumper And Connector List

    System fan connector JFP1 Front panel setting connector 5 x 2 header, pitch 2.54 mm SODIMM1/2 260-pin DDR4 DIMM socket AUDIO1 Line out, Mic in, Line out 5 x 2 header, pitch 2.54 mm JAUDIO2 Front Audio connector EMX-H110KP User’s Manual 17...
  • Page 18 Half size Mini-PCI-e connector 2 10 x 2 wafer, pitch 4.20mm ATXPWR1 ATX Power connector ATX12V1 ATX 12V power connector 2 x 2 wafer, pitch 4.20mm Serial ATA III connector 1~4 SATA1~4 HDMI1 HDMI connector DP connector VGA1 VGA connector 18 EMX-H110KP User’s Manual...
  • Page 19: Setting Jumpers & Connectors

    2.3 Setting Jumpers & Connectors 2.3.1 Serial port 1 pin9 signal select (JRI1) Ring* +12V * Default Note: Max Current 1A. 2.3.2 Serial port 2 pin9 signal select (JRI2) Ring* +12V * Default Note: Max Current 1A. EMX-H110KP User’s Manual 19...
  • Page 20: At/Atx Power Mode Select (Jatatx1)

    EMX-H110KP User’s Manual 2.3.3 AT/ATX Power Mode Select (JATATX1) ATX* * Default 2.3.4 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default 20 EMX-H110KP User’s Manual...
  • Page 21: Lcd Inverter Connector (Jbkl1)

    LCD Inverter connector (JBKL1) Signal Max current +12V BKLEN VBRIGHT Note: Mapping connector PHR5. 2.3.6 Serial port 2/3/4/5/6 connector (JCOM2/3/4/5/6) JCOM2 JCOM3 JCOM4 JCOM5 JCOM6 Signal PIN PIN Signal NRXD NDCD# NDTR# NTXD NDSR# NCTS# NRTS# NRI# EMX-H110KP User’s Manual 21...
  • Page 22: Com2 Rs485/422 Connector (Jcom2_422_485)

    Signal PIN PIN Signal 422TX- 422RX- 422TX+ 422RX+ RS-485 Signal PIN PIN Signal Note: DATA- Max Current 1A. DATA+ 2.3.8 General purpose I/O connector (JDIO1) Signal PIN PIN Signal SMB_CLK_9555 10 SMB_DATA_9555 Note: Max Current 1A. 22 EMX-H110KP User’s Manual...
  • Page 23: Atx Power Connector (Atxpwr1)

    User’s Manual 2.3.9 ATX Power connector (ATXPWR1) Signal Signal +3.3V +3.3V +3.3V -12V PSON# PG_ATX +V5SB_DP +12V 2.3.10 USB 2.0 connector 1 (JUSB1) Signal Signal USB_R_DP6 USB_R_DP5 USB_R_DN6 USB_R_DN5 EMX-H110KP User’s Manual 23...
  • Page 24: Battery Connector (Jbat1)

    EMX-H110KP User’s Manual 2.3.11 Battery connector (JBAT1) Signal RTC_VBAT_1 2.3.12 LPC connector (JLPC1) Signal PIN PIN Signal LPC_AD0 +3.3V LPC_AD1 BUF_PLT_RST# LPC_AD2 LPC_FRAME# LPC_AD3 LPC_CLK LPC_SERIRQ 24 EMX-H110KP User’s Manual...
  • Page 25: Lvds Connector (Jlvds1)

    LVDS_DATA2_P 16 15 LVDS_DATA3_P LVDS_DATA2_N 18 17 LVDS_DATA3_N Note: Mapping connector DF13-40DS-1.25C (1.0mm). LVDS_DATA4_P 22 21 LVDS_DATA5_P LVDS_DATA4_N 24 23 LVDS_DATA5_N LVDS_DATA6_P 28 27 LVDS_DATA7_P LVDS_DATA6_N 30 29 LVDS_DATA7_N LVDS_CLK1_P LVDS_CLK2_P LVDS_ CLK1_N LVDS_ CLK2_N +12V +12V EMX-H110KP User’s Manual 25...
  • Page 26: Front Audio Connector (Jaudio2)

    Front Audio connector (JAUDIO2) Signal PIN PIN Signal LINE2_JD LINE2_LIN MIC2_JD LINE2_RIN ACZ_DET#_R MIC2_RIN MIC2_LIN 2.3.14.1 Signal Description –Audio connector 2 (JAUDIO2) Signal Signal Description LINE2_JD AUDIO IN (LINE_RIN/LIN)sense pin MIC2_JD MIC IN (MIC_RIN/LIN) sense pin 26 EMX-H110KP User’s Manual...
  • Page 27: Spi Connector (Jspi1)

    User’s Manual 2.3.15 SPI connector (JSPI1) Signal PIN PIN Signal +3.3V SSPI_CS0#_R SSPI_SCLK_R SSPI_SO_R SSPI_SI_R SSPI_HOLD#0 2.3.16 Amplifier connector (JSPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- Note: Support 6W x 2 speakers. Mapping Connector PHR-4. EMX-H110KP User’s Manual 27...
  • Page 28: Front Panel Setting Connector (Jfp1)

    EMX-H110KP User’s Manual 2.3.17 Front panel setting connector (JFP1) Signal PIN PIN Signal +HD_LED +PWR_LED -HD_LED -PWE_LED +Reset +PWR_BNT -Reset -PWR_BNT 2.3.18 LAN1& LAN 2 active LED connector (JLANLED1) Signal PIN PIN Signal LAN2_ACT# LAN1_ACT# FRONT_LAN2_ACT FRONT_LAN1_ACT 28 EMX-H110KP User’s Manual...
  • Page 29: Cpu Fan Connector (Cpufan1)

    User’s Manual 2.3.19 CPU fan connector (CPUFAN1) Signal +12V CPUFANIN CPUFANOUT 2.3.20 Serial port 1 connector (COM1) Signal PIN PIN Signal NDCDA# NDSRA# NRXDA NRTSA# NTXDA NCTSA# NDTRA# NRIA# EMX-H110KP User’s Manual 29...
  • Page 30: System Fan Connector (Sysfan1)

    EMX-H110KP User’s Manual 2.3.21 System fan connector (SYSFAN1) Signal +12V SYSFANIN SYSFANOUT 2.3.22 ATX 12V power connector (ATX12V1) Signal Signal +12V +12V 30 EMX-H110KP User’s Manual...
  • Page 31: Gigabit Lan (Rj-45) Connector (Lan1/2)

    Linked Green connection Note: 1Gbps Blinking Data activity Orange This port allows Gigabit connection to a Local Area connection Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications. EMX-H110KP User’s Manual 31...
  • Page 32: Bios Setup

    EMX-H110KP User’s Manual 3.BIOS Setup 32 EMX-H110KP User’s Manual...
  • Page 33: Introduction

    If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP EMX-H110KP User’s Manual 33...
  • Page 34: Using Setup

    Note: Some of the navigation keys differ from one screen to another.  To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 34 EMX-H110KP User’s Manual...
  • Page 35: Getting Help

    BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. EMX-H110KP User’s Manual 35...
  • Page 36: Bios Setup

    <Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 36 EMX-H110KP User’s Manual...
  • Page 37: System Language

    Note: The BIOS setup screens shown in this chapter are for reference purposes only, and may not exactly match what you see on your screen. Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. EMX-H110KP User’s Manual 37...
  • Page 38: Advanced Menu

    This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 3.6.2.1 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. 38 EMX-H110KP User’s Manual...
  • Page 39: Cpu - Power Management Control

    CPU to go to C states when it’s not Enabled[Default] 100284789272tilized. Enable/Disable C1E. When enabled, CPU will Disabled, Enhanced C-states switch to minimum speed when all cores enter Enabled[Default] C-State. Disabled, C-State Auto Demotion Configure C-State Auto Demotion. EMX-H110KP User’s Manual 39...
  • Page 40: Pch-Fw Configuration

    Enabled 0: Disable; 1: Enable; <b>2: Auto</b> (Auto: Auto[Default] Enabled for Skylake; Disabled for Kabylake). 3.6.2.2 PCH-FW Configuration Item Options Description Disabled, When Disabled ME will be put into ME ME State Enabled[Default] Temporarily Disabled Mode. 40 EMX-H110KP User’s Manual...
  • Page 41: Firmware Update Configuration

    User’s Manual 3.6.2.2.1 Firmware Update Configuration Item Option Description Disabled[Default], ME FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled 3.6.2.3 Trusted Computing EMX-H110KP User’s Manual 41...
  • Page 42: Apci Settings

    Pwr-On After PWR-Fail Always On re-applied after a power failure (G3 state). Keep Last state Disabled[Default], 30 sec 40 sec 50 sec Watch Dog Select Watch Dog Timer (WDT) Mode. 1 min 2 min 10 min 30 min 42 EMX-H110KP User’s Manual...
  • Page 43: S5 Rtc Wake Settings

    Enable or disable System wake on alarm event. Select Disabled[Default], Fixed Time, system will wake on the hr::min::sec Wake system from S5 Fixed Time specified. Select Dynamic Time, System will wake on the Dynamic Time current time + Increase minute(s). EMX-H110KP User’s Manual 43...
  • Page 44 Wake up day of week Monday-Friday of month. Monday-Friday only. Monday-Saturday Monday-Saturday[Default] only. Select 0-23 For example enter 3 for 3am and 15 for Wake up hour 0-23 3pm. Wake up minute 0-59 0-59. Wake up second 0-59 0-59. 44 EMX-H110KP User’s Manual...
  • Page 45: Super Io Configuration

    + Increase minute(s). Wake up minute increase 1-5. 3.6.2.6 Super IO Configuration You can use this item to set up or change the Super IO configuration for serial ports. Please refer to 3.6.2.6.1~ 3.6.2.6.6 for more information. EMX-H110KP User’s Manual 45...
  • Page 46: Serial Port 1 Configuration

    Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). 3.6.2.6.1 Serial Port 1 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 46 EMX-H110KP User’s Manual...
  • Page 47: Serial Port 2 Configuration

    3.6.2.6.2 Serial Port 2 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], RS232[Default] UART 232 422 485 RS422 Set COM Port as RS232, RS422 or RS485 mode. RS485 3.6.2.6.3 Serial Port 3 Configuration EMX-H110KP User’s Manual 47...
  • Page 48: Serial Port 4 Configuration

    Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.6.4 Serial Port 4 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.6.5 Serial Port 5 Configuration 48 EMX-H110KP User’s Manual...
  • Page 49: Serial Port 6 Configuration

    User’s Manual Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.6.6 Serial Port 6 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.7 NCT6106D H/W Monitor EMX-H110KP User’s Manual 49...
  • Page 50: Smart Fan Configuration

    Smart Fan), SmartFan IV™ Mode. CPU Fan Manual Duty 0-255[Default] CPU Fan manual output duty: 0 to 255. Manual Smart Fan Mode Selection: Manual Mode (No SYSFAN1 Mode SmartFan IV[Default], Smart Fan), SmartFan IV™ Mode. 3.6.2.8 Serial Port Console Redirection 50 EMX-H110KP User’s Manual...
  • Page 51: Com1

    They can be used as an additional data bit. Stop bits indicate the end of a serial data 1[Default] packet. (A start bit indicates the beginning). Stop Bits The standard setting is 1 stop bit. Communication with slow devices may EMX-H110KP User’s Manual 51...
  • Page 52: Intel Txt Configuration

    Legacy console redirection is Always Enable[Default] disabled before booting to Legacy OS. Redirection After BIOS POST BootLoader Default value is Always Enable which means Legaacy console Redirection is enabled for Legacy OS. 3.6.2.9 Intel TXT Configuration 52 EMX-H110KP User’s Manual...
  • Page 53: Network Stack Configuration

    Enabled IPv6 HTTP boot support will not be available. PXE boot wait time Wait time to press ESC key to abort the PXE boot. Media detect count Number of times presence of media will be checked. EMX-H110KP User’s Manual 53...
  • Page 54: Csm Configuration

    Legacy Do not launch Controls the execution of UEFI and Legacy Storage UEFI Storage OpROM. Legacy[Default] Do not launch Determines OpROM execution policy for devices Other PCI devices UEFI other than Network, Storage, or Video. Legacy[Default] 54 EMX-H110KP User’s Manual...
  • Page 55 Legacy[Default] Do not launch Controls the execution of UEFI and Legacy Storage UEFI Storage OpROM. Legacy[Default] Do not launch Determines OpROM execution policy for devices Other PCI devices UEFI other than Network, Storage, or Video. Legacy[Default] EMX-H110KP User’s Manual 55...
  • Page 56: Usb Configuration

    Mass storage device emulation type. ‘AUTO’ Floppy enumerates devices according to their media format. Mass Storage Devices Forced FDD Optical drives are emulated as ‘CDROM’, drives with Hard Disk no media will be emulated according to a drive type. CD-ROM 56 EMX-H110KP User’s Manual...
  • Page 57: Chipset

    User’s Manual 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration EMX-H110KP User’s Manual 57...
  • Page 58: Graphics Configuration

    1024x768 18/1 1366x768 18/1 1024x600 18/1 1280x800 18/1 1920x1200 24/2 Set which panel resolution EDID reported by CH7511 EDID Panel Option 1920x1080 18/2 CH7511. 1280x1024 24/2 1440x900 18/2 1600x1200 24/2 1366x768 24/1 1920x1080 24/2 1680x1050 24/2 58 EMX-H110KP User’s Manual...
  • Page 59: Dmi/Opi Configuration

    User’s Manual 3.6.3.1.2 DMI/OPI Configuration 3.6.3.1.3 PEG Port Configuration Item Option Description Disabled Enable Root Port Enabled Enable or Disable the Root Port. Auto[Default] Auto[Default] Max Link Speed Configure PEG 0:1:0 Max Speed. Gen1 EMX-H110KP User’s Manual 59...
  • Page 60 Program PCIe ASPM after OpROM after OpROM. Disabled: PCIe ASPM will be Enabled programmed before OpROM. 3.6.3.1.3.1 PEG Port Feature Configuration Item Option Description Disabled[Default] Detect Non-Compliance PCI Express Device Detect Non-Compliance Device Enabled, in PEG. 60 EMX-H110KP User’s Manual...
  • Page 61: Memory Configuration

    User’s Manual 3.6.3.1.4 Memory Configuration 3.6.3.2 PCH-IO Configuration Item Option Description Disabled Enable or disable OnBoard PCH LAN PHY LAN PHY Controller Enabled[Default] Controller. EMX-H110KP User’s Manual 61...
  • Page 62: Pci Express Configuration

    EMX-H110KP User’s Manual 3.6.3.2.1 PCI Express Configuration 3.6.3.2.1.1 Intel I211 LAN Chip (PCI-E Port 8) Item Option Description Disabled Intel I211 LAN Chip (PCI-E Port 8) Enable or Disable the Root Port. Enabled[Default], 62 EMX-H110KP User’s Manual...
  • Page 63 PCIe Speed Gen1 Select PCIe speed. Gen2 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. EMX-H110KP User’s Manual 63...
  • Page 64 PCIe Speed Gen1 Select PCIe speed. Gen2 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. 64 EMX-H110KP User’s Manual...
  • Page 65: Hd Audio Configuration

    Description Control Detection of the HD-Audio device. Disable = Disabled HAD will be unconditionally disabled Enabled = HAD will HD Audio Enabled be unconditionally enabled Auto = HAD will be enabled if Auto[Default], present, disabled otherwise. EMX-H110KP User’s Manual 65...
  • Page 66: Sata And Rst Configuration

    EMX-H110KP User’s Manual 3.6.3.2.3 SATA And RST Configuration Item Option Description Enabled[Default], SATA Controller(s) Enable/Disable SATA Device. Disabled AHCI Determines how SATA controller(s) SATA Mode Selection RAID[Default] operate. 66 EMX-H110KP User’s Manual...
  • Page 67: Security

    Hard Disk Drive[Default], Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. 3.6.4 Security  Administrator Password Set setup Administrator Password  User Password Set User Password EMX-H110KP User’s Manual 67...
  • Page 68: Secure Boot Menu

    Attempt Secure Boot User mode with enrolled Platform Key(PK) 2.CSM Enabled function is disabled. Secure Boot mode selector. ‘Custom’ Mode enables Standard Secure Boot Mode users to change Image Execution policy and manage Custom[Default] Secure Boot Keys. 68 EMX-H110KP User’s Manual...
  • Page 69: Key Management

    User’s Manual 3.6.4.1.1 Key Management Item Option Description Enabled, Allow to provision factory default Secure Provision Factory Default Disabled[Default] Boot keys when System is in Setup Mode. 3.6.5 Boot EMX-H110KP User’s Manual 69...
  • Page 70: Save And Exit

    Any changes made to BIOS settings during this session of the BIOS setup program are discarded. The setup program then exits and reboots the controller. 3.6.6.3 Restore Defaults This option restores all BIOS settings to the factory default. This option is useful if the 70 EMX-H110KP User’s Manual...
  • Page 71: Launch Efi Shell From Filesystem Device

    User’s Manual controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. EMX-H110KP User’s Manual 71...
  • Page 72: Drivers Installation

    EMX-H110KP User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 72 EMX-H110KP User’s Manual...
  • Page 73: Install Chipset Driver

    Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Complete setup. Step 2. Click Accept. EMX-H110KP User’s Manual 73...
  • Page 74: Install Vga Driver

    Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Step 5. Click Finish to complete setup. Click Yes to accept license agreement. 74 EMX-H110KP User’s Manual...
  • Page 75: Install Me Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next Step 4. Click Finish to complete the setup Step 1. Click Next to continue setup. Step 2. Click Next. EMX-H110KP User’s Manual 75...
  • Page 76: Install Audio Driver (For Realtek Alc892 Hd Audio)

    Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step1. Click Next to Install. Step 2. Select Finish to complete Installation. 76 EMX-H110KP User’s Manual...
  • Page 77: Install Lan Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Step 4. Click Next. Software. Step 2. Click Next. Step 5. Click Install. EMX-H110KP User’s Manual 77...
  • Page 78 EMX-H110KP User’s Manual Step 6. Click Next. Step 7. Click Finish to complete setup. 78 EMX-H110KP User’s Manual...
  • Page 79: Install Rst Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Next. EMX-H110KP User’s Manual 79...
  • Page 80 EMX-H110KP User’s Manual Step 6. Click Finish to complete setup. 80 EMX-H110KP User’s Manual...
  • Page 81: Mechanical Drawing

    User’s Manual 5. Mechanical Drawing EMX-H110KP User’s Manual 81...
  • Page 82 EMX-H110KP User’s Manual Unit: mm 82 EMX-H110KP User’s Manual...
  • Page 83 User’s Manual Unit: mm EMX-H110KP User’s Manual 83...
