Related Manuals for Avalue Technology EMX-H310C
Summary of Contents for Avalue Technology EMX-H310C

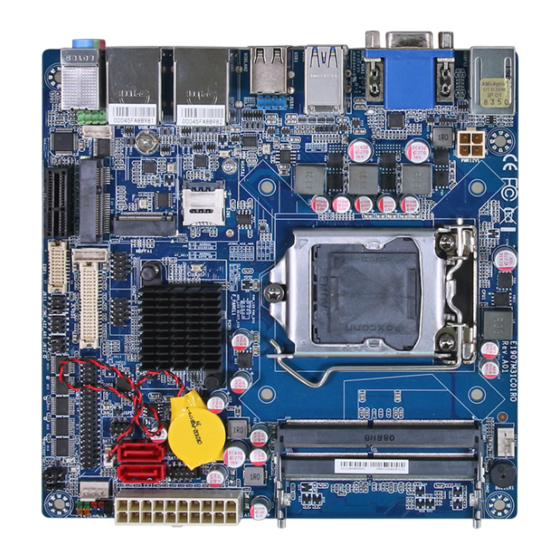

- Page 1 EMX-H310C Intel® 8/9th Gen. Core™ i7/i5/i3/Pentium® /Celeron® /Processor Mini ITX Motherboard With Intel® H310 Chipset, 2 LAN User’s Manual Ed – 15 November 2021 Part No. E2047M31C00R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
- Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 EMX-H310C User’s Manual...
-
Page 5: Table Of Contents
2.3.19 System fan connector (SFAN1) ..................... 29 2.3.20 USB connector (JUSB1) ........................ 30 3.BIOS Setup ........................31 Introduction ......................32 Starting Setup ......................32 Using Setup ......................33 Getting Help ......................34 In Case of Problems ....................34 EMX-H310C User’s Manual... - Page 6 3.6.3.2.1.3 RTL8111H LAN2 (PCI-E Port 7).................... 55 3.6.3.2.1.4 PCIEX1 (PCI-E Port 8) ......................56 3.6.3.2.2 SATA And RST Configuration ....................57 3.6.3.3 Board Configuration ....................... 58 3.6.4 Security............................59 3.6.4.1 Secure Boot ..........................59 3.6.4.1.1 Key Management........................60 6 EMX-H310C User’s Manual...
- Page 7 Install Chipset Driver ....................65 Install VGA Driver ....................66 Install Serial IO Driver ..................... 67 Install ME Driver ...................... 68 Install Audio Driver ....................69 Install LAN Driver ....................70 Install RST Driver ....................71 5. Mechanical Drawing ....................73 EMX-H310C User’s Manual...
-
Page 8: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EMX-H310C Motherboard 2 x SATA Cable 1 x I/O Shield ... -
Page 9: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment November 2021 Avalue Initial Release EMX-H310C User’s Manual... -
Page 10: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up EMX-H310C or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 11: System Specifications
1 x 2 x 3 pin, pitch 2.00mm connector for COM 2 support RS232 with Pin 9,+5V/+12V/RI by jumper (location : JC2) 1 x 2 x 20 pin, pitch 2.00mm connector for COM 1~4 support RS-232 connector EMX-H310C User’s Manual 11... - Page 12 2 x Realtek RTL8111H Gigabit Ethernet LAN Spec. 10/100/1000 Base-Tx GbE compatible Mechanical & Environmental Specification Power +12V / +5V / 5VSB /+3.3V / -12V Requirement ACPI Single power ATX Support S0, S3, S4, S5 Power Mode AT/ATX mode 12 EMX-H310C User’s Manual...
- Page 13 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis ISTA 2A, IEC-60068-2-32 Test : Ed, Test Ea, 1 Corner, 3 Edges, 6 Faces Drop Test OS Information Win10 64bit. Linux Note: Specifications are subject to change without notice. EMX-H310C User’s Manual 13...
-
Page 14: Architecture Overview-Block Diagram
EMX-H310C User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of EMX-H310C. 14 EMX-H310C User’s Manual... -
Page 15: Hardware Configuration
User’s Manual 2. Hardware Configuration EMX-H310C User’s Manual 15... -
Page 16: Product Overview
EMX-H310C User’s Manual 2.1 Product Overview 16 EMX-H310C User’s Manual... -
Page 17: Jumper And Connector List
(with smart fan function supported) CPU fan connector 4 x 1 wafer, pitch 2.54mm CFAN1 Miscellaneous setting connector 4 x 2 header, pitch 2.00mm JSPI1 COM1/2 Serial Port1/2 connector 5 x 2 header, pitch 2.00 mm EMX-H310C User’s Manual 17... - Page 18 Serial ATA connector SODIMMA1 260-pin DIMM slot 1 SODIMMB1 260-pin DIMM slot 2 PCIEX1_1 PCI-e x16 slot CPU connector AUDIO1 connector AUDIO1 USB connector 1/2 USB1/2 DP connector USBPS USBPS1 USB+PS2 connector USBLAN1/2 USB+LAN connector 1/2 18 EMX-H310C User’s Manual...
-
Page 19: Setting Jumpers & Connectors
User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Serial port 1 pin9 signal select (JRI1) Ring* +12V * Default 2.3.2 Serial port 2 pin9 signal select (JRI2) Ring* +12V * Default EMX-H310C User’s Manual 19... - Page 20 EMX-H310C User’s Manual 2.3.3 Clear CMOS (R_COMS1) Protect* Clear CMOS * Default 2.3.4 BIOS ME function configuration (JME1) Enable ME * Disable ME * Default 20 EMX-H310C User’s Manual...
-
Page 21: At/Atx Power Mode Select (At_Sel1)
User’s Manual 2.3.5 AT/ATX Power Mode Select (AT_SEL1) ATX* * Default 2.3.6 Power connector (PWR12V1) Signal PIN PIN Signal 12VIN 12VIN EMX-H310C User’s Manual 21... -
Page 22: Miscellaneous Setting Connector (Jspi1)
EMX-H310C User’s Manual 2.3.7 Miscellaneous setting connector (JSPI1) Signal PIN PIN Signal V_3P3_EPW SPI_CS0_N SPI_CLK SPI_MISO SPI_MOSI SPI_HD 2.3.8 Speaker connector (SPEAKER1) Signal AMP_OUT_RP AMP_OUT_RN AMP_OUT_LN AMP_OUT_LP 22 EMX-H310C User’s Manual... -
Page 23: Lcd Inverter Connector (Jbkl1)
User’s Manual 2.3.9 LCD Inverter connector (JBKL1) Signal VCC12 LVDS_BKLEN LVDS_BKLTADJ VCC5 2.3.10 CPU fan connector (CFAN1) Signal VCC12 FAN_CTL1 FAN_TAC1 EMX-H310C User’s Manual 23... -
Page 24: Atx Power Connector (Atx1)
Signal PIN PIN Signal +3.3V +3.3V -12V +3.3V PSCN +5VSB +12V 2.3.12 eDP-Panel connector (EDP 1) Signal PIN PIN Signal VCC1 VCC2 TXP2 TXN2 GND6 GND5 AUXP TXP1 AUXN TXN1 GND4 GND3 TXP0 TXP3 TXN0 TXN3 24 EMX-H310C User’s Manual... -
Page 25: Serial Port Connector (Com1)
User’s Manual 2.3.13 Serial port connector (COM1) Signal PIN PIN Signal NRI1 NCTS1 NRTS1 NDSR1 NDTR1 NSOUT1 NSIN1 NDCD1 2.3.14 Serial port connector (COM2) Signal PIN PIN Signal NRI2 NCTS2 NRTS2 NDSR2 NDTR2 NSOUT2 NSIN2 NDCD2 EMX-H310C User’s Manual 25... -
Page 26: Serial Port 3~6 Connector (Com3_6)
NSOUT3 NDTR3 NDSR3 NRTS3 NCTS3 NRI3 NDCD4 NSIN4 NSOUT4 NDTR4 NDSR4 NRTS4 NCTS4 NRI4 NDCD5 NSIN5 NSOUT5 NDTR5 NDSR5 NRTS5 NCT5 NRI5 NDCD6 NSIN6 NSOUT6 NDTR6 NDSR6 NRTS6 NCTS6 NRI6 2.3.16 Battery connector (BAT1) Signal +3.3V 26 EMX-H310C User’s Manual... -
Page 27: Lvds Connector (Jlvds1)
GND11 GND12 CLK2_N CLK1_N CLK2_P CLK1_P GND9 GND10 LVDS7N LVDS6N LVDS7P LVDS6P GND7 GND8 LVDS5N LVDS4N LVDS5P LVDS4P GND5 GND6 LVDS3N LVDS2N LVDS3P LVDS2P GND3 GND4 LVDS1N LVDS0N LVDS1P LVDS0P GND1 GND2 VCC3_2 VCC5_2 VCC3_1 VCC5_1 EMX-H310C User’s Manual 27... -
Page 28: Front Audio Connector (F_Audio1)
EMX-H310C User’s Manual 2.3.18 Front Audio connector (F_AUDIO1) Signal PIN PIN Signal MIC2_L MIC2_R LINE2_R MIC2-JD LINE2_L LINE2-JD 2.3.19 Front panel setting connector (F_PANEL) Signal PIN PIN Signal HDLED+ POWER_LED+ SATA_ACT# POWER_LED- BT_RST# PBTNJ_SIO 28 EMX-H310C User’s Manual... -
Page 29: General Purpose I/O Connector (Gpio1)
User’s Manual 2.3.20 General purpose I/O connector (GPIO1) Signal PIN PIN Signal GPP_K6 USB_OC3_R_N GPP_K7 GPP_K14 GPP_K10 USB_OC3_R_N USB_OC3_R_N USB_OC3_R_N 2.3.21 System fan connector (SFAN1) Signal FAN_CTL2 FAN_TAC2 VCC12 EMX-H310C User’s Manual 29... -
Page 30: Usb Connector (Jusb1)
EMX-H310C User’s Manual 2.3.22 USB connector (JUSB1) Signal PIN PIN Signal POWER_JUSB6 POWER_JUSB6 USB_TN2 USB_TN4 USB_TP2 USB_TP4 30 EMX-H310C User’s Manual... -
Page 31: Bios Setup
User’s Manual 3.BIOS Setup EMX-H310C User’s Manual 31... -
Page 32: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 32 EMX-H310C User’s Manual... -
Page 33: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. EMX-H310C User’s Manual 33... -
Page 34: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 34 EMX-H310C User’s Manual... -
Page 35: Bios Setup
Use the system time option to set the system time. Manually enter the hours, minutes and seconds. Note: The BIOS setup screens shown in this chapter are for reference purposes only, and may not exactly match what you see on your screen. EMX-H310C User’s Manual 35... -
Page 36: Advanced Menu
This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 3.6.2.1 CPU Configuration Item Options Description Disabled[Default], CPU Flex Ratio Override Enable/Disable CPU Flex Ratio Programming Enabled Intel (VMX) Virtualization Disabled When enabled, a VMM can utilize the 36 EMX-H310C User’s Manual... -
Page 37: Cpu - Power Management Control
User’s Manual Technology Enabled[Default], additional hardware capabilities provided by Vanderpool Technology. All[Default], Number of cores to enable in each processor Active Processor Cores package. 3.6.2.2 CPU - Power Management Control EMX-H310C User’s Manual 37... -
Page 38: Cpu - Power Management Control
Technology support. Enabling will expose the Intel(R) Speed Shift Technology Enabled[Default], CPPC v2 interface to allow for hardware controlled P-states. Enable/Disable CPU Power Management. Disabled[Default], C states Allows CPU to go to C states when it’s not Enabled 100% utilized 38 EMX-H310C User’s Manual... -
Page 39: Pch-Fw Configuration
User’s Manual 3.6.2.3 PCH-FW Configuration 3.6.2.3.1 Firmware Update Configuration Item Option Description Disabled[Default], Me FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled EMX-H310C User’s Manual 39... -
Page 40: Acpi Settings
SUSPEDN button S3 (Suspend to RAM)[Default] is pressed. Enable or disable System wake on alarm Disabled[Default], Wake system from S5 event. When enabled, System will wake on the Enabled hr::min::sec specified 40 EMX-H310C User’s Manual... -
Page 41: Super Io Configuration
Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). EMX-H310C User’s Manual 41... -
Page 42: Serial Port 1 Configuration
Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.2 Serial Port 2 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], RS232[Default], UART 232 422 485 RS422 Set COM Port as RS232, RS422 or RS485 mode. RS485 42 EMX-H310C User’s Manual... -
Page 43: Serial Port 3 Configuration
3.6.2.5.3 Serial Port 3 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.4 Serial Port 4 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], EMX-H310C User’s Manual 43... -
Page 44: Serial Port 5 Configuration
3.6.2.5.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.6 Serial Port 6 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 44 EMX-H310C User’s Manual... -
Page 45: Nct6106D H/W Monitor
Fan start temperature than this value Fan full speed Fan will full speed when temperature higher than temperature this value Fan start PWM Fan will stat with this PWM value Pwm slope setting PWM SLOPE Selection,0~16 EMX-H310C User’s Manual 45... -
Page 46: Usb Configuration
Mass storage device emulation type. 'AUTO' Floppy enumerates devices according to their media JetF lashTranscend 8GB 1100 Forced FDD format. Optical drives are emulated as 'CDROM' Hard Disk drives with no media will be emulated according CD-ROM to a drive type. 46 EMX-H310C User’s Manual... -
Page 47: Network Stack Configuration
3.6.2.8 Network Stack Configuration Item Options Description Disabled[Default], Network Stack Enable/Disable UEFI Network Stack. Enabled quad Note: Motherboard designed with Gigabit LAN consumes longer startup time when Network Stack setting at “Enable”, this is a normal phenomenon. EMX-H310C User’s Manual 47... -
Page 48: Nvme Configuration
EMX-H310C User’s Manual 3.6.2.9 NVMe Configuration 3.6.2.10 Realtek PCIe GBE Family Controller (MAC:00:04:5F:A9:2B:FC) 48 EMX-H310C User’s Manual... -
Page 49: Realtek Pcie Gbe Family Controller (Mac:00:04:5F:a9:2B:fd)
User’s Manual 3.6.2.11 Realtek PCIe GBE Family Controller (MAC:00:04:5F:A9:2B:FD) 3.6.3 Chipset EMX-H310C User’s Manual 49... -
Page 50: North Bridge Configuration
North Bridge Configuration Item Option Description Disabled VT-d VT-d capability. Enabled[Default] 3.6.3.1.1 Memory Configuration Item Option Description Dynamic[Default] Maximum Value of TOLUD. Dynamic Max TOLUD assignment would adjust TOLUD 1.25 GB automatically based on largest MMIO length 50 EMX-H310C User’s Manual... -
Page 51: Graphics Configuration
2 GB 2.25 GB 2.5 GB 2.75 GB 3 GB 3.6.3.1.2 Graphics Configuration Item Option Description Auto[Default] Select which of IGFX/PEG Graphics Primary Display IGFX device should be Primary Display. GTT Size Select the GTT Size 8MB[Default] EMX-H310C User’s Manual 51... -
Page 52: South Bridge Configuration
EMX-H310C User’s Manual 3.6.3.2 South Bridge Configuration 3.6.3.2.1 PCI Express Configuration 52 EMX-H310C User’s Manual... -
Page 53: Pci Express Root Port 5
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. EMX-H310C User’s Manual 53... -
Page 54: Rtl8111H Lan1 (Pci-E Port 6)
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. 54 EMX-H310C User’s Manual... -
Page 55: Rtl8111H Lan2 (Pci-E Port 7)
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. EMX-H310C User’s Manual 55... -
Page 56: Pciex1 (Pci-E Port 8)
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. 56 EMX-H310C User’s Manual... -
Page 57: Sata And Rst Configuration
Test Mode Enable/Disable (Loop Back). Disabled[Default], Disabled SATA Port Enable or Disable SATA Port Enabled[Default], Hard Disk Drive[Default], Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. EMX-H310C User’s Manual 57... -
Page 58: Board Configuration
EMX-H310C User’s Manual 3.6.3.3 Board Configuration Item Option Description Disabled[Default], 30 sec 40 sec 50 sec Watch Dog Timer Select WatchDog. 1 min 2 min 10 min 30 min 58 EMX-H310C User’s Manual... -
Page 59: Security
User’s Manual 3.6.4 Security Item Description Administrator Password Set Administrator Password User Password Set User Password 3.6.4.1 Secure Boot EMX-H310C User’s Manual 59... -
Page 60: Key Management
The mode change requires platform reset Secure Boot mode options: Standard or Custom. In Standard Custom mode, Secure Boot Policy variables can be Secure Boot Mode Custom[Default], configured by a physically present user without full authentication 3.6.4.1.1 Key Management 60 EMX-H310C User’s Manual... -
Page 61: Boot
Setup Prompt Timeout activation key. 65535(0xFFFF) means indefinite waiting. On[Default] Bootup NumLock State Select the keyboard NumLock state. Disabled[Default] Quiet Boot Enable or disable Quiet Boot option. Enabled Boot Option #1 Sets the system boot order EMX-H310C User’s Manual 61... -
Page 62: Save & Exit
Reset the system after saving the changes. 3.6.5.2 Discard Changes and Reset Any changes made to BIOS settings during this session of the BIOS setup program are discarded. The setup program then exits and reboots the controller. 62 EMX-H310C User’s Manual... -
Page 63: Restore Defaults
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.5.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. EMX-H310C User’s Manual 63... -
Page 64: Drivers Installation
EMX-H310C User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 64 EMX-H310C User’s Manual... -
Page 65: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Complete setup. Step 2. Click Accept. EMX-H310C User’s Manual 65... -
Page 66: Install Vga Driver
Continue to go Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Yes. Step 5. Click Finish to complete setup. 66 EMX-H310C User’s Manual... -
Page 67: Install Serial Io Driver
Continue to go on. Step 3. Click Next. Step 4. Click Next. Step 1. Click Next to continue setup. Step 5. Click Finish to complete the Step 2. Click Next. setup. EMX-H310C User’s Manual 67... -
Page 68: Install Me Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go Step 3. Click Next Step 4. Click Finish to complete the Step 1. Click Next to continue setup. setup Step 2. Click Next. 68 EMX-H310C User’s Manual... -
Page 69: Install Audio Driver
All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step1. Click Next to Install. Step 2. Select Finish to complete Installation. EMX-H310C User’s Manual 69... -
Page 70: Install Lan Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 2. Click Install. Step 3. Select Finish to complete Step 1. Click Next to continue installation. Installation. 70 EMX-H310C User’s Manual... -
Page 71: Install Rst Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Finish to complete setup. EMX-H310C User’s Manual 71... - Page 72 EMX-H310C User’s Manual Step 6. Click Finish to complete setup. 72 EMX-H310C User’s Manual...
-
Page 73: Mechanical Drawing
User’s Manual 5. Mechanical Drawing EMX-H310C User’s Manual 73... - Page 74 EMX-H310C User’s Manual Unit: mm Unit: mm 74 EMX-H310C User’s Manual...
