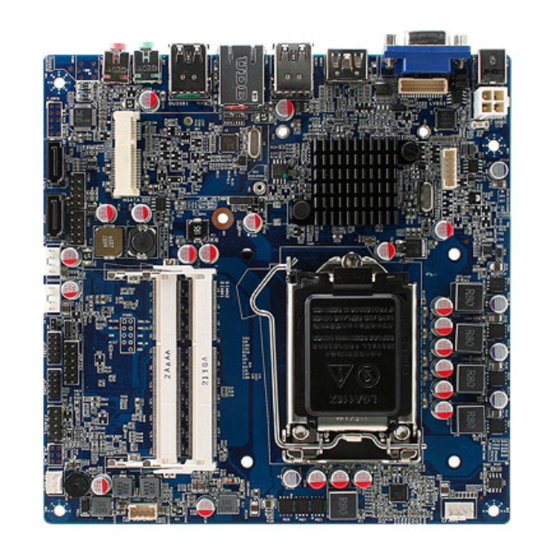

- Page 1 EMX-H61B Intel® Core™/ Pentium®/ Celeron® Mini ITX Motherboard with Intel® H61 Express Chipset User’s Manual Ed – 14 August 2015 Part No. E2047H61B01R...
-
Page 2: Table Of Contents
EMX-H61B User’s Manual Content Getting Started ....................4 Safety Precautions ................... 4 Packing List ..................... 4 Document Amendment History..............5 Manual Objectives..................6 Specifications ..................7 Architecture Overview—Block Diagram ............. 9 Hardware Configuration ..................10 Product Overview................... 11 Installation Procedure ................13 Jumper and Connector List .............. - Page 3 EMX-H61B User’s Manual 3.6.1 Main Menu ..................29 3.6.1.1 System Language..............29 3.6.1.2 System Date ................29 3.6.1.3 System Time ................29 3.6.2 Advanced BIOS settings ..............30 3.6.2.1 CPU Configuration..............30 3.6.2.2 Onboard Device Configuration........... 31 3.6.2.3 USB Legacy Features ............... 32 3.6.2.4 Inter®...
-
Page 4: Getting Started
EMX-H61B User’s Manual Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 5: Document Amendment History
EMX-H61B User’s Manual 1.3 Document Amendment History Revision Date Comment May 2013 Avalue Initial Release August 2015 Avalue Update Block Diagram EMX-H61B User’s Manual 5... -
Page 6: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up EMX-H61B series or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 7: Specifications
EMX-H61B User’s Manual 1.5 Specifications System Intel® LGA1155 Socket Supports 2nd /3rd Generation Core™ i7/ i5/ i3, Pentium® and Celeron® Processors (Max. TDP at 65W) BIOS AMI uEFI BIOS, 64Mbit SPI Flash ROM System Chipset Intel® H61 Chipset ... - Page 8 EMX-H61B User’s Manual 1 x 2 x 2 pin ATX power connector for DC +12~19V input 1 x 2 x 15 pin , pitch 1.00mm connector for LVDS 1 x 6 pin , pitch 2.00mm connector for Inverter ...
-
Page 9: Architecture Overview-Block Diagram
EMX-H61B User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of EMX-H61B. EMX-H61B User’s Manual 9... -
Page 10: Hardware Configuration
EMX-H61B User’s Manual 2. Hardware Configuration 10 EMX-H61B User’s Manual... -
Page 11: Product Overview
EMX-H61B User’s Manual 2.1 Product Overview EMX-H61B User’s Manual 11... - Page 12 EMX-H61B User’s Manual 12 EMX-H61B User’s Manual...
-
Page 13: Installation Procedure
EMX-H61B User’s Manual 2.2 Installation Procedure This chapter explains you the instructions of how to setup your system. 1. Turn off the power supply. 2. Insert the DIMM module (be careful with the orientation). 3. Insert all external cables for hard disk, floppy, keyboard, mouse, USB etc. except for flat panel. -
Page 14: Jumper And Connector List
EMX-H61B User’s Manual 2.3 Jumper and Connector List You can configure your board to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. - Page 15 EMX-H61B User’s Manual DUSB1 USB connector Stack USB 2.00connector LAN1 RJ-45 Ethernet connector 1 RJ45 w/ indicator connector DCIN DC power-in connector 2 x 2 wafer , pitch 4.20 mm JDCIN DC power-in connector FPANEL Front Panel Switches 2 x 5 header, pitch 2.54 mm LVDS1 LVDS connector 2 x15 wafer, pitch 1.0 mm...
-
Page 16: Setting Jumpers & Connectors
EMX-H61B User’s Manual 2.4 Setting Jumpers & Connectors 2.4.1 Clear CMOS (JBAT) Normal* Clear CMOS Define * Default Normal Clear CMOS 2.4.2 ME update (JME) Refresh the ME* Can’t refresh the ME * Default 16 EMX-H61B User’s Manual... -
Page 17: Ddr3/Ddr3L Using (Jdimm)
EMX-H61B User’s Manual 2.4.3 DDR3/DDR3L using (JDIMM) DDR3* DDR3L Define Open DDR3L * Default Close DDR3 2.4.4 LVDS connector for 18/24 bit switches (JLVDS) 8 BIT JEIDE* 8BIT VESA SINGLE LINK LVDS Define 8BIT JEIDE 8BIT VESA * Default 6BIT NC=DUANL LINK LVDS CLOS=SINGLE LINK LVDS EMX-H61B User’s Manual 17... -
Page 18: Lvds Power Connector (Jlvds_P)
EMX-H61B User’s Manual 2.4.5 LVDS Power connector (JLVDS_P) +5V* +3.3V Define Max current +3.3V Note: This jumper is working for LVDS1 VDD * Default power. 2.4.6 LVDS connector (LVDS1) Signal PIN PIN Signal DTX0+ DTX1+ DTX0- DTX1- DTX2+ DCLK+ DTX2- DCLK- DTX3+ DTX3-... -
Page 19: General Purpose I/O (Jgpio1)
EMX-H61B User’s Manual 2.4.7 General Purpose I/O (JGPIO1) Signal PIN PIN Signal 2.4.8 Serial port 1/2 connector (JCOM1/2) Signal PIN PIN Signal JCOM1 JCOM2 Note: COM 1/2 Pin9 without power. EMX-H61B User’s Manual 19... -
Page 20: System Fan Connector (Sfan1)
EMX-H61B User’s Manual 2.4.9 System Fan connector (SFAN1) Signal +12V Ground 2.4.10 CPU Fan connector (CFAN1) Signal Ground +12V Control 20 EMX-H61B User’s Manual... -
Page 21: Usb Connector 1/2 - Usb2.0 (Fusb1/2)
EMX-H61B User’s Manual 2.4.11 USB Connector 1/2 - USB2.0 (FUSB1/2) FUSB2 FUSB1 Signal PIN PIN Signal DATA+ DATA+ DATA- DATA- 2.4.12 Front Panel Switches (FPANEL) Signal PIN PIN Signal HDLED+ PWRLED+ HDLED- PWRLED- RESET PWRBTN# EMX-H61B User’s Manual 21... -
Page 22: Dc Power-In Connector (Jdcin)
EMX-H61B User’s Manual 2.4.13 DC power-in connector (JDCIN) Signal PIN PIN Signal +12~19V +12~19V Note: Suggest bundle with 19V power adapter. 2.4.14 Inverter connector (Inverter) Signal Max current +12V +12V BLK_ON Brightness Note: Mapping connector PHR6. 22 EMX-H61B User’s Manual... -
Page 23: Sata Power Connector 1/2 (Jsata_P1/2)
EMX-H61B User’s Manual 2.4.15 SATA Power connector 1/2 (JSATA_P1/2) JSATA_P1 Signal Max current JSATA_P2 +12V 2.4.16 Speaker Headers (JSPEAK) Signal INTSPL+ INTSPL- INTSPR+ INTSPR- Support 5W 8ΩX 2 speaker. Note: Mapping connector PHR-4. EMX-H61B User’s Manual 23... -
Page 24: Dc Power-In Connector (Dcin)
EMX-H61B User’s Manual 2.4.17 DC power-in connector (DCIN) 24 EMX-H61B User’s Manual... -
Page 25: Bios Setup
EMX-H61B User’s Manual 3.BIOS Setup EMX-H61B User’s Manual 25... -
Page 26: Introduction
EMX-H61B User’s Manual 3.1 Introduction The BIOS setup program allows users to modify the basic system configuration. In this following chapter will describe how to access the BIOS setup program and the configuration options that may be changed. 3.2 Starting Setup The BIOS is immediately activated when you first power on the computer. -
Page 27: Using Setup
EMX-H61B User’s Manual Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard. -
Page 28: Getting Help
EMX-H61B User’s Manual Getting Help Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again. In Case of Problems If, after making and saving system changes with Setup, you discover that your computer no longer is able to boot, the BIOS supports an override to the NVRAM settings which resets... -
Page 29: Bios Setup
EMX-H61B User’s Manual BIOS setup Once you enter the BIOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. -
Page 30: Advanced Bios Settings
EMX-H61B User’s Manual 3.6.2 Advanced BIOS settings This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 3.6.2.1 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. -
Page 31: Onboard Device Configuration
EMX-H61B User’s Manual 3.6.2.2 Onboard Device Configuration Item Options Description Disabled Onboard LAN1 Control Enable or disable Onboard LAN1. Enabled[Default] Disabled Mini PCIE Control Enable or disable Mini PCIE. Enabled[Default] Disabled[Default] Controls the execution of UEFI and Legacy Launch PXE OpROM policy Enabled PXE OpROM. -
Page 32: Usb Legacy Features
EMX-H61B User’s Manual 3.6.2.3 USB Legacy Features Item Options Description Enables Legacy USB support, AUTO option Enabled[Default] disables legacy support if no USB devices are Legacy USB Support Disabled connected. DISABLE option will keep USB Auto devices available only for EFI applications. This is a workaround for OSes without EHCI Disabled[Default] EHCI Hand-off... -
Page 33: Inter® Rapid Start Technology
EMX-H61B User’s Manual 3.6.2.4 Inter® Rapid Start Technology 3.6.2.5 Advanced Power Management Item Options Description Suspend Disabled Select ACPI sleep state the system will enter ACPI Sleep State S1 only(CPU Stop Clock)[Default] when the SUSPEND button is pressed. S3 only(Suspend to RAM) EMX-H61B User’s Manual 33... -
Page 34: Super Io Configuration
EMX-H61B User’s Manual Disabled[Default] Enable system to wake from S5 using LAN Wake on LAN Enabled wake event. Power Off[Default] Specify what state to go to when power is Power-Loss State Power On re-applied after a power failure. Keep Last State Enable or disable System wake on alarm Disabled[Default] Poweron By RTC... - Page 35 EMX-H61B User’s Manual 3.6.2.6.1 Serial Port 0 Configuration Item Option Description Disabled Enable or Disable Serial Port Serial Port Enabled[Default] (COM). Auto[Default] IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; Select an optimal setting for Change Settings IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; Super IO device. IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h;...
-
Page 36: Hw Monitor
EMX-H61B User’s Manual Item Option Description Disabled Enable or Disable Serial Port Serial Port Enabled[Default] (COM). Auto[Default] IO=2F8h; IRQ=3; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; Select an optimal setting for Change Settings IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; Super IO device. IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; 3.6.2.7 HW Monitor The H/W Monitor shows the operating temperature, fan speeds and system voltages. -
Page 37: Watchdog Configuration
EMX-H61B User’s Manual 3.6.2.8 Watchdog Configuration Item Options Description Second[Default] Watchdog Count Mode Watchdog Count Mode Selection. Minute Watchdog TimeOut Value 0 to 255 Set Watchdog time, from 0 to 255. 3.6.2.9 Serial Port Console Redirection EMX-H61B User’s Manual 37... - Page 38 EMX-H61B User’s Manual Item Options Description Disabled Console Redirection Console Redirection Enable or Disable. Enabled[Default] The settings specify how the host computer and the remote computer Console Redirection Settings (which the user is using) will exchange data. Both computers should have the same or compatible settings.
-
Page 39: Chipset
EMX-H61B User’s Manual 3.6.3 Chipset Item Description SB Configuration PCH Parameters. NB Configuration NB Parameters. 3.6.3.1 SB Configuration EMX-H61B User’s Manual 39... -
Page 40: Nb Configuration
EMX-H61B User’s Manual Item Options Description IDE[Default] SATA Mode Selection Determines how SATA controller(s) operate. AHCI IDE Legacy / Native Mode Native[Default] IDE Legacy / Native Mode Selection. Legacy Selection 3.6.3.2 NB Configuration Item Options Description 32M/64M[Default]/96M/128M/ Select DVMT 5.0 Pre-Allocated (Fixed) 160M/192M/224M/256M/288M DVMT Pre-Allocated Graphics Memory size used by the Internal... -
Page 41: Boot Settings
EMX-H61B User’s Manual 1400x1050 24/2 1600x1200 24/2 1366x768 24/1 1680x1050 24/2 1920x1200 24/2 1440x900 18/2 1600x900 24/2 1024x768 24/1 1280x800 18/1 1920x1080 24/2 2048x1536 24/2 PWM Inverted[Default] Backlight Control Back Light Control Setting. PWM Normal 3.6.4 Boot settings Item Option Description Number of seconds to wait for 1~65535... -
Page 42: Security
EMX-H61B User’s Manual 3.6.5 Security Use the Security menu to set system and user password. 3.6.5.1 Administrator Password This setting specifies a password that must be entered to access the BIOS Setup Utility. If only the Administrator's password is set, then this only limits access to the BIOS setup program and is only asked for when entering the BIOS setup program. -
Page 43: Save & Exit
EMX-H61B User’s Manual 3.6.6 Save & Exit 3.6.6.1 Save Changes and Reset Any changes made to BIOS settings are stored in NVRAM. The setup program then exits and reboots the controller. 3.6.6.2 Discard Changes and Reset Any changes made to BIOS settings during this session of the BIOS setup program are discarded. -
Page 44: Drivers Installation
EMX-H61B User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 44 EMX-H61B User’s Manual... -
Page 45: Install Chipset Driver
EMX-H61B User’s Manual 4.1 Install Chipset Driver Insert the Supporting DVD-ROM to DVD-ROM drive, click on “start” icon and it should show the index page of Avalue’s products automatically. If not, locate the folder HTML and choose the product from the targeted folder. -
Page 46: Install Vga Driver
EMX-H61B User’s Manual 4.2 Install VGA Driver Insert the Supporting DVD-ROM to DVD-ROM drive, click on “start” icon and it should show the index page of Avalue’s products automatically. If not, locate the folder HTML and choose the product from the targeted folder. -
Page 47: Install Lan Driver (For Realtek 8111E Gigabit Ethernet)
EMX-H61B User’s Manual 4.3 Install LAN Driver (For Realtek 8111E Gigabit Ethernet) Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left, or link to \Driver_Gigabit\Realtek\RTL8111E\EMX-H61B _LAN... -
Page 48: Install Me Driver
EMX-H61B User’s Manual 4.4 Install ME Driver Insert the Supporting DVD-ROM to DVD-ROM drive, click on “start” icon and it should show the index page of Avalue’s products automatically. If not, locate the folder HTML and choose the product from the targeted folder. - Page 49 EMX-H61B User’s Manual Step 7. Select Finish to complete installation EMX-H61B User’s Manual 49...
-
Page 50: Install Audio Driver (For Realtek Alc661 Hd Audio)
EMX-H61B User’s Manual 4.5 Install Audio Driver (For Realtek ALC661 HD Audio) Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left, or link to \Driver_Audio\EMX-H61B_Audio\R2.66 Note: The installation procedures and... -
Page 51: Mechanical Drawing
EMX-H61B User’s Manual 5. Mechanical Drawing EMX-H61B User’s Manual 51... - Page 52 EMX-H61B User’s Manual Unit: mm 52 EMX-H61B User’s Manual...
- Page 53 EMX-H61B User’s Manual Unit: mm EMX-H61B User’s Manual 53...
- Page 54 EMX-H61B User’s Manual Unit: mm 54 EMX-H61B User’s Manual...
